connection E1 between X8 and Eco server 4000 V10

Status
Not open for further replies.

Karmozdi

Technical User
Feb 18, 2019
117
US
Hi everybody
I have a question about the E1 connection between Ecoserver 4000 V10 and X8.
the call from 4000 to X8 are Ok but It is not possible from X8 to 4000.
with EQMA & ETSI protocols.
Please guide me, what kind of Protocol should I put?
Thanks a lot
----------------------------
ADD-TDCSU:OPT=NEW,PEN=1-01-012-0,COTNO=5,COPNO=5,DPLN=0,ITR=0,COS=5,LCOSV=1,LCOSD=1,CCT=" ",DESTNO=0,PROTVAR="ETSI",SEGMENT=8,DEDSVC=NONE,TRTBL=GDTR,SIDANI=N,ATNTYP=TIE,CBMATTR=NONE,TCHARG=N,SUPPRESS=0,TRACOUNT=10,SATCOUNT=MANY,ALARMNO=0,FIDX=1,CARRIER=1,ZONE=EMPTY,COTX=5,FWDX=5,CHIMAP=N,UUSCCX=16,UUSCCY=8,FNIDX=1,NWMUXTIM=10,CLASSMRK=EC&G711&G729AOPT,TGRP=5,SRCHMODE=CIR,INS=Y,SECLEVEL=TRADITIO,HMUSIC=0,CALLTIM=60,WARNTIM=60,DEV=S2CONN,BCHAN=1&&5,BCNEG=N,BCGR=1,LWPAR=2,LWPP=0,LWLT=0,LWPS=0,LWR1=0,LWR2=0;
----------------------------
CHANGE-LWPAR:TYPE=DIUS2,BLNO=2,LNTYPE=COPPER,VERSION=S2,QUAL=ON,MASTER=Y,DCHAN1=16,DCHAN2=0,PATTERN=D5,QUAL1=10,QUAL2=10,SMD=N,PERMACT=Y,FCBAB=DF,CDG=N,FIXEDTEI=0,CNTRNR=255,TEIVERIF=N,CRC4REP=N,DEV=INDEP;
--------

 https://files.engineering.com/getfile.aspx?folder=fcd712cb-f423-47a4-a2e7-814bf2752cf0&file=Screenshot_(1037).png
I need a trunk trace from X8.
It is necessary to understand
the reason for release.

I was ashamed, I had gone to lunch, I answered late.
God bless your family. I gave you a headache.
Sorry

here you are

COPY-PRODE:TYPE=PVCD,PVCDNO=1;
.........................
DIS-TDCSU:1-1-12-0;
H500: AMO TDCSU STARTED
+------------------------ DIGITAL TRUNK (FORMAT=L) -------------------------+
| DEV = S2CONN PEN = 1-01-012-0 TGRP = 5 |
|---------------------------------------------------------------------------|
| PROTVAR = ECMAV2 INS = Y SRCHMODE = CIR |
| COTNO = 5 COPNO = 5 DPLN = 0 |
| ITR = 0 COS = 5 LCOSV = 1 |
| LCOSD = 1 CCT = DESTNO = 0 |
| SEGMENT = 8 DEDSCC = DEDSVC = NONE |
| FACILITY = DITIDX = SRTIDX = |
| TRTBL = GDTR SIDANI = N ATNTYP = TIE |
| CBMATTR = NONE NWMUXTIM = 10 TCHARG = N |
| SUPPRESS = 0 DGTPR = CHIMAP = N |
| ISDNIP = ISDNNP = |
| PNPL2P = PNPL1P = PNPAC = |
| TRACOUNT = 10 SATCOUNT = MANY NNO = |
| ALARMNO = 0 FIDX = 1 CARRIER = 1 |
| ZONE = EMPTY COTX = 5 FWDX = 5 |
| DOMTYPE = DOMAINNO = TPROFNO = |
| INIGHT = CCHDL = |
| UUSCCX = 16 UUSCCY = 8 FNIDX = 1 |
| CLASSMRK = EC & G711 & G729AOPT SRCGRP = ( ) |
| TCCID = SECLEVEL = TRADITIO |
| HMUSIC = 0 CALLTIM = 60 WARNTIM = 60 |
|---------------------------------------------------------------------------|
| BCNEG = N BCGR = 1 LWPAR = 3 |
| LWPP = 0 LWLT = 0 LWPS = 0 |
| LWR1 = 0 LWR2 = 0 |
| SVCDOM = |
| BCHAN = 1 && 30 |
| |
+---------------------------------------------------------------------------+
AMOUNT OF B-CHANNELS IN THIS DISPLAY-OUTPUT: 30

Ok.
The number 1000 does not exist in the kds file that you sent.
Did you send the correct kds file?
Can I see a kds file with a real OSB?

You have problems in the OSBiz.

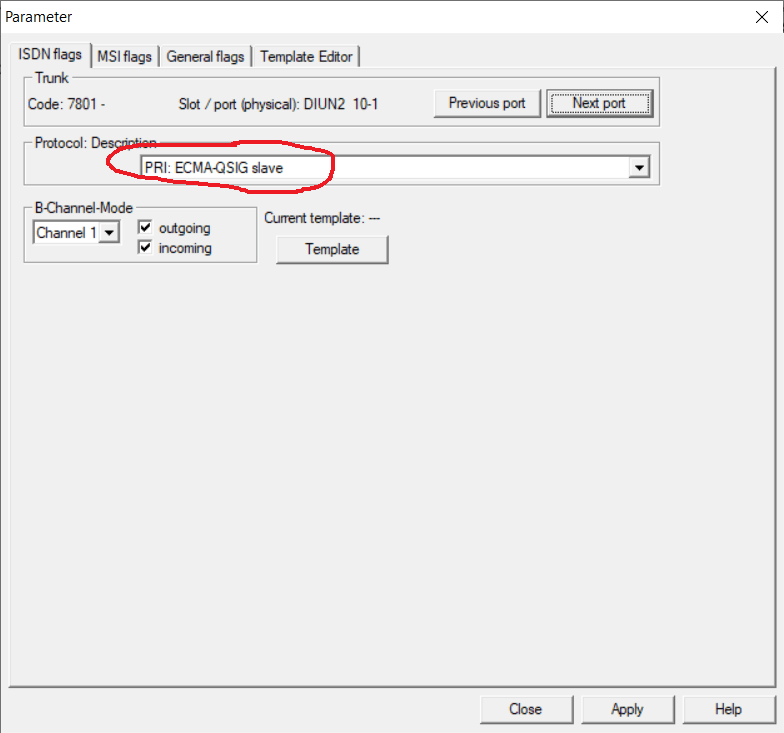

You need to change the QSIG protocol
as in the figure


When I activate the EQMA QSIG SLAVE protocol, it does not send any signal to 4K. Even the lights of two cards do not blink.
PSS1 and Cornet protocols only send signals,
but with protocol EQMA from 4K to phone X8 rings.

This log is outgoing Call from DIUN2 X8:

 https://files.engineering.com/getfile.aspx?folder=50e15b61-84c7-4f79-a1d1-2f0ea6eabf78&file=Outgoing_Call_From_E1_line.txt
I think the problem is in the DIUN2 board
for this OSB software version.
It needs to be replaced with DIUT2.
This is recommended by the manufacturer.

I put different types of DIUN2 modules. I also tested with 3800, 3550 and Hip 4000 V7 devices, it is exactly the same.
I will put DIUT2 modules tomorrow. I will let you know the result.
This problem is from the side of 4K V10, because none of them can contact V10.

Is it possible because of the license?
If the call is licensed, then why is the call made from 4K to X8!
This is my log License :
CODEWORD: CDY8DABGCW63CH739TB53WCX16S3M23ZNZ5M8DXZTXC5T1B14AG98EWCV2S9ZRN4
WEV14YWB51HA2992NLUVZFUMGPME4NXU67SJYSR9B9KET1VNXF2HVBW1U2
VERSION : H291
SERIAL NUMBER : 1
HARDWARE ID : FEF45F39
ENTRY DATE : 17.10.2023
VALID UNTIL : 16.11.2023
TRIAL MODE : NOT ACTIVATED
CONFIRMATION : 0
DUPLEX LICENSE: YES

+---------------------------------------------+-------+-------+-------+-------+
| | | | | |
| UNIT | CON- | USED | FREE |BLOCKED|
| | TRACT | | | |
+---------------------------------------------+-------+-------+-------+-------+
| OS4K V10 FLEX (VALID FOR IP AND TDM) | 12000 | 3 | 11997 | |
| OS4K V10 TDM (VALID FOR TDM ONLY) | 0 | 0 | 0 | |
| OS4K V10 OSMO | 12000 | 0 | 12000 | |
| OS4K V10 UNIFY PHONE | 0 | 0 | 0 | |
+---------------------------------------------+-------+-------+-------+-------+
H16: CURRENT CODEWORD IS A GRACE PERIOD CODEWORD.
H18: 3 TDM CONSUMES FLEX LICENSES.



 https://files.engineering.com/getfile.aspx?folder=caf099a4-7123-4a26-ae56-80a860d5f5a5&file=LASTLOAD.KDS
I don't see why this would be a problem with the DIU, you can see even in the X8 trace the 4K disconnects the call with reason 'Call Barred', I don't think you can blame the X8 DIU for that.
A missing node number in the 4K TDCSU can cause strange problems too, I would not leave that blank.

I have not worked with OS4K in grace mode.
I do not know what happens when working in grace period.

Grace period is OK - it does not stop anything from working correctly during the Grace period

I think it would be better if the trunk between the Siemens devices in this device is Cornet protocol.
But I could not select the protocol types.
God help me. If there is a cost, I will pay. I have been involved in this work for two weeks
