connection E1 between X8 and Eco server 4000 V10

Status
Not open for further replies.

Karmozdi

Technical User
Feb 18, 2019
120
US
Hi everybody
I have a question about the E1 connection between Ecoserver 4000 V10 and X8.
the call from 4000 to X8 are Ok but It is not possible from X8 to 4000.
with EQMA & ETSI protocols.
Please guide me, what kind of Protocol should I put?
Thanks a lot
----------------------------
ADD-TDCSU:OPT=NEW,PEN=1-01-012-0,COTNO=5,COPNO=5,DPLN=0,ITR=0,COS=5,LCOSV=1,LCOSD=1,CCT=" ",DESTNO=0,PROTVAR="ETSI",SEGMENT=8,DEDSVC=NONE,TRTBL=GDTR,SIDANI=N,ATNTYP=TIE,CBMATTR=NONE,TCHARG=N,SUPPRESS=0,TRACOUNT=10,SATCOUNT=MANY,ALARMNO=0,FIDX=1,CARRIER=1,ZONE=EMPTY,COTX=5,FWDX=5,CHIMAP=N,UUSCCX=16,UUSCCY=8,FNIDX=1,NWMUXTIM=10,CLASSMRK=EC&G711&G729AOPT,TGRP=5,SRCHMODE=CIR,INS=Y,SECLEVEL=TRADITIO,HMUSIC=0,CALLTIM=60,WARNTIM=60,DEV=S2CONN,BCHAN=1&&5,BCNEG=N,BCGR=1,LWPAR=2,LWPP=0,LWLT=0,LWPS=0,LWR1=0,LWR2=0;
----------------------------
CHANGE-LWPAR:TYPE=DIUS2,BLNO=2,LNTYPE=COPPER,VERSION=S2,QUAL=ON,MASTER=Y,DCHAN1=16,DCHAN2=0,PATTERN=D5,QUAL1=10,QUAL2=10,SMD=N,PERMACT=Y,FCBAB=DF,CDG=N,FIXEDTEI=0,CNTRNR=255,TEIVERIF=N,CRC4REP=N,DEV=INDEP;
--------

 https://files.engineering.com/getfile.aspx?folder=fcd712cb-f423-47a4-a2e7-814bf2752cf0&file=Screenshot_(1037).png

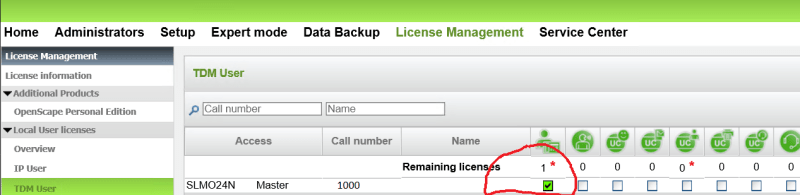

Do you have a 1000 subscriber license enabled?

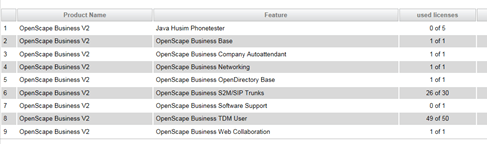

yes i have TDM . Networking and S2M B channel Licenses .All of them are active .I installed about 30
nglish

I have installed about 50 X8, 3800 and 4000 devices. I have never been bothered like this before. Whatever I do, it doesn't work. It is not possible to connect to 4K with different devices.
But instead of 4K, I use the Hip 4000 device and the call is established.

 https://files.engineering.com/getfile.aspx?folder=bfaa9117-35b3-460e-9261-1eb91ea79bd4&file=IMG_20231030_125013.jpg
Okay, I got it.
Please show me

DIS-BCSU:TBL,1,1;

There may be a problem with the DIUT2 board.



Yes, I replaced the card. I changed the slot.
I did everything, but I still have a connection problem.

DIS-BCSU:TBL,1,1;
H500: AMO BCSU STARTED

LTG 1 LTU 1 SRCGRP 1 ALARMNO-LTU 0
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
| | | |S|H|AL-|N| | |
| ASSIGNED | MODULE |FCT|E|W|ARM|P| INSERTED | HW- | MODULE
PEN | MODULE | TYPE |ID |C|Y|NO |R| MODULE |STATE INFO | STATUS
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
1 | Q2168-X SLMO24 1 0| | Q2168-X | 1 -10 - | READY
2 | AVAILABLE 0| | AVAILABLE | |
3 | AVAILABLE 0| | AVAILABLE | |
4 | AVAILABLE 0| | AVAILABLE | |
5 | Q2327-X101 TMANI-IM 0| | Q2327-X101 | 1 -10 - | READY
6 | AVAILABLE 0| | AVAILABLE | |
7 | Q2342-X LTUCR 0| | Q2342-X | 1 -04 - | READY
8 | AVAILABLE 0| | AVAILABLE | |
9 | AVAILABLE 0| | AVAILABLE | |
10 | AVAILABLE 0| | AVAILABLE | |
11 | AVAILABLE 0| | AVAILABLE | |
12 | Q2196-X DIU-N2 1 0| | Q2196-X | 1 -07 - | READY
13 | Q2196-X DIU-N2 1 0|*| | | NPR
14 | AVAILABLE 0| | AVAILABLE | |

AMO-BCSU -111 BOARD CONFIGURATION, SWITCHING UNIT
DISPLAY COMPLETED;

Yes, even when calling the DIUN2 LED card, both devices light up.

Should options such as DID or Node number or KNDEF be defined for incoming calls in OS 4K?
But I set the same settings in Hip 4000 and the call is established without giving the destination of the call in the DGTPR fiel.


Yes, even when calling the DIUN2 LED card, both devices will flash.

<REG-VFGR;
REG-VFGR;
H500: AMO VFGR STARTED
H09: PLEASE NOTE THAT PRIOLEV ENTRIES WITH DEFAULT VALUES ARE NOT REGENERATED.
USE DISPLAY VFGR TO QUERY SETTINGS.
..................
<dis-vfgr;
DIS-VFGR;
H500: AMO VFGR STARTED

AMO-VFGR -111 ATTENDANT CONSOLE GROUPS
DISPLAY COMPLETED;
<REG-NAVAR;
REG-NAVAR;
H500: AMO NAVAR STARTED

AMO-NAVAR-111 ADMINISTRATION OF STATIC NIGHT SWITCH OPTION DATA
REGENERATE COMPLETED;

Do this

ADD-NAVAR:7,NONE;
ADD-VFGR:0,DQ,,,,,,,,7,,7,,10,0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,OFF,NO,YES,NO,,0,OFF,NO;


<reg-navar;
REG-NAVAR;
H500: AMO NAVAR STARTED
ADD-NAVAR:NOPTNO=7,TYPE=NONE;

AMO-NAVAR-111 ADMINISTRATION OF STATIC NIGHT SWITCH OPTION DATA
REGENERATE COMPLETED;
<reg-vfgr;
REG-VFGR;
H500: AMO VFGR STARTED
ADD-VFGR:ATNDGR=0,QUEMODE=DQ,NOPT7=7,OPT=7,CQMAX=10,ITDEST=0&1&2&3&4&5&6&7&8&9&1
0&11&12&13&14&15,AUTNS=OFF,SDIST=NO,CASMCF=YES,ANSYN=NO,WC=0,COD=OFF,INIGHTPR=NO
;

The call cannot be made.
I was ashamed of you. I'm sorry
excuse me Dear

And if you do a set of 78014000 or
just 4000 on X8?
And if you do on OS4k a set dial
from 4000 to 4001, then does 4001 ring?

STN On X8= 1000
STN on 4K= 4000

Now I just decided to send the number 4000 to 4K, unfortunately it didn't work.
Of course, I also tested with access code 0 and disabled the LCR tick, but it didn't work

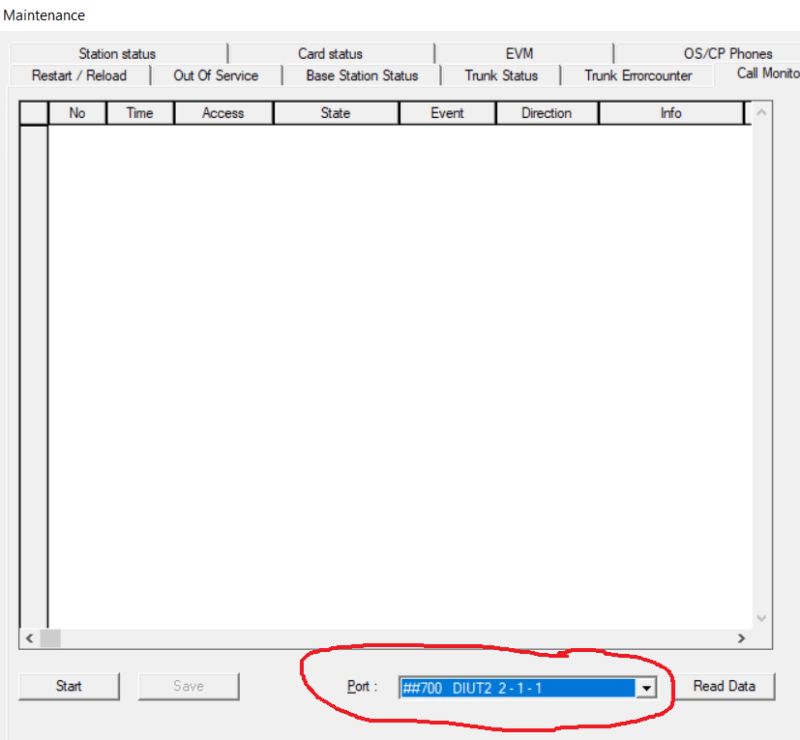

Press the START button.
And you need to call from the X8 1000 phone
dial only 4000 without dialing 0.
Do trunk trace like this and show me

DUIN must be 10-1-1


Internal calls between subscribers are established between 4K (4000&4001)
But from X8, I get any of these stations, there is a problem.
