SLMC Card is showing defect in OS4KV8

[eniyamath]

Hi friends
i am trying to configure SLMC card with CATool,but the cards are not become ready.

while configuring getting FILLEN errors and card come in active for 30 seconds and again shows DEFECT.

It is my first V8 installation and i have worked up to V7 configuring DECT.

Can any one guide me to resolve this issue.
Thanks



[sbcsu]

To check the loadware version you can go via the assistant
or comwin
STA-LIST:FILENAME="AS:HIM/PB",FORMAT=M,SEL=N,ANS=Y;
Please paste results here



[eniyamath]

Dear Sbcsu
i removed all the cards and i put only one card and see teh status below just for 10 to 20 seconds shows ready and goes to defect
DIS-BCSU:TBL,1,1,10;
H500: AMO BCSU STARTED

LTG 1 LTU 1 SRCGRP 1 ALARMNO-LTU 0
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
| | | |S|H|AL-|N| | |
| ASSIGNED | MODULE |FCT|E|W|ARM|P| INSERTED | HW- | MODULE
PEN | MODULE | TYPE |ID |C|Y|NO |R| MODULE |STATE INFO | STATUS
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
10 | Q2344-X SLMC 0| | Q2344-X | 1 -16 - | READY

AMO-BCSU -111 BOARD CONFIGURATION, SWITCHING UNIT
DISPLAY COMPLETED;
<DIS-BCSU:TBL,1,1,10;
DIS-BCSU:TBL,1,1,10;
H500: AMO BCSU STARTED

LTG 1 LTU 1 SRCGRP 1 ALARMNO-LTU 0
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
| | | |S|H|AL-|N| | |
| ASSIGNED | MODULE |FCT|E|W|ARM|P| INSERTED | HW- | MODULE
PEN | MODULE | TYPE |ID |C|Y|NO |R| MODULE |STATE INFO | STATUS
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
10 | Q2344-X SLMC 0| | Q2344-X | 1 -16 - | READY

AMO-BCSU -111 BOARD CONFIGURATION, SWITCHING UNIT
DISPLAY COMPLETED;
<DIS-BCSU:TBL,1,1,10;
DIS-BCSU:TBL,1,1,10;
H500: AMO BCSU STARTED

LTG 1 LTU 1 SRCGRP 1 ALARMNO-LTU 0
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
| | | |S|H|AL-|N| | |
| ASSIGNED | MODULE |FCT|E|W|ARM|P| INSERTED | HW- | MODULE
PEN | MODULE | TYPE |ID |C|Y|NO |R| MODULE |STATE INFO | STATUS
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
10 | Q2344-X SLMC 0| | Q2344-X | 1 -16 - | DEFECT

AMO-BCSU -111 BOARD CONFIGURATION, SWITCHING UNIT
DISPLAY COMPLETED;



[eniyamath]

<STA-LIST:FILENAME="AS:HIM/PB",FORMAT=M,SEL=N,ANS=Y;
STA-LIST:FILENAME="AS:HIM/PB",FORMAT=M,SEL=N,ANS=Y;
H500: AMO LIST STARTED
DEV NAME : PAS
FILE NAME: AS:HIM/PB
TYPE : RMX
ADDRESS : H'00000000'

01|001|1|BOARD INFO NOT VALID |--|------------------|
01|002|1|BOARD NOT EQUIPPED |--|------------------|
01|003|1|BOARD NOT EQUIPPED |--|------------------|
01|004|1|BOARD NOT EQUIPPED |--|------------------|
01|005|1|BOARD NOT EQUIPPED |--|------------------|
01|006|1|BOARD NOT EQUIPPED |--|------------------|
01|008|1|BOARD NOT LOADED |--|------------------|
01|009|1|BOARD NOT EQUIPPED |--|------------------|
01|010|1|DS:APSP/LTG/LG93/PZDSLCU4 |--|08/21/19 08:12:20|
01|011|1|BOARD NOT EQUIPPED |--|------------------|
01|012|1|BOARD NOT EQUIPPED |--|------------------|
01|013|1|BOARD NOT EQUIPPED |--|------------------|
01|014|1|BOARD NOT EQUIPPED |--|------------------|
01|007|1|DS:APSP/LTG/LGA0/PZKLTUR0 |--|07/25/18 16:24:15|
02|001|1|BOARD INFO NOT VALID |--|------------------|
02|002|1|BOARD NOT EQUIPPED |--|------------------|
02|003|1|BOARD NOT EQUIPPED |--|------------------|
02|004|1|BOARD NOT EQUIPPED |--|------------------|
02|005|1|BOARD NOT EQUIPPED |--|------------------|
02|006|1|BOARD NOT EQUIPPED |--|------------------|
02|008|1|BOARD NOT EQUIPPED |--|------------------|
02|009|1|BOARD NOT EQUIPPED |--|------------------|
02|010|1|BOARD NOT EQUIPPED |--|------------------|
02|011|1|BOARD NOT EQUIPPED |--|------------------|
02|012|1|BOARD NOT EQUIPPED |--|------------------|
02|013|1|BOARD NOT EQUIPPED |--|------------------|
02|014|1|BOARD NOT EQUIPPED |--|------------------|
02|007|1|DS:APSP/LTG/LGA0/PZKLTUR0 |--|07/25/18 16:24:15|
03|001|1|DS:APSP/LTG/LG98/PZKSTI40 |00|09/11/19 12:06:37|
03|002|1|BOARD NOT EQUIPPED |--|------------------|
03|003|1|BOARD NOT PRESENT |--|------------------|
03|004|1|BOARD NOT EQUIPPED |--|------------------|
03|005|1|BOARD NOT EQUIPPED |--|------------------|
03|006|1|BOARD NOT EQUIPPED |--|------------------|
03|008|1|BOARD NOT EQUIPPED |--|------------------|
03|009|1|BOARD NOT EQUIPPED |--|------------------|
03|010|1|BOARD NOT EQUIPPED |--|------------------|
03|011|1|BOARD NOT EQUIPPED |--|------------------|
03|012|1|BOARD NOT EQUIPPED |--|------------------|
03|013|1|BOARD NOT EQUIPPED |--|------------------|
03|014|1|BOARD NOT EQUIPPED |--|------------------|
03|007|1|DS:APSP/LTG/LGA0/PZKLTUR0 |--|07/25/18 16:24:15|
LIST FINISHED
STATUS = H'0000
AMO-LIST -111 LISTING OF FILES
START COMPLETED;



[sbcsu]

OK
If it was me....

I would delete the DECT Database fully from the system.

Start again - in other words.

Ensure that the System is patched up fully to latest releases.
On the Assistant Page it will show the versions

Add in the latest loadware and ensure that the affected cards are reloaded - also reload processors - one at a time if dual

Then start to add in the CAT database - it will add in the cards itself in it's output


Do you know if you have the latest loadware and rmx/assistant etc. ???



[sbcsu]

Looking again at the output above may have old loadware on those cards.

A version 8 reads
02|008|1|DS:APSP/LTG/LG93/PZDSLCU4 |--|05/24/19 10:23:55|

I don't have a V7 system with SLCU cards



[eniyamath]

Dear sbcsu

please find the attached load ware details send by service team Unify to load in the system.



[eniyamath]

Dear sbcsu
can you please send me th eoutput of slcb as below
REG-SLCB;
H500: AMO SLCB STARTED
CHANGE-SLCB:GAC,FILLEN,125;
CHANGE-SLCB:CDAC,FILLEN,1100;
CHANGE-SLCB:CDSC,FILLEN,125;
CHANGE-SLCB:CDDC,FILLEN,0;
CHANGE-SLCB:BSAC,FILLEN,0;
CHANGE-SLCB:BSSC,FILLEN,0;
CHANGE-SLCB:BSDC,FILLEN,0;
CHANGE-SLCBPAC,FILLEN,0;
CHANGE-SLCBPSC,FILLEN,0;
CHANGE-SLCBPDC,FILLEN,0;



[sbcsu]

You don't normally interact with the SLCB AMO - it is the CAT tool that does all of that.
An SLCB readout from one site will be different from another site.

Remove the database - start again - with the correct loadware.



[Moriendi]

Also, post output from this.

sta-list:"ds:apsp/ltg/lg93/pzdslcu4",,100,b;
sta-list:"ds:apsp/ltg/lga0/pzksgw50",,100,b;
sta-list:"ds:apsc/clw/cecortm0",,100,b;
dis-aps:,psgl,y*;



[eniyamath]

Dear Moriendi,

Please see below as you advised.

Thanks


STA-LIST:"DS:APSP/LTG/LG93/PZDSLCU4",,100,B;
H500: AMO LIST STARTED
DEV NAME : PDS
FILE NAME: DS:APSP/LTG/LG93/PZDSLCU4
TYPE : RMX
ADDRESS : H'00000000'

0000 :B2 28 C5 26 00 30 38 2F 32 31 2F 31 39 30 38 3A ²(Å&.08/21/1908:
0010 :31 32 3A 32 30 3C 3C 73 72 32 6F 6D 66 20 56 31 12:20<<sr2omf V1
0020 :2E 32 37 20 39 36 30 31 30 34 3E 3E 20 20 4F 4D .27 960104>> OM
0030 :46 20 43 72 65 61 6F 6D 65 2F 68 75 6E 79 00 00 F Creaome/huny..
0040 :00 00 0E 00 00 00 00 00 00 00 00 00 68 00 00 00 ............h...
0050 :00 00 00 00 98 C5 26 00 00 00 00 00 00 00 00 00 ....˜Å&.........
0060 :00 00 00 00 ....

LIST FINISHED
STATUS = H'0000
AMO-LIST -111 LISTING OF FILES
START COMPLETED;
<
<sta-list:"ds:apsp/ltg/lga0/pzksgw50",,100,b;
STA-LIST:"DS:APSP/LTG/LGA0/PZKSGW50",,100,B;
H500: AMO LIST STARTED
DEV NAME : PDS
FILE NAME: DS:APSP/LTG/LGA0/PZKSGW50
TYPE : RMX
ADDRESS : H'00000000'

0000 :B2 00 00 00 04 30 39 2F 31 30 2F 31 39 31 33 3A ²....09/10/1913:
0010 :33 36 3A 30 33 17 45 4C 46 3E 49 33 38 36 70 7A 36:03.ELF>I386pz
0020 :6B 73 67 77 35 30 2E 41 38 2E 30 31 34 00 00 00 ksgw50.A8.014...
0030 :00 00 30 00 0B DC 70 7A 6B 73 67 77 35 30 00 00 ..0..Üpzksgw50..
0040 :00 00 00 00 00 00 00 00 00 00 00 00 68 00 00 00 ............h...
0050 :00 00 00 00 F3 37 D5 07 00 00 00 00 00 00 00 00 ....ó7Õ.........
0060 :00 00 00 00 ....

LIST FINISHED
STATUS = H'0000
AMO-LIST -111 LISTING OF FILES
START COMPLETED;
<
<sta-list:"ds:apsc/clw/cecortm0",,100,b;
STA-LIST:"DS:APSC/CLW/CECORTM0",,100,B;
H500: AMO LIST STARTED
DEV NAME : PDS
FILE NAME: DS:APSC/CLW/CECORTM0
TYPE : RMX
ADDRESS : H'00000000'

0000 :B2 00 00 00 04 30 35 2F 33 31 2F 31 39 31 31 3A ²....05/31/1911:
0010 :32 31 3A 35 37 19 45 4C 46 3E 49 33 38 36 53 56 21:57.ELF>I386SV
0020 :4E 32 38 31 35 2D 6F 73 2E 61 30 2E 30 34 34 00 N2815-os.a0.044.
0030 :00 00 30 00 D3 9E 63 65 63 6F 72 74 6D 30 00 00 ..0.Óžcecortm0..
0040 :00 00 00 00 00 00 00 00 00 00 00 00 68 00 00 00 ............h...
0050 :00 00 00 00 41 0B 4F 01 00 00 00 00 00 00 00 00 ....A.O.........
0060 :00 00 00 00 ....

LIST FINISHED
STATUS = H'0000
AMO-LIST -111 LISTING OF FILES
START COMPLETED;

<dis-aps:,psgl,y*;
DIS-APS:,PSGL,Y*;
H500: AMO APS STARTED
ADINIT STARTED
PROGRAM SYSTEM : Y0-E50YC
VERSION NUMBER : E0
CORRECTION VERSION NUMBER : 001
PART NUMBER : P30252N5002BH2922|V8 R2.22.29
PROGRAM SYSTEM WITH CODE SUBSYSTEMS
INTERFACE VERSION:
PROGRAM SYSTEM DOES NOT CONTAIN ANY INTERFACE VERSIONS

DIR SUBSYSTEM | | OMF SUBSYSTEM
-----------------------+-+-----------------------
ZMITSC00.Y0-EM0.10.001 |*|ZMITSC00.Y7-PMT.10.001

PROGRAM SYSTEM : Y7-P5TYT
VERSION NUMBER : E0
CORRECTION VERSION NUMBER : 001
PART NUMBER : P30252N5000B00000|V8 R2.22.5
PROGRAM SYSTEM WITH TEXT SUBSYSTEMS
INTERFACE VERSION:
PROGRAM SYSTEM DOES NOT CONTAIN ANY INTERFACE VERSIONS

DIR SUBSYSTEM | | OMF SUBSYSTEM
-----------------------+-+-----------------------
ZMITSC00.Y7-PMT.10.001 | |ZMITSC00.Y7-PMT.10.001

ADINIT COMPLETED
STATUS = H'0000
AMO-APS -111 SOFTWARE LOAD UPGRADE
DISPLAY COMPLETED;



[Moriendi]

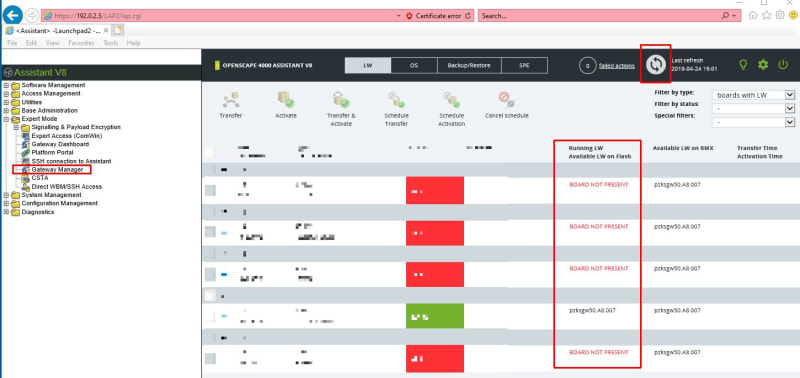

Loadwares are current but is that A8.14 actually loaded onto the enterprise gateway or is it just on the HD? What do you see if you browse to the shelf or check in gateway manager ?



[eniyamath]

Dear Moriendi

How to check this please explain me little more.

Thanks



[eniyamath]

Dear sbcsu/Moriendi

I generate delta first time to add the module slmc i am getting the following errors



CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=12,FORMAT=HEX,CMDARY=00-02;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=12,FORMAT=HEX,CMDARY=00-02;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (12) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=14,FORMAT=HEX,CMDARY=00-02;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=14,FORMAT=HEX,CMDARY=00-02;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (14) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=16,FORMAT=HEX,CMDARY=00-02;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=16,FORMAT=HEX,CMDARY=00-02;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (16) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=18,FORMAT=HEX,CMDARY=00-02;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=18,FORMAT=HEX,CMDARY=00-02;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (18) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=20,FORMAT=HEX,CMDARY=00-02;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=20,FORMAT=HEX,CMDARY=00-02;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (20) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<EXEC-SLCB:CTYPE=GAC,POS=12,LENGTH=10;
EXEC-SLCB:CTYPE=GAC,POS=12,LENGTH=10;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (12) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
EXEC NOT COMPLETED;



<CHA-SLCB:CTYPE=CDSC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=95,FORMAT=HEX,CMD
ARY=FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-F
F-FF-FF-FF-FF;
CHA-SLCB:CTYPE=CDSC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=95,FORMAT=HEX,
CMDARY=FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-
FF-FF-FF-FF-FF-FF;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (95) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=0,FORMAT=HEX,CMDA
RY=00-00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=0,FORMAT=HEX,
CMDARY=00-00;
H500: AMO SLCB STARTED
F03: POS (0) + LENGTH OF DATA ENTERED (2) > FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=2,FORMAT=HEX,CMDA
RY=00-01;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=2,FORMAT=HEX,
CMDARY=00-01;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (2) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=4,FORMAT=HEX,CMDA
RY=00-65;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=4,FORMAT=HEX,
CMDARY=00-65;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (4) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=6,FORMAT=HEX,CMDA
RY=00-01;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=6,FORMAT=HEX,
CMDARY=00-01;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (6) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=8,FORMAT=HEX,CMDA
RY=0B;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=8,FORMAT=HEX,
CMDARY=0B;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (8) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=30,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=30,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (30) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=31,FORMAT=HEX,CMD
ARY=00-00-00-07-09-09-08;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=31,FORMAT=HEX,
CMDARY=00-00-00-07-09-09-08;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (31) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=38,FORMAT=HEX,CMD
ARY=00-00-00-07-09-09-07;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=38,FORMAT=HEX,
CMDARY=00-00-00-07-09-09-07;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (38) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=45,FORMAT=HEX,CMD
ARY=0A;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=45,FORMAT=HEX,
CMDARY=0A;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (45) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=46,FORMAT=HEX,CMD
ARY=F0;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=46,FORMAT=HEX,
CMDARY=F0;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (46) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=47,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=47,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (47) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=48,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=48,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (48) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=49,FORMAT=HEX,CMD
ARY=01;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=49,FORMAT=HEX,
CMDARY=01;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (49) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=50,FORMAT=HEX,CMD
ARY=03;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=50,FORMAT=HEX,
CMDARY=03;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (50) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=51,FORMAT=HEX,CMD
ARY=04;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=51,FORMAT=HEX,
CMDARY=04;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (51) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=52,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=52,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (52) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=53,FORMAT=HEX,CMD
ARY=01;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=53,FORMAT=HEX,
CMDARY=01;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (53) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=54,FORMAT=HEX,CMD
ARY=01;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=54,FORMAT=HEX,
CMDARY=01;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (54) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=55,FORMAT=HEX,CMD
ARY=01;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=55,FORMAT=HEX,
CMDARY=01;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (55) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=56,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=56,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (56) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=57,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=57,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (57) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=58,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=58,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (58) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=59,FORMAT=HEX,CMD
ARY=FF;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=59,FORMAT=HEX,
CMDARY=FF;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (59) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=60,FORMAT=HEX,CMD
ARY=01;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=60,FORMAT=HEX,
CMDARY=01;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (60) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=959,FORMAT=HEX,CM
DARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=959,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (959) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=960,FORMAT=HEX,CM
DARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=960,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (960) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=963,FORMAT=HEX,CM
DARY=FF;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=963,FORMAT=HEX,
CMDARY=FF;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (963) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=966,FORMAT=HEX,CM
DARY=FE;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=966,FORMAT=HEX,
CMDARY=FE;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (966) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=967,FORMAT=HEX,CM
DARY=01-02-03-04-05-06-07-08-09-0A-FF-FF-FF-FF-FF;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=967,FORMAT=HEX,
CMDARY=01-02-03-04-05-06-07-08-09-0A-FF-FF-FF-FF-FF;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (967) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=982,FORMAT=HEX,CM
DARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=982,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (982) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=61,FORMAT=HEX,CMD
ARY=FF;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=61,FORMAT=HEX,
CMDARY=FF;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (61) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=62,FORMAT=HEX,CMD
ARY=01-00-00-00-00-00-00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=62,FORMAT=HEX,
CMDARY=01-00-00-00-00-00-00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (62) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=69,FORMAT=HEX,CMD
ARY=00-08;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=69,FORMAT=HEX,
CMDARY=00-08;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (69) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=95,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=95,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (95) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=96,FORMAT=HEX,CMD
ARY=FF;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=96,FORMAT=HEX,
CMDARY=FF;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (96) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=97,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=97,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (97) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=98,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=98,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (98) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=99,FORMAT=HEX,CMD
ARY=00;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=99,FORMAT=HEX,
CMDARY=00;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (99) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=100,FORMAT=HEX,CM
DARY=FF;
CHA-SLCB:CTYPE=CDAC,TYPE=DATA,TRANSFER=NO,LTU=1,SLOT=10,POS=100,FORMAT=HEX,
CMDARY=FF;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (100) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;


<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=22,FORMAT=HEX,CMDARY=00-01;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=22,FORMAT=HEX,CMDARY=00-01;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (22) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=24,FORMAT=HEX,CMDARY=FD-FF-FD-FF
-FD-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=24,FORMAT=HEX,
CMDARY=FD-FF-FD-FF-FD-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (24) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=42,FORMAT=HEX,CMDARY=01;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=42,FORMAT=HEX,CMDARY=01;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (42) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=43,FORMAT=HEX,CMDARY=0B;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=43,FORMAT=HEX,CMDARY=0B;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (43) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=44,FORMAT=HEX,CMDARY=00-65;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=44,FORMAT=HEX,CMDARY=00-65;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (44) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=46,FORMAT=HEX,CMDARY=00-01;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=46,FORMAT=HEX,CMDARY=00-01;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (46) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=48,FORMAT=HEX,CMDARY=FF-FF-FF-FF
-FF-FF-07-09-09-05-02-04;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=48,FORMAT=HEX,
CMDARY=FF-FF-FF-FF-FF-FF-07-09-09-05-02-04;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (48) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=60,FORMAT=HEX,CMDARY=FE-FF-FE-FF
-FE-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF;
CHA-SLCB:CTYPE=GAC,TYPE=DATA,TRANSFER=NO,POS=60,FORMAT=HEX,
CMDARY=FE-FF-FE-FF-FE-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF-FF;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (60) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
CHANGE NOT COMPLETED;
<EXEC-SLCB:CTYPE=GAC,POS=22,LENGTH=56;
EXEC-SLCB:CTYPE=GAC,POS=22,LENGTH=56;
H500: AMO SLCB STARTED
F09: THE ENTERED POS (22) IS GREATER THAN FILLEN (0).

AMO-SLCB -111 SLCB - ADMINISTRATION OF SLC BOARD DATA
EXEC NOT COMPLETED;
<CHANGE-ZAND:TYPE=LOADWARE,LWTYPE="SLC2",LWVAR=7;
CHANGE-ZAND:TYPE=LOADWARE,LWTYPE="SLC2",LWVAR=7;
H500: AMO ZAND STARTED
F16: NO MODULE EXISTS FOR LOADWARE SLC2 7.

AMO-ZAND -111 SYSTEM DATA
CHANGE NOT COMPLETED;



[Moriendi]

Check that loadware is on the EntGW - browse/login to the IP of the EntGW, you will see the running loadware at the bottom right. Paste a screenshot if you like.



[eniyamath]

Please see the attached snapshot of the dash board



[Moriendi]

Browse to the shelf itself, that screenshot tells you nothing.

Or use the Gateway Manager on the Assistant, but you'd have to refresh board list to be sure it was correct.

Easier to just browse to the shelf IP.



[eniyamath]

how to browse the shelp please explain me little more



[eniyamath]

is the EIC System ID is must or we can use any other customer code



[Moriendi]

You can use other customer codes but generally wouldn't. It's not the cause of your issue anyway. I would leave that alone.

dis-bcsu for the 4K. Get the vNCUI address for the shelf where you are adding the SLMC. Browse to that IP with a browser, login, at the bottom right you can see the running loadware.

You can do this also from Gateway Manager in Assistant, Expert Access, Gateway Manager. But you will need to refresh board list first, (top right of the GUI, last refresh).

Latest loadware is important for Enterprise Gateway but it won't help with the SLCB commands which failed. You are doing something wrong for sure. If you have a running cordless already and don't want to start again, make a fresh upload to CAT and delete only these problematic SLMC, run that delete macro, then re-add one.

But check that running loadware.



[Moriendi]

Go to Gateway Manager, click refresh, check the running loadware on the vNCUI for the shelf where you are adding the SLMC.
