SLMC Card is showing defect in OS4KV8

[eniyamath]

Hi friends
i am trying to configure SLMC card with CATool,but the cards are not become ready.

while configuring getting FILLEN errors and card come in active for 30 seconds and again shows DEFECT.

It is my first V8 installation and i have worked up to V7 configuring DECT.

Can any one guide me to resolve this issue.
Thanks



[sbcsu]

Ensure you have the latest CAT tool and the latest Comwin - both on

https://hipath.tonidoid.com

Failing that show screenshots of the pages on CAT that you have configured.



[eniyamath]

what is login password



[eniyamath]

Using the latest Catool downloaded from portal
V7R0.43.0



[sbcsu]

What 'login password' ??

faq965-7883



[sbcsu]

Do a fresh download
Show screenshots



[eniyamath]

What is the parameter FILLEN in SLCB



[sbcsu]

That depends - it was an old error
Please
Do a fresh download
Show screenshots



[thepfy]

Unify and Telent had lots of issues getting our SLMC card up and working.
There are a number of patches required on V7. Don't know if they are reuqired on V8.



[eniyamath]

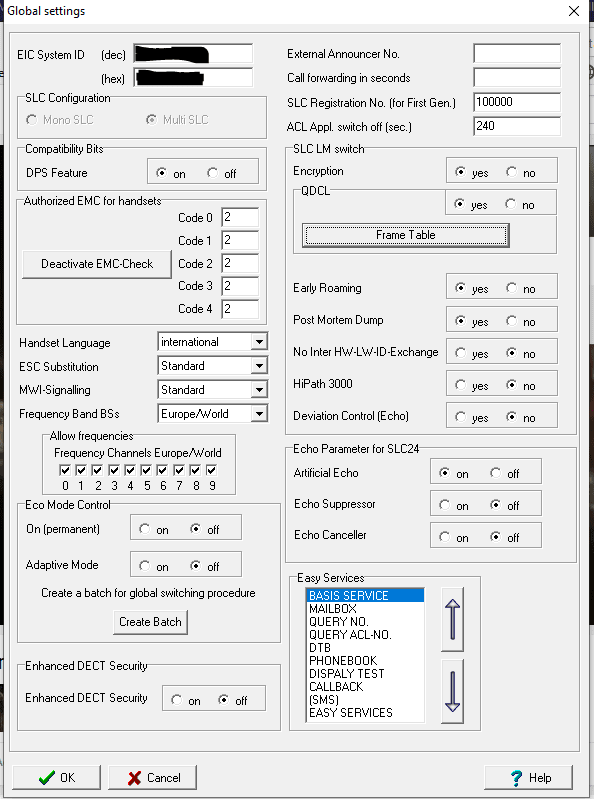

Screen shots attached

and also where can i find the LW CV707 find in portal

The problem was already reported and for it was already opened the JIRA ticket-CMI-20-ERROR IN HDLC COMPONENT 0224 by restart.
The effect of this is related with these unwanted advisories which comes from 1 hour and 1 minute again and again and this occur because the update of the date/hour on the CMI devices is not done properly, but nothing else related with the functionality of the CMI system

Solution
[highlight #CC0000]SLMC loadware CV707 contains the correction for this problem. Please install it on the system.
[/highlight]



[sbcsu]

All systems should be updated to latest patches and loadware even if you do not have any issues!
It would be like getting a PC/Laptop and not putting on Microsoft updates for lets say Windows 7.

I note some other anomalies on your setup - one being no encryption enabled.

Please see some examples here:



[sbcsu]

To update loadware - download the relevant loadware version from Unify.
Open a Comwin connection
File transfer it to the correct area
Reload the relevant cards/processors that have been given new loadware



[eniyamath]

Dear Sbcsu
i updated all the loadwares to latest one.
Have you seen what i attached files of configuration.
Thanks



[eniyamath]

Dear sbcsu

can you please did-zand for loadware



[eniyamath]

DIS-BCSU:TBL,1,1,8;
H500: AMO BCSU STARTED

LTG 1 LTU 1 SRCGRP 1 ALARMNO-LTU 0
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
| | | |S|H|AL-|N| | |
| ASSIGNED | MODULE |FCT|E|W|ARM|P| INSERTED | HW- | MODULE
PEN | MODULE | TYPE |ID |C|Y|NO |R| MODULE |STATE INFO | STATUS
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
8 | Q2344-X SLMC 0| | Q2344-X | 1 -16 - | DEFECT

AMO-BCSU -111 BOARD CONFIGURATION, SWITCHING UNIT
DISPLAY COMPLETED;

DIS-ZAND:LOADWARE;
H500: AMO ZAND STARTED
LOADWARE FOR ASSIGNED STATION LINE MODULES AND SIUC:
====================================================
SSIU = 0, CONF = 0, LTUR = 0, SGW5 = 0, SLCU = 4, STI4 = 0;

AMO-ZAND -111 SYSTEM DATA
DISPLAY COMPLETED;
<



[eniyamath]

dear sbcsu

show me your catool version

thanks



[eniyamath]

Dear Sbcsu

after updated the load wares the slmc cards are not come up it shows defect.

DIS-BCSU:TBL,1,1,8;
H500: AMO BCSU STARTED

LTG 1 LTU 1 SRCGRP 1 ALARMNO-LTU 0
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
| | | |S|H|AL-|N| | |
| ASSIGNED | MODULE |FCT|E|W|ARM|P| INSERTED | HW- | MODULE
PEN | MODULE | TYPE |ID |C|Y|NO |R| MODULE |STATE INFO | STATUS
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
8 | Q2344-X SLMC 0| | Q2344-X | 1 -16 - | DEFECT

AMO-BCSU -111 BOARD CONFIGURATION, SWITCHING UNIT
DISPLAY COMPLETED;
<DIS-BCSU:TBL,1,1,10;
DIS-BCSU:TBL,1,1,10;
H500: AMO BCSU STARTED

LTG 1 LTU 1 SRCGRP 1 ALARMNO-LTU 0
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
| | | |S|H|AL-|N| | |
| ASSIGNED | MODULE |FCT|E|W|ARM|P| INSERTED | HW- | MODULE
PEN | MODULE | TYPE |ID |C|Y|NO |R| MODULE |STATE INFO | STATUS
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
10 | Q2344-X SLMC 0| | Q2344-X | 1 -16 - | DEFECT

AMO-BCSU -111 BOARD CONFIGURATION, SWITCHING UNIT
DISPLAY COMPLETED;





F5719 E8 N0226 NO ACT BPA TERM CMI ERROR 20-01-14 15:08:34
ALARM CLASS:CENTRAL:002
** :LTG1 :LTU1 :008: 00 : 0 Q2344-X SLMC BST:01 PLS:-16
FORMAT:43
REASON:00H MAJOR ERROR IN IWU (PABX) DATABASE
CMI ERROR DATA:
5F0000010D010180000111FFFF000400 0102FFFFFFFFFFFFFFFFFFFFFFFFFFFF
F5870 E8 N0245 OUT SERV BPA BOARD LW EXCEPTION 20-01-14 15:57:17
ALARM CLASS:SWU-PER:002
** :LTG1 :LTU1 :008: 00 : 0 Q2344-X SLMC BST:01 PLS:-16
FORMAT:43
REASON:0DH NECESSARY HARDWARE RESPONSE FAILED
7E0D120000000000000000E000000000 03010102FFFFFFFFFFFFFFFFFFFFFFFF



[sbcsu]

I find that this normally sorts things out.

Remove ALL DECT cards from the system.

Put in the 1st Card - wait until it is solid Green -
Insert 2nd Card - repeat



[sbcsu]



[sbcsu]

This is Version 7
DIS-ZAND:LOADWARE;
H500: AMO ZAND STARTED
LOADWARE FOR ASSIGNED STATION LINE MODULES AND SIUC:
====================================================
SSIU = 0, CONF = 0, LTUX = 0, DUN2 = 0, STI4 = 0, SLA2 = 0,
SMO1 = 0, STM3 = 0, TM2L = 0, WAML = 0, MOM4 = 0, SLC2 = 7,
LTUR = 0;

This is Version 8
DIS-ZAND:LOADWARE;
H500: AMO ZAND STARTED
LOADWARE FOR ASSIGNED STATION LINE MODULES AND SIUC:
====================================================
SSIU = 0, CONF = 0, LTUR = 0, DUE1 = 0, TMAN = 0, STM3 = 0,
SLAV = 0, SMO4 = 0, STI4 = 0, SLCU = 4;
