Valcom V-2003A - No Tone when paging

[dsm600rr]

Hello all,

We have a Valcom V-2003A going to some Valcom Lay-In Ceiling Speakers and when we page, I hear a double tone in the headset, however nothing from the speakers themselves indicating someone is going to be paging.

Is this an issue with the V-2003A? Programming issues with the IPO?

ACSS



[TouchToneTommy]

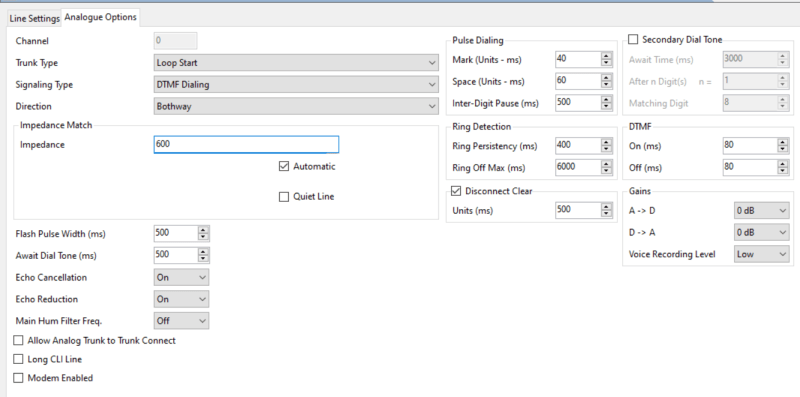

On the line, go to the Analog Options tab. Set the Await Dial Tone (ms) timer to 500

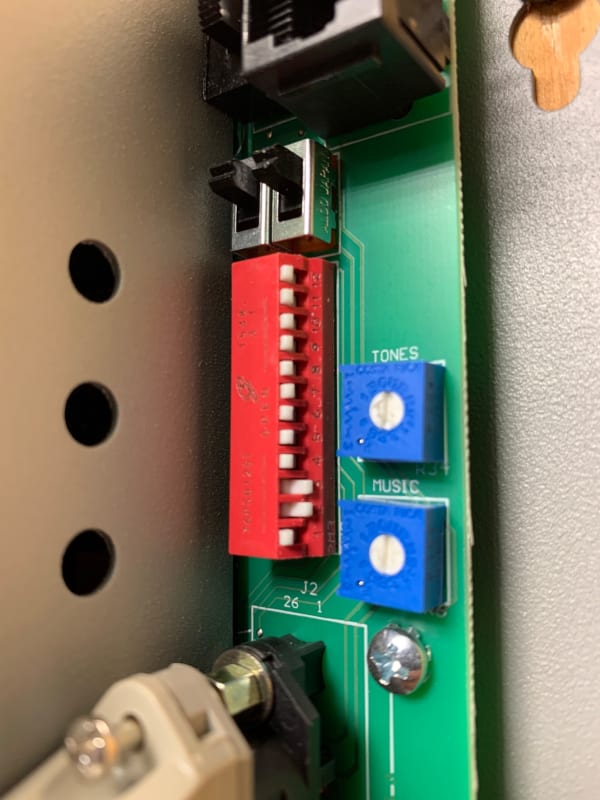

On the Valcom, DIP switch bank SW3, switchs 2 and 3 should be set to ON so that it provides dial tone and ringback (confirmation) tone to the pbx.

Test with a buttset on the Wht/Blu pair, bypassing the IPO



[budbyrd]

What is the number you are dialing for? A 2003 is sort of useless if you aren't going to pick a zone. The 2003 may also not be giving a dial tone because of the dialed digits.


Dermis and feline can be divorced by manifold methods.*
*(Disclaimer for all advise given)--'Version Dependent'



[dsm600rr]

TouchToneTommy: Thank you. I tried that and still no tones

ACSS



[dsm600rr]

Update, called Valcom - This unit does not play a tone overhead before you say your page. Only in the phone handset.

ACSS
