Rls 11 SIP URI help

Status
Not open for further replies.

Trason806

Technical User
Sep 18, 2009
119
US
the SIP line URI changed with rls 11. Does anyone have a good guild that explains what all these options do now?

i need to push the contact field of the user sip tab.

on rls 9.1 i had the URI like this:
Local URI --- *
Contact --- use internal data
Display name --- *

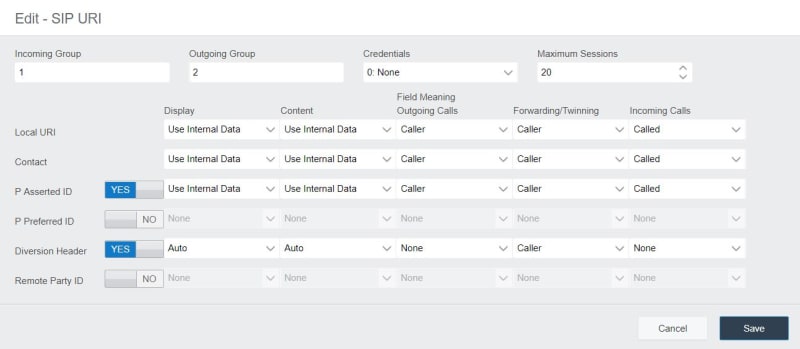

This is how I do it





| ACSS SME |

That is not working for me. What i need to do is change the "contact" sip header. i assume that what i need to change is the "content - contact" drop down.

The help says the options are
Auto: Use the number that IP Office is using to make the call as the From field. The number will be aligned with IP Office internal numbering schema. --- this ends up pushing the 4 digit ext of the user.

Use Internal Data: Use the value User | SIP | Display Name (Alias) for the user making the call. --- this pushes the (User|SIP|Name) of the user (not User|SIP|Display Name). so the help is wrong.

i don't see an option to change the contact sip header to the (user|sip|contact)

i am using 11.0.4.1.0 build 11
but i had the same issue with 11.0.4.0
