Problem of outgoing call , external call, TMANI .

Status
Not open for further replies.

OKACHA

IS-IT--Management
Sep 22, 2017
43
DZ
hello;
I have a hipath4000 in duplex with TMANI Q2327-X100 card . I have problem with outgoing call ; when I dial an external number (Ex: 0-xxxxxxxxx ) and after few second I have external line Tone (central office) and the call isn't setup. this issue is done from time to time (1 call from 3) and in all buend . this is some regen command for any help .

ADD -TACSU: 1-1-31-3, ,140,140, 0, 0, 8, 1, 1,
, 1, 0,"LIGNE STAND ",
0, 1-1-99, 2,1,EMPTY,10,
NONE, NONE, 0,EC &G711&G729AOPT,
" ", 0, GDTR,
0, , 0,Y ,TC ,TMANIMSG,
0, 3999,0,0, 1,11, 1, 0, DTMF-DTMF , 0-0 , 0,
;
REGENERATE-LDPLN:;
REGENERATE-LDPLN:;
H500: AMO LDPLN STARTED
ADD-LDPLN:LCRPATT,0,0-00-X,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
10,
,,,N;
ADD-LDPLN:LCRPATT,0,0-0-Z,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
1,
,,,N;
ADD-LDPLN:LCRPATT,0,0-1-Z,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
1,
,,,N;
ADD-LDPLN:LCRPATT,0,0-2-XXXXXXX,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
2,
,,,N;
ADD-LDPLN:LCRPATT,0,0-3-XXXXXXX,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
3,
,,,N;
ADD-LDPLN:LCRPATT,0,0-4-XXXXXXX,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
4,
,,,N;
ADD-LDPLN:LCRPATT,0,0-5-XXXXXXXX,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
5,
,,,N;
ADD-LDPLN:LCRPATT,0,0-6-XXXXXXXX,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
6,
,,,N;
ADD-LDPLN:LCRPATT,0,0-7-XXXXXXXX,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
7,
,,,N;
ADD-LDPLN:LCRPATT,0,0-9-Z,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
9,
10,,,N;
ADD-LDPLN:LCRPATT,0,0-XXXX,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
1

,,,
1,
,,,N;
ADD-LDPLN:LCRPATT,0,60-X,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
3

,,,
1,
,,,N;
ADD-LDPLN:LCRPATT,0,66-XX,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
33

,,,
1,
,,,N;
ADD-LDPLN:LCRPATT,0,70-X,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
2

,,,
1,
,,,N;
ADD-LDPLN:LCRPATT,0,72-X,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
4

,,,
1,
,,,N;
ADD-LDPLN:LCRPATT,0,77-XXXX,
0&1&2&3&4&5&6&7&8&9&10&11&12&13&14&15,
100

,,,
1,
,,,N;

<DISPLAY-PTIME:TYPE=REST,DEV=TMANIMSG;
DISPLAY-PTIME:TYPE=REST,DEV=TMANIMSG;
H500: AMO PTIME STARTED
REST TIMERS:
=============

INIBLOCK: 119 DEVICE: TMANIMSG TBLK: 11
----------------------------------------------------------------
LONGTIME:
L1 = 200, L2 = 10000, L3 = 100, L4 = 400,
L5 = 400, L6 = 120, L7 = 5000,
SHORTTIME:
S1 = 40, S2 = 90, S3 = 0, S4 = 0,
S5 = 0, S6 = 0, S7 = 10, S8 = 1,
S9 = 0, S10 = 2, S11 = 2, S12 = 0,
S13 = 0, S14 = 36,
SHORT-PARA:
P1 = 16, P2 = 18, P3 = 0, P4 = 0,
P5 = 140, P6 = 0, P7 = 0, P8 = 2,
P9 = 0, P10 = 0, P11 = 0, P12 = 0,
P13 = 0, P14 = 1.

INIBLOCK: 119 DEVICE: TMANIMSG TBLK: 13
----------------------------------------------------------------
LONGTIME:
L1 = 200, L2 = 10000, L3 = 100, L4 = 400,
L5 = 400, L6 = 120, L7 = 5000,
SHORTTIME:
S1 = 40, S2 = 90, S3 = 0, S4 = 0,
S5 = 0, S6 = 0, S7 = 10, S8 = 1,
S9 = 0, S10 = 2, S11 = 2, S12 = 0,
S13 = 0, S14 = 36,
SHORT-PARA:
P1 = 16, P2 = 18, P3 = 0, P4 = 0,
P5 = 140, P6 = 97, P7 = 0, P8 = 2,
P9 = 0, P10 = 0, P11 = 0, P12 = 0,
P13 = 0, P14 = 0.

INIBLOCK: 119 DEVICE: TMANIMSG TBLK: 16
----------------------------------------------------------------
LONGTIME:
L1 = 200, L2 = 10000, L3 = 100, L4 = 400,
L5 = 400, L6 = 120, L7 = 5000,
SHORTTIME:
S1 = 40, S2 = 90, S3 = 0, S4 = 0,
S5 = 0, S6 = 0, S7 = 10, S8 = 1,
S9 = 0, S10 = 2, S11 = 2, S12 = 0,
S13 = 0, S14 = 36,
SHORT-PARA:
P1 = 16, P2 = 18, P3 = 0, P4 = 0,
P5 = 140, P6 = 64, P7 = 0, P8 = 2,
P9 = 0, P10 = 0, P11 = 0, P12 = 0,
P13 = 0, P14 = 1.

Can you test the trunks using a test phone - directly across the trunks without the phone system.

HI SBCSU;
i HAD TESTED WITH A DIRECT PHONE THERE IS NO PROBLEME. I HAD TEST A TRUNK WITH AN OXO ANALOG LINE CONNECTED TO MY HIPATH, SAME PROBLEM

What digits dial you, exactly? 3 first digits.
Please show
REG-COP:140;
REG-COT:140;
DIA-LDAT:ALL,1,ALL;
and
REG-LODR:<number from LDAT>;

Also before you paste here please
CHA-FUNCT:REGIN=Y;

thanks for your replay Mr masviss and Mr sbcsu

the problem is when i dial any three digit (EX : 021, 027, 0671, 070, ), i'm in algeria numbring plan 9 digit for local call ( 2~4 fixed network an 5~7 mobile networt) this is the required command :
COP
ADD-COP:140,DTMF&SFRM&RLSA&BR64&COCN&TDED&NO1A&DITW&TIM1&NSDL&IDP2&DTM1,,,,;
CHANGE-COP:140,COPADD,,,,INDEP,"TMANI-DTMF-DIRECT";
COT
ADD-COT:140,XFER&CHRT&CEOC&CEBC&DPRE&ICZL&ICZO&CDRD&NRBA&NRAA&TWDS&NCT&NTON,,;
CHANGE-COT:140,COTADD,,INDEP,"TMANI-DTMF-DIRECT";
LDAT
DIS-LDAT:ALL,1,ALL;
H500: AMO LDAT STARTED
+------------------------------------------------------------------------------+
| LROUTE = 1 LDPLN NAME = LIGNES RX AT SERVICE = ALL |
| TYPE = LCR DNNO OF ROUTE = 1 -1 -99 |
| SERVICE INFO = |
+------+-----+-----+----+-----+----------+-----------+----------+------+-------+
| | | | | | SCHEDULE | CARRIER | | | |
|LRTEL | LVAL|TGRP | ODR|LAUTH| ABCDEFGH | ZONE| LATTR | LDSRT|COTIDX |
+------+-----+-----+----+-----+----------+-----------+----------+------+-------+
| 1| 1| 11| 11|31 | ******** | 1 EMPTY| WCHREG | | 0 |
| | DNNO = 102 |
+------------------------------------------------------------------------------+
| 2| 1| 1| 11|11 | ******** | 1 EMPTY| WCHREG | | 0 |
| | DNNO = 102 |
+------------------------------------------------------------------------------+
| 3| 2| 13| 11|33 | ******** | 1 EMPTY| WCHREG | | 0 |
| | DNNO = 102 |
+------------------------------------------------------------------------------+
| 4| 2| 12| 11|32 | ******** | 1 EMPTY| WCHREG | | 0 |
| | DNNO = 102 |
+------------------------------------------------------------------------------+
| 5| 3| 14| 11|34 | ******** | 1 EMPTY| WCHREG | | 0 |
| | DNNO = 102 |
+------------------------------------------------------------------------------+
| 6| 4| 9| 11|38 | ******** | 1 EMPTY| WCHREG | | 0 |
| | DNNO = 102 |
+------------------------------------------------------------------------------+
| 7| 5| 8| 11|37 | ******** | 1 EMPTY| WCHREG | | 0 |
| | DNNO = 102 |
+------------------------------------------------------------------------------+
| 8| 5| 5| 11|17 | ******** | 1 EMPTY| WCHREG | | 0 |
| | DNNO = 102 |
+------------------------------------------------------------------------------+
| 9| 5| 4| 11|35 | ******** | 1 EMPTY| WCHREG | | 0 |
| | DNNO = 102 |
+------------------------------------------------------------------------------+
ODR 1 IS USED FOR LRTE 1
REG-LODR:1;
H500: AMO LODR STARTED
ADD-LODR:1,,,,OUTPULSE,0;
ADD-LODR:1,,,,ECHO,2;
ADD-LODR:1,,,,ECHO,3;
ADD-LODR:1,,,,END;

BY THE WAY I TRIED OTHER CONFIG WITH TIE 72 ODR 2


ADD-LODR:2,,,,ECHO,2;
ADD-LODR:2,,,,END;

THE TRUNK WITH TIE 72 IS CONNECTED TO AN OXO ALCATEL PBX BUT THE SAME PROBLEME

MR SBCSU THIS IS THe COMMAND THAT YOU ASKED FOR

<CHA-FUNCT:REGIN=Y;
CHA-FUNCT:REGIN=Y;
H500: AMO FUNCT STARTED

AMO-FUNCT-111 SYSTEM SWITCHES
CHANGE COMPLETED;
<

thanks again
best regards Okacha

This is DISPLAY-FUNCT:

<DISPLAY-FUNCT:;
DISPLAY-FUNCT:;
H500: AMO FUNCT STARTED
(CMDECHO) -COMMAND ECHO ..................................ON
(AMOOK ) -AMO PERFORMANCE DISPLAY .......................ON
(AMOHDR ) -AMO PROTOCOL HEADER DISPLAY ...................ON
(SUSY ) -UBGDAT SUBSYSTEM SWITCH IN SIT ................OFF
(RTOADS ) -ADS ROUTINE TEST SWITCH .......................ON
(RTOTFS ) -TFS ROUTINE TEST SWITCH .......................NPR
(RTOVMS ) -VMS ROUTINE TEST SWITCH .......................NPR
(LANG ) -AMO TEXT LANGUAGE .............................ENGLISH
(SLANG ) -SESSION SPECIFIC AMO TEXT LANGUAGE ............ENGLISH
(SPLIT ) -SPLITTING MODE SWITCH .........................OFF
(RETENT ) -XENIX RETENTION TIME IN SECONDS ...............10
(POWERSYS)-TYPE OF POWER SYSTEM ..........................ACDCWOR
(PFI ) -USE OF PFI IN POWER SYSTEM.....................WITHPFI
(SS7CTR ) -TYPE OF SS7 CONTROLLER.........................NO
(REGIN ) -REGEN OUTPUT INPUT USABLE .....................Y
(REGKEY ) -REGEN OUTPUT DISPLAY CONTAINING KEYWORDS ......N
(REGLEN ) -REGEN OUTPUT LENGTH FOR MAX. INPUT LENGTH .....N
(LOGBKOFF)-SWITCH OFF LOGGING ............................3 4 6
(CONFREST)-SUPRESS CONFIRMATION OF RESTART EXECUTION......ON

AMO-FUNCT-111 SYSTEM SWITCHES
DISPLAY COMPLETED;

<REG-LODR:11;
REG-LODR:11;
H500: AMO LODR STARTED
ADD-LODR:11,,,,ECHO,1;
ADD-LODR:11,,,,ECHO,2;
ADD-LODR:11,,,,ECHO,3;
ADD-LODR:11,,,,END;

You have the problem in COP.
For DTMF dial you must have DTMF&DTM1&TIM1
For DP dial you must have BR64&IDP2&TIM1
You have it in one COP. This is no good.
If all lines use the DTMF set then you can
delete the parameters BR64&IDP2
For example
CHA-COP:140,COPDEL,BR64&IDP2;
Or you will do COP for DTMF and for DP
Show me
DIS-BUEND:11;
DIS-BUEND:1;
DIS-BUEND:13;
DIS-BUEND:12;
DIS-BUEND:14;

You have combined several lines in one Richt, and when you dial a number several times, you get on different lines. To properly solve this problem, you need to use LPROF. But it will be difficult for me to explain it to you. For a simpler solution, you need to split the line access using LCOSV.You understand how to do it because it is not easy. It is difficult to help you on the forum.

<DIS-BUEND:11;
DIS-BUEND:11;
H500: AMO BUEND STARTED

+------------------------------- FORMAT = L -----------------------------------+
| TGRP NUMBER : 11 TGRP NAME : LIGNE PRIVEE MAXIMUM NO. : 1 |
| CHARCON : NEUTRAL |
| SUBGROUP NO.: 11 DEVICE TYPE : TMANIMSG TRACENO : 0 |
| SEARCH MODE : CIRCULAR ACD THRESHOLD : * |
| NUMBER OF ASSOCIATED ROUTES : 1 PRIORITY : 1 |
| TDDRFLAG : ON TDDRTHRESHOLD: 0 SOURCEGROUPIDX : 1 |
| GDTRRULE : 0 ACDPMGRP : 0 |
| THE FOLLOWING TRUNKS (LTG-LTU-SLOT-CCT) HAVE BEEN ALLOCATED: |
+------------------------------------------------------------------------------+
| 1- 4- 91-0 | | | | |
+------------------------------------------------------------------------------+

AMO-BUEND-111 TRUNK GROUP
DISPLAY COMPLETED;
<DIS-BUEND:1;
DIS-BUEND:1;
H500: AMO BUEND STARTED

+------------------------------- FORMAT = L -----------------------------------+
| TGRP NUMBER : 1 TGRP NAME : LIGNES ARR/DEP AT MAXIMUM NO. : 9 |
| CHARCON : NEUTRAL |
| SUBGROUP NO.: 1 DEVICE TYPE : TMANIMSG TRACENO : 0 |
| SEARCH MODE : CIRCULAR ACD THRESHOLD : * |
| NUMBER OF ASSOCIATED ROUTES : 1 PRIORITY : 1 |
| TDDRFLAG : ON TDDRTHRESHOLD: 0 SOURCEGROUPIDX : 1 |
| GDTRRULE : 0 ACDPMGRP : 0 |
| THE FOLLOWING TRUNKS (LTG-LTU-SLOT-CCT) HAVE BEEN ALLOCATED: |
+------------------------------------------------------------------------------+
| 1- 1- 31-3 | 1- 2- 31-1 | 1- 2- 31-2 | 1- 3- 31-0 | 1- 3- 31-1 |
| 1- 3- 31-4 | 1- 3- 31-2 | 1- 3- 31-3 | 1- 1- 31-5 | |
+------------------------------------------------------------------------------+

AMO-BUEND-111 TRUNK GROUP
DISPLAY COMPLETED;
<DIS-BUEND:13;
DIS-BUEND:13;
H500: AMO BUEND STARTED

+------------------------------- FORMAT = L -----------------------------------+
| TGRP NUMBER : 13 TGRP NAME : LIGNE PRIVEE MAXIMUM NO. : 1 |
| CHARCON : NEUTRAL |
| SUBGROUP NO.: 13 DEVICE TYPE : TMANIMSG TRACENO : 0 |
| SEARCH MODE : CIRCULAR ACD THRESHOLD : * |
| NUMBER OF ASSOCIATED ROUTES : 1 PRIORITY : 1 |
| TDDRFLAG : ON TDDRTHRESHOLD: 0 SOURCEGROUPIDX : 1 |
| GDTRRULE : 0 ACDPMGRP : 0 |
| THE FOLLOWING TRUNKS (LTG-LTU-SLOT-CCT) HAVE BEEN ALLOCATED: |
+------------------------------------------------------------------------------+
| 1- 4- 91-2 | | | | |
+------------------------------------------------------------------------------+

AMO-BUEND-111 TRUNK GROUP
DISPLAY COMPLETED;
<DIS-BUEND:12;
DIS-BUEND:12;
H500: AMO BUEND STARTED

+------------------------------- FORMAT = L -----------------------------------+
| TGRP NUMBER : 12 TGRP NAME : LIGNE PRIVEE MAXIMUM NO. : 1 |
| CHARCON : NEUTRAL |
| SUBGROUP NO.: 12 DEVICE TYPE : TMANIMSG TRACENO : 0 |
| SEARCH MODE : CIRCULAR ACD THRESHOLD : * |
| NUMBER OF ASSOCIATED ROUTES : 1 PRIORITY : 1 |
| TDDRFLAG : ON TDDRTHRESHOLD: 0 SOURCEGROUPIDX : 1 |
| GDTRRULE : 0 ACDPMGRP : 0 |
| THE FOLLOWING TRUNKS (LTG-LTU-SLOT-CCT) HAVE BEEN ALLOCATED: |
+------------------------------------------------------------------------------+
| 1- 4- 91-1 | | | | |
+------------------------------------------------------------------------------+

AMO-BUEND-111 TRUNK GROUP
DISPLAY COMPLETED;
<DIS-BUEND:14;
DIS-BUEND:14;
H500: AMO BUEND STARTED

+------------------------------- FORMAT = L -----------------------------------+
| TGRP NUMBER : 14 TGRP NAME : LIGNE PRIVEE MAXIMUM NO. : 1 |
| CHARCON : NEUTRAL |
| SUBGROUP NO.: 14 DEVICE TYPE : TMANIMSG TRACENO : 0 |
| SEARCH MODE : CIRCULAR ACD THRESHOLD : * |
| NUMBER OF ASSOCIATED ROUTES : 1 PRIORITY : 1 |
| TDDRFLAG : ON TDDRTHRESHOLD: 0 SOURCEGROUPIDX : 1 |
| GDTRRULE : 0 ACDPMGRP : 0 |
| THE FOLLOWING TRUNKS (LTG-LTU-SLOT-CCT) HAVE BEEN ALLOCATED: |
+------------------------------------------------------------------------------+
| 1- 4- 91-3 | | | | |
+------------------------------------------------------------------------------+

hello masviss

I SUSPECT A PARAMETER IN THE ZAND OR DTIM1. I THINK THAT THE HIPATH SEND THE DIALED DIGIT VERY QUICKLY BEFORE THE CO TONE AND I WANT TO CHANGE THE TIMER OF SENDING DIGIT BUT I DON'T KNOW WHERE TO CHANGE. THIS IS SOME COMMAND
<DISPLAY-DTIM1:TYPEDH=CO;
DISPLAY-DTIM1:TYPEDH=CO;
H500: AMO DTIM1 STARTED
TIMERS FOR CO TRUNK CALLS:
+-----------------------+-----------------------+-----------------------+
| RESZO = 3 SEC. | RESZI = 10 SEC. | SETUPULS = 25 SEC. |
| CYCSET = 900 SEC. | DSUPVOP = 40 SEC. | TRACCO = 50 SEC. |
| WANN1 = 12000 MS. | DANN1 = 24000 MS. | WANN2 = 30000 MS. |
| DANN2 = 24000 MS. | DITR = 5000 MS. | PEODMS = 500 MS. |
+-----------------------+-----------------------+-----------------------+
AMO-DTIM1-111 DEVICE HANDLER TIMERS
DISPLAY COMPLETED;
<DISPLAY-DTIM1:TYPEDH=TIE;
DISPLAY-DTIM1:TYPEDH=TIE;
H500: AMO DTIM1 STARTED
TIMERS FOR TIE-LINE CONNECTIONS:
+-----------------------+-----------------------+-----------------------+
| RLSC1 = 1200 MS. | RLSC2 = 2500 MS. | BTSUPV = 100 MS. |
| REMBLKAC = 10 SEC. | SZSUPV = 1 SEC. | PAUDIAL = 200 MS. |
| PTNRSUPV = 5 SEC. | RESET1 = 700 MS. | RESET2 = 1500 MS. |
| RESET3 = 250 MS. | RESET4 = 50 MS. | RESET5 = 350 MS. |
| SZAT = 1 SEC. | RLSSUPV = 250 MS. | TEST1 = 200 MS. |
| TEST2 = 30 SEC. | CTLSTST1 = 30 SEC. | CTLSTST2 = 30 SEC. |
| CTLSTST3 = 30 SEC. | RESTRTNA = 180 SEC. | |
+-----------------------+-----------------------+-----------------------+
<DISPLAY-ZAND:TYPE=ALLDATA;
DISPLAY-ZAND:TYPE=ALLDATA;
H500: AMO ZAND STARTED
GENERAL SYSTEM DATA:
====================
TRANSFER = EXTEND , ALERTN = NO ,
AUTHUP = TA ,
RNGBKTN = YES , TRANSINH = NO ,
NIGHT = TA ,
ITRFWD = NO , HOLDTN = MUSIC , ANATESIG = TONE ,
DSSLT = 20, CODTN = NO , CONFSUB = NO ,
DATEDIS = DDMM, CNTRYCD = 0 , RCLLT = NO ,
MELODY = 1, TRCD = , CPBLOWL = 80 ,
CPBUPPL = 100, CUTHRU1A = NO , PREDIA = NO ,
SIUANN = 3, CO = NO , COEXN = 0 ,
CBKNO = 5 , SEVDIG = NO , PNNO = 1 -1 -102,
DISPMODE = MODE1, PNODECD = 102 , ROUTOPTP = NO ,
ROUTOPTD = NO , CALLOFF = NO , PARARING = YES ,
DSSDEST = YES , ONEPARTY = YES , MSGDELAY = NO ,
EXCOCO = YES , TRDGTPR = NO , COANN = NO ,
HOTDIAL = NO , TRANSTOG = YES , NOCFW = NO ,
HOLDHUNT = NO , POSTDDLY = NO , EXBUSYOV = NO ,
OVRMST = NO , OVRHUNT = NO , CONITPRO = NO ,
RECHUNT = NO , CALLACMP = NO ;
<DISPLAY-ZAND:TYPE=ALLDATA2;
DISPLAY-ZAND:TYPE=ALLDATA2;
H500: AMO ZAND STARTED
GENERAL SYSTEM DATA 2:
======================
HOTELNUM = , XFHGMAS = NO ,
DSSPICUP = NO , FASTCFNA = NO ,
DISPCHES = NO , DISCLHNT = NO ,
FWDWACKN = NO , BSYHANDF = NO ,
FWDMAX = 1 , FWDVMS1 = NO
TRCCSN7 = NO , FWDUNDTR = NO
COSIND = YES , TRANSCO = NO
ANSES = NO , OLISFREE = PRESSBUT,
TEXTDISP = CENTER, PABXSELL = HICOM ,
DSPOWNNO = YES , DIRREC = NO ,
CSDTYPE = STANDARD, CONFTNCD = NO ,
LNR = YES , ROLCKVCM = NO ,
FACBUF = 1 , VCMTRANS = NO ,
HOWLTONE = NO , DISPNUUN = *LIGNEAT* ,
DISPTGNA = NO , POSTDRED = NO ,
GRCALL = NO , MAILSCRL = NO ,
ACTIVE TEXTSEL = FRENCH & ENGLISH & GERMAN & SPANISH & ITALIAN,
RELOAD TEXTSEL = FRENCH & ENGLISH & GERMAN & SPANISH & ITALIAN,
DISPREST = NO , UUS = NODIV,
NOCFWTAC = NO , ISYNCHG = NO ,
ROUTTONE = NO , SOFTREST = SWITOVER,
CALWTANA = YES , CBPBUSY = NO ,
SWSTAT = YES , VIRSUBNO = NO ,
ECN = ,
OOSTONE = NO , TYPEDNIS = INTDNIS ,
CONFTONE = NO , DISPTONE = YES ,
CAMPON = NO , USRINGTY = 0;
<DISPLAY-ZAND:TYPE=ALLDATA3;
DISPLAY-ZAND:TYPE=ALLDATA3;
H500: AMO ZAND STARTED
ALL SYSTEM-DATA 3:
==================
NWTOPTIM = 0 SEC , DDSIMPFL = YES ,
CIDBON = YES , RENSFWD = NO ,
NETTEAM = NO , VCOCUG = NO ,
CFUI = NO , NOCFOOO = NO ,
CLIPSTD = ETSIFSK , CFNRDEST = ONLYCFNR,
EXANTRF = NO , IPDAVCCF = NO ,


BEST REGARDS
TAHA

If you need to wait 3 sec. before entering
the second digit, then you need to change the LODR

ADD-LODR:11,2,,,WAITANS,3;

to delete this line

DEL-LODR:CMD,11,2;

Have you changed the COP? Please show me
REG-COP:140;

HELLO

YAS I HAD CHANGED THE COP SAME PROBLEM
<REG-COP:140;
REG-COP:140;
H500: AMO COP STARTED
ADD-COP:140,DTMF&SFRM&RLSA&COCN&TDED&NO1A&DITW&TIM1&NSDL&DTM1,,;
CHANGE-COP:140,COPADD,,,,INDEP,
"TMANI-DTMF-DIRECT";
BEST REGARDS
OKACHA

You need to make changes to LODR.
And report the results.
One more suggestion.
Before each new dial, wait 10-15 seconds.

hi

when I had changed the LODR
ADD-LODR:11,2,,,WAITANS,3;

I had one time the dialed number is wrong from the central office and for the other times occupation tone from the CO

Hello

Please share the Hipath 4K Version

Regards
Hello ,You can dicuss with me for Hipath 3k and Hipath 4K

Will you be able to listen to what happens on the line when you dial a number. This can be done by turning on a high-resistance earphone in parallel to the line. To understand, you need to listen to how it works on the correct numbers, and then compare it with the non-working ones. So you will know at what stage of the set the error occurs.
After that, you will know how to change the dial number.

hello

I had listen to what happens on the line when I dial a number with an analogue phone installed parallel to the line there is two scenario:

1- CALL IS SETUP: the system pickup the line ( I hear the tic of that) and send digit ,I hear the dialed digit tone sent and the call is setup normally

2- CALL IS NOT SETUP: the system pickup the line ( I hear the tic of that) but no digit sent , in the hipath subscriber I hear the Central office tone and the call is not setup that is the problem.

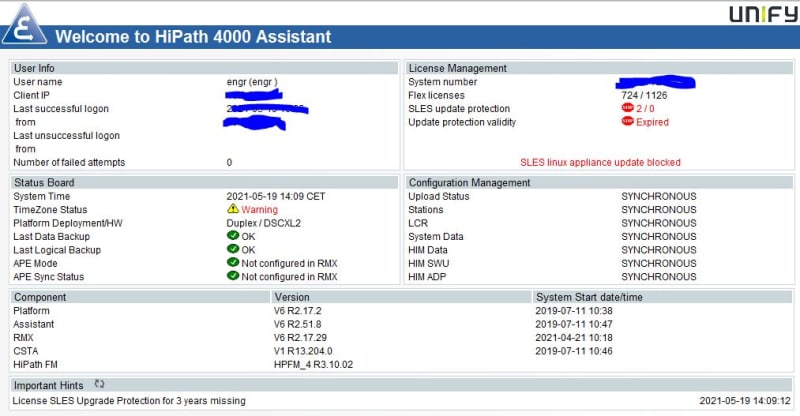

for the system version this is it


This is the parameter of the trunk that i had tested ( I had dialed 72027772400 several time)
ADD-BUEND:6 ,"LIGNES AT URGENCE ",1 ,0 ,* ,1 ,ON ,0 ,0 ,NEUTRAL;

ADD -TACSU: 1-1-31-7, ,140,140, 0, 0, 8, 1, 1,
, 6, 0,"LIGNE AT URG",
0, 1-1-99, 2,1,EMPTY,10,
NONE, NONE, 0,EC &G711&G729AOPT,
" ", 0, GDTR,
0, , 0,Y ,TC ,TMANIMSG,
0, 3528,0,0, 1,11, 1, 0, DTMF-DTMF , 0-0 , 0,
;

ADD-RICHT:LRTENEW,4,ALL,"",
6,1-1-150,,,
,,"",,,,,,YES,
NO,"",0,
,NO,NO,NO,NO,NO,NO,NO,NO ;
<DISPLAY-LDPLN:TYPE=LDP,LROUTE=4;
DISPLAY-LDPLN:TYPE=LDP,LROUTE=4;
H500: AMO LDPLN STARTED
+--------------+-------------------------------------------------+
| | |
| DIPLNUM: 0| |
| LDPNO :16 | LDP : 72-X |
| | SPC : 22 |
| | FDSFIELD : 0 SDSFIELD : 0 PINDP : N |
+------+-------+-------------------------------------------------+
| DPLN | LROUTE| LAUTH |
|------+-------+-------------------------------------------------+
| 0 | 4 | 1 |
| 1 | 4 | 1 |
| 2 | 4 | 1 |
| 3 | 4 | 1 |
| 4 | 4 | 1 |
| 5 | 4 | 1 |
| 6 | 4 | 1 |
| 7 | 4 | 1 |
| 8 | 4 | 1 |
| 9 | 4 | 1 |
| 10 | 4 | 1 |
| 11 | 4 | 1 |
| 12 | 4 | 1 |
| 13 | 4 | 1 |
| 14 | 4 | 1 |
| 15 | 4 | 1 |
+------+-------+-------------------------------------------------+

DISPLAY-LDAT:LROUTE=4;
DISPLAY-LDAT:LROUTE=4;
H500: AMO LDAT STARTED
+------------------------------------------------------------------------------+
| LROUTE = 4 LDPLN NAME = SERVICE = ALL |
| TYPE = LCR DNNO OF ROUTE = 1 -1 -150 |
| SERVICE INFO = |
+------+-----+-----+----+-----+----------+-----------+----------+------+-------+
| | | | | | SCHEDULE | CARRIER | | | |
|LRTEL | LVAL|TGRP | ODR|LAUTH| ABCDEFGH | ZONE| LATTR | LDSRT|COTIDX |
+------+-----+-----+----+-----+----------+-----------+----------+------+-------+
| 1| 1| 6| 2|14 | ******** | 1 EMPTY| WCHREG | | 0 |
+------------------------------------------------------------------------------+
DISPLAY-LODR:ODR=2;
DISPLAY-LODR:ODR=2;
H500: AMO LODR STARTED
+-------------------------------------------------------+
| ODR POSITION CMD PARAMETER |
+--------+----------------------------------------------+
| 2 | 1 ECHO 2 |
| | 2 END |
+--------+----------------------------------------------+
for odr i had tested with this same problem

<DISPLAY-LODR:ODR=2;
DISPLAY-LODR:ODR=2;
H500: AMO LODR STARTED
+-------------------------------------------------------+
| ODR POSITION CMD PARAMETER |
+--------+----------------------------------------------+
| 2 | 1 WAITANS 3 SEC |
| | 2 ECHO 2 |
| | 3 END |
+--------+----------------------------------------------+

best regards
Okacha

Status
Not open for further replies.

Part and Inventory Search

Sponsor

Back
Top
