oleRTF - NumbericList or OrderedList 2

[Koen Piller]

Hi,
I am looking for the coding to insert a numbericlist[ol 1]
[li]first item[/li]
[/ol]
in with oleRTF. This is possible if you put following code in your field:

\par \pard{\pntext\f0 1.\tab}{\*\pn\pnlvlbody\pnf0\pnindent0\pnstart1\pndec{\pntxta.}}
\fi-360\li480\sa50\sl0\slmult1

and

~~~
and

\par \pard

My problem is how to put these lines into my text?

An example how the text would look like:

{\rtf1\ansi\ansicpg1252\deff0{\fonttbl{\f0\fnil\fcharset0 Arial;}}
\viewkind4\uc1\pard\fi-360\li480\sa50\sl0\slmult1\qj\lang1043\fs18
\par This is record number 9 DistributedThis is record number 9 Distributed
\par
\par
\par \pard{\pntext\f0 1.\tab}{\*\pn\pnlvlbody\pnf0\pnindent0\pnstart1\pndec{\pntxta.}}
\fi-360\li480\sa50\sl0\slmult1 The first line
\par {\pntext\f0 2.\tab}The second line
\par {\pntext\f0 3.\tab}The third line
\par \pard\li120\sa50\sl0\slmult1
\par \pard There is a quick brown fox jumping in the woods. The Fox is a mother fox with 3 young foxes, Papa fox was shot by the royal hunters, they will celebrate a fine hunting feast. Hunters where also looking for a wild turkey to make het hunting dinner for X-mas a great succes, unfortunately they could not find one. And for the rest this piece of text is just for testing an to show hwat is the effect of the different alignment commands.
\par \tab Skip to see the effect of the other buttons.
\par
\par normal text
\par }

Anybody around who is familiar with oleRTF coding?

Stay healthy,

Koen


P.S. I studied Mike's

http://www.ml-consult.co.uk/foxst-35.htm

however it does not give me the clue how to do what I want.



[Chris Miller]

The easiest tip I have is to use Word or even Wordpad and do what you want there, save as RTF and just open the file in notepad to see the RTF code.

Chriss



[Koen Piller]

Chris,

It sounds easy however Word is not an option, (not everyone has MSWord installed) Wordpad: I cannot find the correct place where I should place the lines of code. Even with aid of the Declares as shown by Phil Hawkins (see Mike's blog) I cannot find the correct inserting place.

Stay healthy,

Koen



[Nigel Gomm]

This is for a toolbar on a form with the oleRTF activeX ?

i have some code that sets highlighted text to justified alignment....you might make a numberedlist by changing that EM_PARAFORMAT setting.

https://docs.microsoft.com/fr-fr/windows/win32/Controls/em-setparaformat

https://docs.microsoft.com/en-us/windows/win32/api/richedit/ns-richedit-paraformat

[pre]*!* thanks to Bo Durban for this
#define WM_USER 0x0400
#define PFM_ALIGNMENT 0x00000008
#define EM_SETPARAFORMAT (WM_USER + 71)
#define EM_SETTYPOGRAPHYOPTIONS (WM_USER + 202)
#define TO_ADVANCEDTYPOGRAPHY 1
#define PARAFORMAT2_SIZEOF 188

#define PFA_LEFT 1
#define PFA_RIGHT 2
#define PFA_CENTER 3
** PARAFORMAT2 alignment options
#define PFA_JUSTIFY 4 && New paragraph-alignment option 2.0


DECLARE long SendMessage IN WIN32API as SendMessageLong ;
Long, Long, Long, Long
DECLARE long SendMessage IN WIN32API as SendMessageStr ;
Long, Long, Long, String@

** Set advanced typography.
** This has to be enabled to support "Justified" alignment
SendMessageLong(thisform.olerTF.Hwnd,EM_SETTYPOGRAPHYOPTIONS, ;
TO_ADVANCEDTYPOGRAPHY,TO_ADVANCEDTYPOGRAPHY)

LOCAL lqPFM

** Define PARAFORMAT2 structure and set alignment mask and value
lqPFM = REPLICATE(0h00,PARAFORMAT2_SIZEOF)
lqPFM = STUFF(lqPFM, 1, 4, BINTOC(PARAFORMAT2_SIZEOF,"4rs"))
lqPFM = STUFF(lqPFM, 5, 4, BINTOC(PFM_ALIGNMENT,"4rs"))
lqPFM = STUFF(lqPFM, 25, 4, BINTOC(PFA_JUSTIFY,"2rs")) && alignment value

** Set alignment
SendMessageStr(thisform.olerTF.Hwnd,EM_SETPARAFORMAT,0,@lqPFM)
[/pre]

failing that... the TX TEXT control activeX has this built in. Royalty free runtime is about $1000 though!

hth

n



[Chris Miller]

I was merely thinking along these lines:

1. You have some RTF, so save it into a simple text file, change the extension to RTF.
2. Load this RTF document in your Word or Wordpad
3. Make the necessary modifications and save
4. Open the resulting RTF in notepad and take out the RTF sourcecode.

So, I was thinking you only wanted to put one list into exactly this specific RTF code. I would never operate on the source code level. Also, the RTF control offers ways of changing text or inserting something interactively, there is a good example on how to do that in \samples\solution\ole\rtf.scx

Chriss



[Koen Piller]

Nigel,

Is this for a toolbar on a form with oleRTF ActiveX?

This is for a container, with several effect buttons. The container contains the oleRTF ActiveX, it should mimic those containers you can find e.g. in Gmail, composing mail. The oleRTF.controlSource is myTable.myMemoField
My container cntRTLEdit has oleRTF and a number of buttons to edit the text. See also image enclosed.

Stay healthy,

Koen



[Tom Borgmann]

Hi Koen,

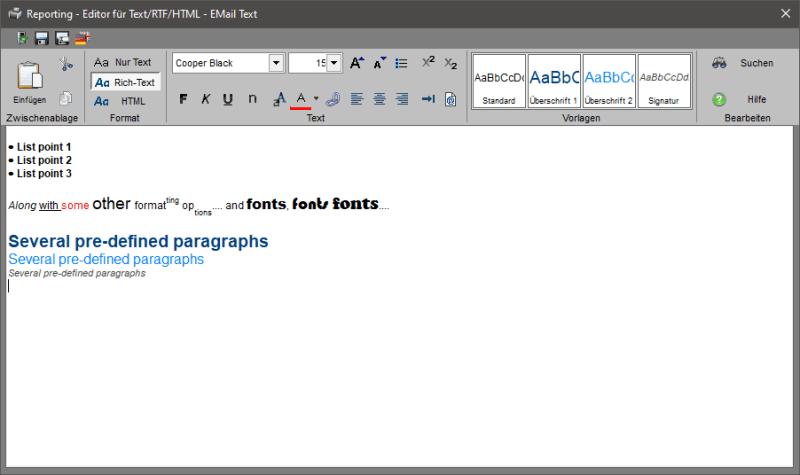

some years ago I had to write a form that was able to handle html, rtf and unformated text, more or less the same as the regular Outlook editor. I came up with this form:

Each ribbon button as assigned a unique keynumber that is used in the buttonhandler method.
BOLD is 11, Italic is 12, a.s.o.
The code you see below is the RTF handler method.

LPARAMETERS vValue as Integer

WITH Thisform.oFormat.rtf.editBox

	DO CASE
	CASE vValue = 11	&& Font Bold
		.SelBold = IIF( .SelBold = .T. , .F. , .T. )

	CASE vValue = 12	&& Font Italic
		.SelItalic = IIF( .SelItalic = .T. , .F. , .T. )

	CASE vValue = 13	&& Font Underline
		.SelUnderline = IIF( .SelUnderline = .T. , .F. , .T. )

	CASE vValue = 14	&& Font Normal
		.SelRTF = STRTRAN( .SelText , [\par ] , [] )
		.SelBold = .F.
		.SelItalic = .F.
		.SelUnderline = .F.
		.SelCharOffset = 0
		.SelFontSize = 9
		.SelBullet = .F.

	CASE vValue = 21	&& Font bigger
		IF .SelFontSize < 15
			.SelFontSize = .SelFontSize + 1
		ENDIF

	CASE vValue = 22	&& Font smaller
		IF .SelFontSize > 7
			.SelFontSize = .SelFontSize - 1
		ENDIF

[b]	CASE vValue = 23	&& Bullets
		.SelBullet = IIF( .SelBullet = .T. , .F. , .T. )
[/b]
	CASE vValue = 31	&& Font Select
		LOCAL lcString as String, lcFontType as String
		STORE [] TO lcString, lcFontType
		lcFonttype = lcFonttype + IIF(.SelBold = .T.,[B],[])
		lcFonttype = lcFonttype + IIF(.SelItalic = .T.,[I],[])
		lcString = GETFONT( .SelFontName, .SelFontSize , lcFontType )
		IF NOT EMPTY( lcString )
			.SelFontName	= GETWORDNUM( lcString , 1 , [,] )
			.SelFontSize	= INT( VAL( GETWORDNUM( lcString , 2 , [,] ) ) )
			.SelBold		= IIF( AT( [B] , GETWORDNUM( lcString , 3 , [,] ) ) > 0 , .T. , .F. )
			.SelItalic		= IIF( AT( [I] , GETWORDNUM( lcString , 3 , [,] ) ) > 0 , .T. , .F. )
			.SelCharOffset	= 0
		ENDIF

	CASE vValue = 32	&& Color Select
		.SelColor = Thisform.cntButtons.shpColor.BackColor

	CASE vValue = 33	&& Hyperlink
		lcLink = .SelText
		IF LOWER( LEFT( ALLTRIM( lcLink ) , 8 ) ) = [https://]
			TEXT TO .SelRTF TEXTMERGE NOSHOW PRETEXT 1+2+4
				{\rtf1\ansi\ansicpg1252\deff0\deflang1033{\fonttbl{\f0\fnil\fcharset0 Calibri;}}
					{\colortbl ;\red0\green0\blue255;}
					{\*\generator Msftedit 5.41.21.2509;}\viewkind4\uc1\pard\sa200\sl276\slmult1\lang9\f0\fs22{\field{\*\fldinst{HYPERLINK "<<lcLink>>"}}{\fldrslt{\ul\cf1 <<lcLink>>}}}\f0\fs22\par\par
				}
			ENDTEXT
		ELSE
*			MESSAGEBOX( [invalid URI. Cannot generate Hyperlink !] , 0+48+0 , [Hyperlink] )
			Thisform.MLCBaseForm.myMLH.ShowMessage( 3002 )
		ENDIF

	CASE vValue = 41	&& Align Left
		.SelAlignment = 0

	CASE vValue = 42	&& Align Center
		.SelAlignment = 2

	CASE vValue = 43	&& Align Right
		.SelAlignment = 1

	CASE vValue = 44
		IF .SelLength = 0
			.SelText = CHR( 9 )
		ENDIF

	CASE vValue = 51	&& Search
		DO CASE
		CASE Thisform.txtSearch.Visible = .T. AND EMPTY( ALLTRIM( Thisform.txtSearch.Value ) )
			Thisform.txtSearch.Visible = .F.
		CASE Thisform.txtSearch.Visible = .T. AND NOT EMPTY( Thisform.txtSearch.Value )
			Thisform.Search()
		CASE Thisform.txtSearch.Visible = .F.
			Thisform.txtSearch.Visible = .T.
			Thisform.txtSearch.SetFocus
		ENDCASE

	CASE vValue = 52	&& Shortcuts
		DO FORM frmrtemailshortcuts

	CASE vValue = 61	&& Superscript
		.SelCharOffset = 100
		.SelFontSize = 7

	CASE vValue = 62	&& Subscript
		.SelCharOffset = -100
		.SelFontSize = 7

	ENDCASE

ENDWITH

Thisform.oFormat.rtf.editBox.SetFocus()

If you can use anything of this might depend on you RTF class, though.

But still HTH



-Tom

https://www.blogger.com/profile/08903165976787522012



[Mike Lewis]

Koen,

I've just run the code in Phil's article (

http://www.ml-consult.co.uk/foxst-35.htm),

using your RTF text. There is clearly a problem with this line:

DECLARE INTEGER RegisterClipboardFormat IN win32api STRING ;
  STRING @, INTEGER, INTEGER

As you can see, there is a missing comma after the first STRING. But even when that was corrected, the command is still wrong. According to the API docs, RegisterClipboardFormat only takes one argument: a string containing the name of the format ("Rich Text Format" in this case).

So I changed it to:

DECLARE INTEGER RegisterClipboardFormat IN win32api STRING

Once that's fixed, I could successfully paste the text in a Word document, with your ordered list appearing correctly.

There are also a couple of other typos in the code, which you are aware of. I will get round to correcting those in due course.

Does this help at all?

Mike


__________________________________
Mike Lewis (Edinburgh, Scotland)

Visual FoxPro articles, tips and downloads



[Chris Miller]

A form with what you want to have (oleRTF contol plus some buttons) is in \samples\solution\ole\rtf.scx

It might not offer all you'd like to do, but you find code using Sel... methods of the RTF control and here is a more detailed reference of the methods:

https://www.thevbprogrammer.com/Ch10/10-06-RichTextBox.htm

IIRC the most valuable method is SelRTF, on one side it gives you the RTF code of selected text (if there is a selection), on the other side when you set this, this will replace the selection or be inserted at the current cursor position, including to embed the RTF the right way. So once you know the RTF code of a numeric list, use this method to embed it at the cursor position.

Chriss



[Koen Piller]

Chris,
The samples (RTF.scx) does not have a button with a procedure to create an ordered or numbered list. It has a bullet list as list option only.
To create this list you have to change / strtran the txt with 2 lines of code, see my opening question. The mystery, for me is 'how to know where to put these codes'?

if you have a dbf with memo field and you put an oleRTF on your for form,
than set the ControlSource of oleRTF to the memofield.
Now paste following code into the memo:

{\rtf1\ansi\ansicpg1252\deff0{\fonttbl{\f0\fnil\fcharset0 Arial;}}
\viewkind4\uc1\pard\fi-360\li480\sa50\sl0\slmult1\qj\lang1043\fs18
\par This is record number 10
\par \pard{\pntext\f0 1.\tab}{\*\pn\pnlvlbody\pnf0\pnindent0\pnstart1\pndec{\pntxta.}}
\fi-360\li480\sa50\sl0\slmult1
\par \pard  There is a quick brown fox jumping in the woods. The Fox  is a mother fox with 3 young foxes, Papa fox was shot by the royal hunters, they  will celebrate  a fine hunting feast. Hunters where also looking for a wild turkey to make het hunting dinner for X-mas a great succes, unfortunately they could not find one. And for the rest this piece of text is just for testing an to show hwat is the effect of the different  alignment commands.
\par
\par }

you will see that your field will look like the uploaded image.


Stay healthy,
Koen



[Koen Piller]

Tom.

a fine, very fine example. I do have a similar UI and same codings, but I am missing, as you are missing, the option to create a numbered list. Whereas this should be as easy as anything, just insert a few lines of code into the RTFtext (see my opening) and you are done. Question is only how do I insert on the location I want, not at the beginning or at the the end of my text. Just like the option here in this Editbox.

Cheers,

Koen



[Koen Piller]

Mike,

I believe the Define part of Phil's article should look like:

DECLARE INTEGER CloseClipboard In WIN32api
DECLARE INTEGER EmptyClipboard In WIN32api
DECLARE INTEGER GetActiveWindow In WIN32api
DECLARE INTEGER GetClipboardData In WIN32api INTEGER
DECLARE INTEGER IsClipboardFormatAvailable In WIN32api INTEGER
DECLARE INTEGER OpenClipboard In WIN32api INTEGER
DECLARE INTEGER RegisterClipboardFormat IN WIN32api STRING
DECLARE INTEGER SetClipboardData In WIN32api INTEGER, INTEGER

But no it is still not enough to make it clear how I should change the RTFtext with the two lines of code (see my opening question) on the place I desire.

Stay healthy,
Koen



[Chris Miller]

You have the RTF code of the numeric list - what you posted.

You have the form with RTF-Control.

Make a button that calls Form.rtf.SelRTF = your RTF Code or the memo containing that rtf code.
In the RTF control put the cursor to the point where the list should be inserted, then click the button, that's the idea.

I can't test it, as my Win10 doesn't have the RTF control - I copied VFP over from an older PC.

The benefit should be clear: You donÄt have to know where to put this in the context of the RTF Code, you let the RTF control do this job. All you do (or your users) is position the cursor. And - of course - you'll better have a very general list to insert, perhaps only with the first item in it, the rtf control should extend it, when you enter further list items by RETURN and writing them.

And what I said initially: You can get any snippet code by just copying that snippet into wordpad and saving it. The RTF file is nothing but the RTF code, just open it in notepad instead of Word or Wordpad, and you have it. Anything it might be. So it's usable very universally.



Chriss



[Koen Piller]

Chris,

You hit the nail!

Make a button that calls Form.rtf.SelRTF = your RTF Code or the memo containing that rtf code.
In the RTF control put the cursor to the point where the list should be inserted, then click the button, that's the idea.

Yes but but the problem is, I cannot find in my RTFtext the point where my cursor is / stroke where I should insert the two lines of code.
If you want, I can mail you a test form with the oleRTF Control. Therefor I cannot correctly change my RTFtext.

As also mentioned in my earlier message: The mystery, for me is 'how to know where to put these codes'?

Since you donot have the oleRTF yourselve I dont think it is easy for you to comment on this, I would advise you first to get the ActiveX than you know exactly what I am talking about and than we can maybe solve this. Meanwhile I do appreciate your postings only they donot result in a solution.

Regards,
Koen



[Chris Miller]

The RTF control knows where to put that into the current RTF code.

It's an interactive thing: You just position where you want the new text or list in the RTF control (not in the RTF code) and then click the button that has a SelRTF=yourlistrtf

And yourlistrtf then is embedded/merged into the current RTF. So this solves your problem.

Just notice exactly what I say: You put the cursor where you want the new section inside the RTF control. This shows the "rendered" RTF, the text including colors, fonts, indention, lists etc., not the rtf source code. And "yourlistrtf" is just the rtf for the list, not the complete RTF. You don't need to know how this is merged in, the control does that.

Edit:

For sake of reproducing my solution:

Open up the rtf.scx from the VFP solution samples. Add a new commandbutton at the top of the form. In the click event write:

LOCAL lcRTF

TEXT TO lcRTF NoShow
{\rtf1\ansi\ansicpg1252\deff0\nouicompat\deflang1031{\fonttbl{\f0\fnil\fcharset0 Calibri;}}
{\*\generator Riched20 10.0.19041}\viewkind4\uc1
\pard
{\pntext\f0 1.\tab}{\*\pn\pnlvlbody\pnf0\pnindent0\pnstart1\pndec{\pntxta.}}
\fi-360\li720\sa200\sl276\slmult1\f0\fs22\lang7\par
}
ENDTEXT

Thisform.OleRTF.SelRTF = lcRTF

When you run the form, move the cursor in the running RTF control where you want to start a list and click this new button. A '1.' appears at that position and if you click multiple times you get further items with 2,3,4,...
All you need is the new RTF and the control merges it in.

Chriss



[Mike Lewis]

I believe the Define part of Phil's article should look like:

Koen,

Your corrections agree with mine. I've now updated Phil's article. Thanks for pointing out the errors.

But no it is still not enough to make it clear how I should change the RTFtext with the two lines of code (see my opening question) on the place I desire

I realise I was not addressing your original question, but it looks like Chris has been able to help.

Mike

__________________________________
Mike Lewis (Edinburgh, Scotland)

Visual FoxPro articles, tips and downloads



[Koen Piller]

Chris,

You are my man!
I don't have figure out where the cursor is. Just click and the ActiveX is doing his job!
Even more simple than I could ever think of.
Great.
Thank you so much.

Stay healthy.

Koen



[Chris Miller]

Hi Koen,

glad you got there. Stay helathy and have a merry Christmas and a jolly good time.

Chriss



[ggreen61]

You can also use the following to insert a numbered list:

LOCAL lcParaFormat2
WITH this.Parent
	.clsParaFormat.GetParaFormat(.oleRtfText)
	.clsParaFormat.dwMask = BITOR(PFM_NUMBERING, PFM_NUMBERINGSTART, PFM_NUMBERINGSTYLE)
	.clsParaFormat.wNumbering = PFN_ARABIC
	.clsParaFormat.wNumberingStart = 1
	.clsParaFormat.wNumberingStyle = PFNS_PERIOD
	lcParaFormat2 = .clsParaFormat.GetString()
	IF apiSendMessage(.oleRtfText.hWnd, EM_SETPARAFORMAT, 0, @lcParaFormat2) = 0
		DisplayMsg("Format Failed")
	ELSE
		.IsDirty = True
	ENDIF
	.oleRtfText.SetFocus()
ENDWITH'

The class 'clsParaFormat' is a custom helper class that I have based on Christof struct class. Here is the code via the Class Browser export (mine is a visual class):

**************************************************
*-- Class Library:  e:\my work\foxpro\projects\common\classes\struct.vcx
**************************************************


**************************************************
*-- Class:        struct (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- ParentClass:  label
*-- BaseClass:    label
*-- Time Stamp:   10/08/07 06:59:13 PM
*
DEFINE CLASS struct AS label


	Alignment = 2
	Caption = "Structure"
	Height = 17
	Visible = .F.
	Width = 100
	ForeColor = RGB(255,0,0)
	BackColor = RGB(255,255,0)
	*-- Name of the Convert.FLL library
	clibconvert = "GKKConvert.Fll"
	*-- Name of the memory Class
	cclassmemory = "structMemory"
	*-- Number of bytes allocated for pointer in this structure
	PROTECTED nmemorysize
	nmemorysize = 8192
	*-- Is set to .T. after a clean up to avoid multiple calls of CleanUp
	PROTECTED lcleanedup
	lcleanedup = .F.
	*-- holds the reference to the memory object.
	PROTECTED omemory
	omemory = .NULL.
	*-- Holds the number of members in this structure
	PROTECTED nmembercount
	nmembercount = 0
	*-- Contains the definition of this structure. If it exceeds 254 characters, return it in the GetcMembers method. For details on the format refer to the comment in GetcMember().
	cmembers = ""
	*-- Was the conversion library already loaded when this object was created?
	PROTECTED llibrarywasloaded
	llibrarywasloaded = .F.
	*-- Fills the structure to a multiple of nFill with Chr(0).
	nfill = 1
	*-- XML Metadata for customizable properties
	_memberdata = ""
	Name = "struct"

	*-- Collection of all structure members. Contains structMember objects
	DIMENSION members[1]


	*-- Releases this object
	PROCEDURE release
		*====================================================================
		* Release this object. This method will work even if there are
		* references pointing to this object.
		*====================================================================
		With This

			.CleanUp()
			Release m.This

		Endwith
	ENDPROC


	*-- Loads all FLLs
	PROCEDURE loadlibrary
		*====================================================================
		* Load the Convert.FLL library. You can override this method If you
		* use a different mechanism to load a library, such as a global
		* library manager.
		*====================================================================
		With This

			*-----------------------------------------------------------------
			If Not Type(".cLibConvert") == 'C'
				Return .F.
			Endif
			If Empty(.cLibConvert)
				Return .F.
			Endif
			If Not File(.cLibConvert)
				Return .F.
			Endif

			*-----------------------------------------------------------------
			* Load library
			*-----------------------------------------------------------------
			.lLibraryWasLoaded = Upper(.cLibConvert) $ Upper(Set("library"))
			If !.lLibraryWasLoaded
				Set Library to (.cLibConvert) Additive
			Endif

		Endwith
	ENDPROC


	*-- Creates the memory object
	PROCEDURE creatememory
		*====================================================================
		* Creates an instance of the memory object. You can override this
		* method, if you want to use a different memory handling, for example
		* if you want to use a global memory object for all structures, or
		* at least share a common Windows heap. By default, this class
		* creates a new memory object which allocates a new heap of a fixed
		* length. Increase nMemorySize you have to store huge strings or
		* structures.
		*====================================================================
		With This

			*-----------------------------------------------------------------
			* Load class library. By default this is the same class library
			* as this class is stored in. If the memory class is in a
			* different class library, you have to load that library
			* before you call this method. We need to load the class library,
			* because this component should work in both versions, VFP 5 and
			* VFP 6. In VFP 6 we could use NewObject() instead.
			*-----------------------------------------------------------------
			Set ClassLib to (.ClassLibrary) Additive

			*-----------------------------------------------------------------
			* Create and initialize the memory object. You get an assertion
			* when the class could not be initialized. Usually this is caused
			* by either an unavailable class library, or by a typo in the
			* memory class name (cClassMemory).
			*-----------------------------------------------------------------
			.oMemory = CreateObject( .cClassMemory, .nMemorySize )
			If IsNull(.oMemory)
				Return .F.
			Endif

		Endwith
	ENDPROC


	*-- Call requery every time you change the structure itself, not if you change the values.
	PROCEDURE requery
		*====================================================================
		* Loads the current structure. That means, the structure definition
		* is parsed, member objects are created for every member of this
		* structure, memory is allocated, contained structures are handled.
		* If you call this method a second time, please be aware, that all
		* memory is released and new memory allocated. If any other
		* application or Windows still holds a reference to that memory, you
		* might encounter a GPF.
		*====================================================================
		With This

			*-----------------------------------------------------------------
			* Release all existing structure members
			*-----------------------------------------------------------------
			If .nMemberCount > 0
				.ReleaseMembers()
				.nMemberCount = 0
			Endif

			*-----------------------------------------------------------------
			* Because we use MLINE(), we have to adjust the length of a line.
			*-----------------------------------------------------------------
			Local lnMemoWidth
			lnMemoWidth = Set("MemoWidth")
			Set MemoWidth to 32000

			*-----------------------------------------------------------------
			* Read the defintion of this structure into an array. Each array
			* element holds the definition of one structure member.
			*-----------------------------------------------------------------
			Local lcMembers
			lcMembers = .GetcMembers()
			If Type("lcMembers") != 'C' or Empty(lcMembers)
				Return .F.
			Endif

			Local laMember, lnCount, lnMember, lcLine
			lcMembers = ChrTran( Upper(m.lcMembers), ",;", Chr(13)+Chr(13) )
			* convert tabs to spaces
			lcMembers = ChrTran( m.lcMembers, Chr(9), ' ')
			lnCount = MemLines( m.lcMembers )
			Dimension laMember[Max(1,m.lnCount)]
			For lnMember = 1 to m.lnCount
				lcLine = Alltrim( MLine( m.lcMembers, m.lnMember ) )
				If RAt(" ",m.lcLine) > 0
					lcLine = Alltrim( SubStr( m.lcLine, RAt(" ",m.lcLine) ) )
				Endif
				laMember[m.lnMember] = m.lcLine
			Endfor

			*-----------------------------------------------------------------
			* Create a structMember object for every member. We use a
			* paramterized FactoryMethod here, because every data type has
			* its own structmember subclass. By defining new structMember
			* classes and overidng the CreateMember() class you can easily
			* add further datatypes.
			*-----------------------------------------------------------------
			Local loMember, lnMember, llOK
			llOK = .T.
			For lnMember = 1 to m.lnCount
				If Empty(laMember[m.lnMember])
					Loop
				Endif
				loMember = .CreateMember( .GetType(laMember[m.lnMember]),;
					laMember[m.lnMember] )
				If Type("m.loMember") == "O"
					.nMemberCount = .nMemberCount + 1
					Dimension .Members[.nMemberCount]
					.Members[.nMemberCount] = m.loMember
				Else
					llOK = .F.
					Exit
				Endif
			Endfor

			*-----------------------------------------------------------------
			* restore environment
			*-----------------------------------------------------------------
			Set MemoWidth to m.lnMemoWidth

			Return m.llOK

		Endwith
	ENDPROC


	*-- Releases all objects, like the memory object and contained structures.
	HIDDEN PROCEDURE cleanup
		*====================================================================
		* Releases all objects as well as structures this object points to.
		*====================================================================
		With This

			*-----------------------------------------------------------------
			* Did we already cleaned up everything? We don't need to do this
			* twice. That could happen when Release (which calls CleanUp())
			* fires Destroy, which also calls CleanUp().
			*-----------------------------------------------------------------
			If .lCleanedUp
				Return
			Endif

			*-----------------------------------------------------------------
			* Release all resources, like member objects, allocated memory and
			* the conversion library.
			*-----------------------------------------------------------------
			.ReleaseMembers()
			.ReleaseMemory()
			.ReleaseLibrary()

			*-----------------------------------------------------------------
			* and we're done...
			*-----------------------------------------------------------------
			.lCleanedUp = .T.

		Endwith
	ENDPROC


	*-- Returns the definition of this structure. By default, just cMembers is returned. Override this method if the definition contains more than 254 characters.
	PROCEDURE getcmembers
		*====================================================================
		* Returns the definition of this structure, by default the content
		* of This.cMembers. The definition must follow the following format:
		*
		* [text] type:property
		*
		* type is defined as follows:
		*
		* type			::== [p] number-type|char-type|struct-type
		* number-type	::== [s|u] l|w|b|d
		* char-type		::== [x|2] ([0]c)|z [length]
		* struct-type	::== o
		*
		* where these characters mean:
		*
		*   p  pointer
		*   s  signed value (default)
		*   u  unsigned value
		*   c  array of character (char[])
		*   z  zero-terminated string (char or char*)
		*   l  long integer 4-byte (long int or LONG)
		*   w  short integer 2-byte (short int or WORD)
		*   b  byte (short char or BYTE)
		*   d  double
		*   o  object of type struct
		*
		* With type "c" and type "z" you can optionally add the length of
		* the string. If the string is not a pointer you have to, other-
		* wise the structure will vary in its size! If no value is given
		* the current length of the string is used as default.
		*
		* Examples
		*
		* ul:MyProperty     unsigned LONG
		* pz:lpzString      pointer to a null terminated string
		* c20:Buffer        char[20]
		* pl:Size           pointer to a LONG
		*
		* Override this method, if the definition of this structure either
		* doesn't fit into the cMember property, or if it should be stored
		* in that property. The first case commonly happens when the defi-
		* nition exceeds 254 characters and you use the Visual Designer to
		* create the structure. In that case, just return the structure in
		* this method.
		*
		*====================================================================
		With This

			Return .cMembers

		Endwith
	ENDPROC


	*-- Releases all structure members.
	HIDDEN PROCEDURE releasemembers
		*====================================================================
		* Release all members
		*====================================================================
		With This

			Local loMember
			For Each m.loMember in .Members
				If not IsNull(m.loMember)
					m.loMember.Release()
				Endif
			EndFor

		Endwith
	ENDPROC


	*-- Factory method to create a new member based on its type.
	PROCEDURE createmember
		*====================================================================
		* Given a type code, returns the appropriate StructMember object.
		* New types can be added by overriding this method. This is the
		* example of the implementation of the FactoryMethod pattern.
		*====================================================================
		Lparameters tcType, tcSpec
		With This

			*-----------------------------------------------------------------
			* determine the StructMember subclass from the type code
			*-----------------------------------------------------------------
			Local lcClass
			Do Case

			*-----------------------------------------------------------------
			* number classes
			*-----------------------------------------------------------------
			Case m.tcType == 'L'
				lcClass = "StructLongMember"
			Case m.tcType == 'W'
				lcClass = "StructWordMember"
			Case m.tcType == 'B'
				lcClass = "StructByteMember"
			Case m.tcType == 'D'
				lcClass = "StructDoubleMember"

			*-----------------------------------------------------------------
			* char classes
			*-----------------------------------------------------------------
			Case m.tcType == 'C'
				lcClass = "StructCharBufMember"
			Case m.tcType == 'Z'
				lcClass = "StructStringMember"

			*-----------------------------------------------------------------
			* substruct class
			*-----------------------------------------------------------------
			Case m.tcType == 'O'
				lcClass = "StructStructMember"

			*-----------------------------------------------------------------
			* No valid type. Either you passed a wrong type, or maybe it was
			* just the wrong case or contained an additional space. In any
			* case, we can't determine the type of the member and fail on this
			* method.
			*-----------------------------------------------------------------
			Otherwise
				Return Null

			Endcase

			*-----------------------------------------------------------------
			* instantiate the StructMember subclass
			*-----------------------------------------------------------------
			Return CreateObject(m.lcClass, m.This, m.tcSpec)

		EndWith
	ENDPROC


	*-- Returns a string to be passed to a DLL function as a struct. Populated from properties as defined in cMembers.
	PROCEDURE getstring
		*====================================================================
		* Create and return a string containing the values of properties
		* as specified in cMembers, suitable for passing to a DLL function
		* as a C struct.
		* Returns "" on error
		*====================================================================
		With This

			Local lcStruct
			lcStruct = ""
			Local loMember
			For Each m.loMember In .Members

				* get the string
				Local lcMember
				lcMember = m.loMember.GetString(m.This, .oMemory)
				If Type("m.lcMember") != 'C' or Len(m.lcMember) == 0
					lcStruct = ""
					Exit
				Endif

				* add it to "struct" string
				lcStruct = m.lcStruct + m.lcMember
			Endfor

			*-----------------------------------------------------------------
			* Fill the structure to a multitude of This.nFill
			*-----------------------------------------------------------------
			m.lcStruct = PadR( ;
				m.lcStruct, ;
				Ceiling(Len(m.lcStruct)/.nFill) * .nFill, ;
				Chr(0) ;
			)

			Return m.lcStruct

		Endwith
	ENDPROC


	*-- Updates property values from passed string, which has itself been updated after being passed to a DLL function.
	PROCEDURE setstring
		*====================================================================
		* Update the values of properties specified in cMembers from a string
		* that has been modified by a DLL function as a C struct.
		* Returns success.
		*====================================================================
		LParameters tcStruct
		With This

			* validate parameter
			If Type("m.tcStruct") != 'C' or Len(m.tcStruct) == 0
				Return .F.
			Endif

			Local loMember
			For Each loMember In .Members
				* get the size of this member's data,
				* as represented in the struct
				Local lnLen
				lnLen = m.loMember.SizeOf(m.This)
				If lnLen <= 0
					Return .F.
				Endif

				* extract this member's data
				If Len(m.tcStruct) < m.lnLen
					Return .F.
				Endif
				Local lcMember
				lcMember = Left(m.tcStruct, m.lnLen)

				* remove this member's data from the string
				If m.lnLen >= Len(m.tcStruct)
					tcStruct = ""
				Else
					tcStruct = SubStr(m.tcStruct, m.lnLen + 1)
				Endif

				* give the string to the member
				Local llOK
				llOK = m.loMember.SetString(m.This, .oMemory, m.lcMember)
				If !m.llOK
					Return .F.
				Endif
			Endfor

		Endwith
	ENDPROC


	*-- Returns the size of the struct to be passed to a DLL function, similarly to C's sizeof operator.
	PROCEDURE sizeof
		*====================================================================
		* Return the size of the struct that will be passed to a DLL
		* function, or 0 on error.
		*====================================================================

		With This

			Local lnTotalSize
			m.lnTotalSize = 0

			Local loMember
			For Each m.loMember In .Members

				* get the member's size
				Local lnSize
				m.lnSize = m.loMember.SizeOf(m.This)
				If m.lnSize <= 0
					Return 0
				Endif

				* ad the member's size to the total
				m.lnTotalSize = m.lnTotalSize + m.lnSize

			Endfor

			*-----------------------------------------------------------------
			* Fill the structure to a multitude of This.nFill
			*-----------------------------------------------------------------
			lnTotalSize = Ceiling(m.lnTotalSize/.nFill) * .nFill

			Return m.lnTotalSize

		Endwith
	ENDPROC


	*-- Removes the conversion library from memory. Override to do your own library management.
	PROCEDURE releaselibrary
		*====================================================================
		* Remove the conversion library (Convert.FLL, by default) from
		* memory. You can override this method If you use a different
		* mechanism to load a library such as a global library manager.
		*====================================================================
		With This

			If not .lLibraryWasLoaded
				Release Library (.cLibConvert)
			Endif

		Endwith
	ENDPROC


	*-- Extracts the type code from a type spec.
	PROCEDURE gettype
		*====================================================================
		* Returns the type code from a type spec, which is defined as the
		* first nondigit before the colon. This method can be overridden
		* (along with CreateMember) to provide for specialized type specs.
		* Returns "" on error.
		*====================================================================
		Lparameters tcSpec

			* make sure the spec is long enough for a colon and a type code
			If Len(m.tcSpec) < 2
				Return ""
			Endif

			* remove all digits (e.g., the digits following the type code
			* in a spec like "c20")
			Local lcSpec
			lcSpec = ChrTran(m.tcSpec, "1234567890", "")

			* find the colon
			Local lnColonPos
			lnColonPos = At(':', m.lcSpec)
			If m.lnColonPos <= 1
				Return ""
			Endif

			* the type code is the character right before the colon
			Local lcType
			lcType = SubStr(m.lcSpec, m.lnColonPos - 1, 1)

		Return m.lcType
	ENDPROC


	*-- Returns a pointer to the struct
	PROCEDURE getpointer
		*====================================================================
		* Converts members to a C struct, and returns a pointer to it.
		* Returns address suitable for passing to a DLL function that
		* takes a pointer to a struct, rather than the struct itself.
		* Usually a structure is stored in a VFP string which may be moved
		* at any time. When the structure contains references into the memory
		* block of this structure, or is used after the DLL returns, you have
		* to pass a pointer, not a string.
		* Takes an optional tnSize parameter, in case space is needed
		* after the defined struct.
		* Returns 0 on failure
		*====================================================================
		Lparameters tnSize
		With This

			*-----------------------------------------------------------------
			* get the struct's data into a string. Only when a valid structure
			* has been returned, we continue.
			*-----------------------------------------------------------------
			Local lcStruct
			lcStruct = .GetString()
			If Len(m.lcStruct) == 0
				Return 0
			Endif

			*-----------------------------------------------------------------
			* determine size of allocation. If size is invalid, we return
			* immediately. In order to prevent side effects with SET UDFPARMS
			* TO REFERENCE, we copy the parameter into a local variable.
			*-----------------------------------------------------------------
			Local lnSize
			If PCount() < 1
				lnSize = .SizeOf()
			Else
				lnSize = m.tnSize
			Endif
			If Not (Type("m.lnSize") == 'N' and m.lnSize > 0)
				Return 0
			Endif

			*-----------------------------------------------------------------
			* allocate the memory for this structure. Be aware that at this
			* point, no reference inside lcStruct must point to an address
			* inside the string. If we can't allocate memory, we fail.
			*-----------------------------------------------------------------
			Local lnAddress
			lnAddress = .oMemory.Alloc(m.tnSize)
			If m.lnAddress == 0
				Return 0
			Endif

			*-----------------------------------------------------------------
			* copy the structure entirely to Windows' memory
			*-----------------------------------------------------------------
			lnAddress = .oMemory.PutMem( m.lnAddress, m.lcStruct )
			If m.lnAddress == 0
				Return 0
			Endif

			Return m.lnAddress

		EndWith
	ENDPROC


	*-- Frees a pointer previously returned by GetPointer or GetBlock
	PROCEDURE freepointer
		*====================================================================
		* Frees a pointer returned by GetPointer or GetBlock.
		* Returns success. Don't use the pointer after you called
		* FreePointer(), it's invalid when this method returns with success.
		*====================================================================
		Lparameters tnAddress
		With This

			*-----------------------------------------------------------------
			* validate parameter. Defensive programming prevents this method
			* from causing errors when you pass an invalid parameter. Pay
			* attention, though, to any assertion dialog you get!
			*-----------------------------------------------------------------
			If not Type("m.tnAddress") == "N" or m.tnAddress == 0
				Return .F.
			Endif

			*-----------------------------------------------------------------
			* Free memory block that tnAddress points to.
			*-----------------------------------------------------------------
			Local llOK
			llOK = .oMemory.FreeMem( m.tnAddress )
			Return m.llOK

		EndWith
	ENDPROC


	*-- Updates properties from a pointer that points to the struct
	PROCEDURE setpointer
		*====================================================================
		* Update the values of properties specified in cMembers from a
		* pointer to a string that has been modified by a DLL function as a
		* C struct.
		* This pointer does not have to have been returned by GetPointer,
		* in which case, tnSize is required.
		* Returns success.
		*====================================================================
		LParameters tnAddress, tnSize
		With This

			* validate parameters
			If Type("m.tnAddress") != 'N' or Empty(m.tnAddress)
				Return .F.
			Endif

			* get the size
			If Type("m.tnSize") != 'N'
				tnSize = .SizeOf()
			Endif
			If m.tnSize == 0
				Return .F.
			Endif

			* get the contents of the pointer into a string
			Local lcStruct
			lcStruct = .oMemory.GetMem(m.tnAddress, m.tnSize)
			If Empty(m.lcStruct)
				Return .F.
			Endif

			* update the properties from the string
			Return .SetString(m.lcStruct)

		Endwith
	ENDPROC


	*-- Called to release memory object
	PROCEDURE releasememory
		*====================================================================
		* Release the memory object. This can be overridden if special
		* memory handling is used
		*====================================================================
		With This

			*-----------------------------------------------------------------
			* Release memory. This will free up any allocated memory blocks.
			*-----------------------------------------------------------------
			If Type(".oMemory.Name") == "C"
				.oMemory.Release
			Endif

		Endwith
	ENDPROC


	*-- Returns a block of memory.
	PROCEDURE getblock
		*====================================================================
		* Returns a block of memory, for use when not even an empty
		* structure has to be passed to a DLL function, but simply an empty
		* buffer. Returns 0 on failure, otherwise address of memory block.
		* You have to release the pointer when you don't need it anymore
		* using FreePointer(). tnSize is the of the buffer in bytes.
		*====================================================================
		Lparameters tnSize
		With This

			*-----------------------------------------------------------------
			* validate parameters
			*-----------------------------------------------------------------
			If not Type("m.tnSize") == "N" or m.tnSize == 0
				Return 0
			Endif

			*-----------------------------------------------------------------
			* Allocate memory
			*-----------------------------------------------------------------
			Local lnAddress
			lnAddress = .oMemory.Alloc(m.tnSize)
			Return m.lnAddress

		EndWith
	ENDPROC


	*-- Returns "9x" on Windows 9x systems; "NT" on Windows NT systems
	PROCEDURE getos
		*====================================================================
		* Returns a string representing the operating system:
		* "9x" for Windows 9x
		* "NT" for Winodws NT
		* You can override this method, if you use a different way to
		* determine the OS, or OS() returns different values in later
		* releases of either VFP or Windows.
		*====================================================================

			If "NT" $ OS()
				Return "NT"
			Else
				Return "9x"
			Endif

	ENDPROC


	PROCEDURE Destroy
		*====================================================================
		* Release resources when this object is destroyed
		*====================================================================
		With This

			.Cleanup()
			Return DoDefault()

		Endwith
	ENDPROC


	PROCEDURE Init
		*====================================================================
		* Initializes the structure. All necessary libraries and classes are
		* loaded, the structure is analyzed, etc.
		*====================================================================
		With This

			*-----------------------------------------------------------------
			* Create this class? This is only necessary when the parent class
			* is changed to match your base classes.
			*-----------------------------------------------------------------
			If not DoDefault()
				Return .F.
			Endif

			*-----------------------------------------------------------------
			* Initialize the structure. Load all necessary components and read
			* the structure definition.
			* If there were any problems during the initialization, clean up
			* everything. We call Release here explicitely to perform some
			* clean up tasks in this case.
			*-----------------------------------------------------------------
			IF .LoadLibrary() .AND. .CreateMemory() .AND. .Requery()
				Return .T.
			ELSE
				.lCleanedUp = .T.
				.Release()
				Return .F.
			ENDIF

		Endwith
	ENDPROC


ENDDEFINE
*
*-- EndDefine: struct
**************************************************


**************************************************
*-- Class:        charformat (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- ParentClass:  struct (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- BaseClass:    label
*-- Time Stamp:   01/26/15 12:06:01 AM
*
#INCLUDE "e:\my work\foxpro\projects\common\includes\gkkdefines.h"
*
DEFINE CLASS charformat AS struct


	Caption = "CharFormat"
	cbsize = 0
	dwmask = 0
	dweffects = 0
	yheight = 0
	yoffset = 0
	crtextcolor = 0
	bcharset = 0
	bpitchandfamily = 0
	szfacename = ""
	wpad = 0
	wweight = 0
	sspacing = 0
	crbackcolor = 0
	lcid = 0
	dwreserved = 0
	sstyle = 0
	wkerning = 0
	bunderlinetype = 0
	banimation = 0
	brevauthor = 0
	breserved1 = 0
	Name = "charformat"


	PROCEDURE getcmembers
		RETURN 	"UINT     ul:cbSize,"         + ;
				"DWORD    ul:dwMask,"         + ;
				"DWORD    ul:dwEffects,"      + ;
				"LONG     l:yHeight,"         + ;
				"LONG     l:yOffset,"         + ;
				"COLORREF ul:crTextColor,"    + ;
				"BYTE     b:bCharSet,"        + ;
				"BYTE     b:bPitchAndFamily," + ;
				"TCHAR    0c32:szFaceName,"   + ;
				"WORD     uw:wPad,"           + ;
				"WORD     uw:wWeight,"        + ;
				"SHORT    w:sSpacing,"        + ;
				"COLORREF ul:crBackColor,"    + ;
				"LCID     ul:lcid,"           + ;
				"DWORD    ul:dwReserved,"     + ;
				"SHORT    w:sStyle,"          + ;
				"WORD     uw:wKerning,"       + ;
				"BYTE     b:bUnderlineType,"  + ;
				"BYTE     b:bAnimation,"      + ;
				"BYTE     b:bRevAuthor,"      + ;
				"BYTE     b:bReserved1"
	ENDPROC


	PROCEDURE Init
		this.cLibConvert = "gkkconvert.fll"
		DODEFAULT()
		this.cbsize = this.sizeof()
	ENDPROC


ENDDEFINE
*
*-- EndDefine: charformat
**************************************************


**************************************************
*-- Class:        paraformat (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- ParentClass:  struct (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- BaseClass:    label
*-- Time Stamp:   01/26/15 12:05:12 AM
*
#INCLUDE "e:\my work\foxpro\projects\common\includes\gkkdefines.h"
*
DEFINE CLASS paraformat AS struct


	Caption = "ParaFormat"
	cbsize = 0
	dwmask = 0
	wnumbering = 0
	weffects = 0
	dxstartindent = 0
	dxrightindent = 0
	dxoffset = 0
	walignment = 0
	ctabcount = 0
	dyspacebefore = 0
	dyspaceafter = 0
	dylinespacing = 0
	sstyle = 0
	blinespacingrule = 0
	boutlinelevel = 0
	wshadingweight = 0
	wshadingstyle = 0
	wnumberingstart = 0
	wnumberingstyle = 0
	wnumberingtab = 0
	wborderspace = 0
	wborderwidth = 0
	wborders = 0
	_memberdata = [<VFPData><memberdata name="getparaformat" type="method" display="GetParaFormat"/></VFPData>]
	Name = "paraformat"
	DIMENSION rgxtabs[32]


	*-- Gets the current paragraph format
	PROCEDURE getparaformat
		LPARAMETERS toRichEdit
		LOCAL lcParaFormat, lndwMask
		lcParaFormat = this.GetString()
		IF !EMPTY(lcParaFormat)
			lndwMask = apiSendMessage(toRichEdit.hWnd, EM_GETPARAFORMAT, 0, @lcParaFormat)
			IF lndwMask != 0
				this.SetString(lcParaFormat)
			ENDIF
		ENDIF
	ENDPROC


	PROCEDURE getcmembers
		RETURN "UINT  ul:cbSize,"          + ;
		       "DWORD ul:dwMask,"          + ;
		       "WORD  uw:wNumbering,"      + ;
		       "WORD  uw:wEffects,"        + ;
		       "LONG  l:dxStartIndent,"    + ;
		       "LONG  l:dxRightIndent,"    + ;
		       "LONG  l:dxOffset,"         + ;
		       "WORD  uw:wAlignment,"      + ;
		       "SHORT w:cTabCount,"        + ;
		       "LONG  l:rgxTabs,"          + ;
		       "LONG  l:dySpaceBefore,"    + ;
		       "LONG  l:dySpaceAfter,"     + ;
		       "LONG  l:dyLineSpacing,"    + ;
		       "SHORT w:sStyle,"           + ;
		       "BYTE  b:bLineSpacingRule," + ;
		       "BYTE  b:bOutlineLevel,"    + ;
		       "WORD  uw:wShadingWeight,"  + ;
		       "WORD  uw:wShadingStyle,"   + ;
		       "WORD  uw:wNumberingStart," + ;
		       "WORD  uw:wNumberingStyle," + ;
		       "WORD  uw:wNumberingTab,"   + ;
		       "WORD  uw:wBorderSpace,"    + ;
		       "WORD  uw:wBorderWidth,"    + ;
		       "WORD  uw:wBorders"
	ENDPROC


	PROCEDURE Init
		LOCAL lnNdx
		this.cLibConvert = "gkkconvert.fll"
		DODEFAULT()
		WITH this
			.cbsize = .SizeOf()
			FOR lnNdx=1 TO 32
				.rgxTabs[lnNdx] = 0
			ENDFOR
		ENDWITH
	ENDPROC


ENDDEFINE
*
*-- EndDefine: paraformat
**************************************************


**************************************************
*-- Class:        structmember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- ParentClass:  label
*-- BaseClass:    label
*-- Time Stamp:   07/07/99 10:37:02 PM
*
#INCLUDE "e:\my work\foxpro\projects\common\includes\structmember.h"
*
DEFINE CLASS structmember AS label


	Alignment = 2
	Caption = "StructMember"
	Height = 17
	Visible = .F.
	Width = 150
	ForeColor = RGB(255,0,0)
	BackColor = RGB(255,255,0)
	*-- Name of parent Struct's property to which this object is bound
	PROTECTED cproperty
	cproperty = ""
	*-- Is this property a pointer?
	PROTECTED lispointer
	lispointer = .F.
	*-- Size of this type's basic element.
	PROTECTED nelementsize
	nelementsize = 0
	*-- Name of FLL function to call to convert a property to a string representing a struct member.
	PROTECTED cgetstringconversion
	cgetstringconversion = ""
	*-- Name of FLL function to call to convert from the struct representation back to a property value.
	PROTECTED csetstringconversion
	csetstringconversion = ""
	*-- Is the associated property an array?
	PROTECTED lisarray
	lisarray = .F.
	*-- Number of columns in aMemory
	nmemorycols = 2
	Name = "structmember"

	*-- Array of address-size pairs, used with pointer properties
	PROTECTED amemory[1,2]


	*-- Release this object from memory
	PROCEDURE release
		*====================================================================
		* Release this object. This method will work even if there are
		* references pointing to this object.
		*====================================================================

			Release m.This
	ENDPROC


	*-- Returns the size of this member's representation in the struct.
	PROCEDURE sizeof
		*====================================================================
		* Return the size in bytes of this member in the struct that
		* will be passed to a DLL function.
		* If the member is a pointer, returns the size of the pointer;
		* else calls ElementSize() to get the size of the actual data.
		* This size is the entire length of the array, if it's an array
		*====================================================================
		Lparameters toStruct
		With This

			* validate parameters
			Assert Type("m.toStruct") == 'O' and Not IsNull(m.toStruct)
			If Not (Type("m.toStruct") == 'O' and Not IsNull(m.toStruct))
				Return 0
			Endif

			Local lnSize
			lnSize = .ElementSize(m.toStruct)

			If .lIsArray
				Local lcProperty
				lcProperty = .cProperty
				lnSize = m.lnSize * ALen(m.toStruct.&lcProperty)
			Endif

			Return m.lnSize

		Endwith
	ENDPROC


	*-- Returns a string representing this member's property's value, to be appended to a string to be passed to a DLL function as a struct.
	PROCEDURE getstring
		*===================================================================
		* Returns a string representing this member's property's value, to
		* be placed in a struct which is passed to a DLL function.
		* Returns "" on error.
		*===================================================================
		Lparameters toStruct, toMemory
		With This

			* validate parameters
			Assert Type("m.toStruct.Name") == 'C'
			If Type("m.toStruct.Name") != 'C'
				Return .F.
			Endif
			Assert Type("m.toMemory.Name") == 'C'
			If Type("m.toMemory.Name") != 'C'
				Return .F.
			Endif

			Local lcString
			Local lu

			If Not .lIsArray
				* get the value
				lu = Eval("m.toStruct." + .cProperty)
				* convert it to a string
				lcString = .GetElementString(m.toStruct, m.toMemory, m.lu, 1)
			Else
				Local lnIndex
				lcString = ""
				Local lcProperty
				lcProperty = .cProperty
				For lnIndex = 1 to ALen(m.toStruct.&lcProperty)
					* get the value
					lu = Eval("m.toStruct." + .cProperty + "[" + Str(m.lnIndex) + "]")
					* convert it to a string
					Local lcElString
					lcElString = .GetElementString( ;
						m.toStruct, ;
						m.toMemory, ;
						m.lu, ;
						m.lnIndex ;
					)
					Assert Len(m.lcElString) > 0
					If Not (Len(m.lcElString) > 0)
						lcString = ""
						Exit
					Endif
					* add the string to the final destination
					lcString = m.lcString + m.lcElString
				Endfor
			Endif

			Return m.lcString

		EndWith
	ENDPROC


	*-- Updates this member's property value from a string
	PROCEDURE setstring
		*===================================================================
		* Updates this member's property value from the passed string,
		* which has itself been updated after being passed to a DLL
		* function.
		* Returns success.
		*===================================================================
		Lparameters toStruct, toMemory, tcMember
		With m.This

			* validate parameters
			Assert Type("m.toStruct.Name") == 'C'
			If Type("m.toStruct.Name") != 'C'
				Return .F.
			Endif
			Assert Type("m.toMemory.Name") == 'C'
			If Type("m.toMemory.Name") != 'C'
				Return .F.
			Endif
			Assert Type("m.tcMember") == 'C'
			If Type("m.tcMember") != 'C'
				Return .F.
			Endif
			Assert Len(m.tcMember) = .SizeOf(m.toStruct)
			If Len(m.tcMember) != .SizeOf(m.toStruct)
				Return .F.
			Endif

			If Not .lIsArray
				Return .SetElementString(m.toStruct, m.toMemory, m.tcMember, 1)
			Else
				Local lnIndex
				Local lcProperty
				lcProperty = .cProperty
				For lnIndex = 1 to ALen(m.toStruct.&lcProperty)
					Assert Len(m.tcMember) > 0
					If Not (Len(m.tcMember) > 0)
						Return .F.
					Endif
					Local lcValue
					lcValue = Left(m.tcMember, .ElementSize(m.toStruct))

					If Not .SetElementString(m.toStruct, m.toMemory, m.lcValue, m.lnIndex)
						Return .F.
					Endif

					* strip off the element
					tcMember = SubStr(m.tcMember, .ElementSize(m.toStruct) + 1)
				Endfor
			Endif

		EndWith
	ENDPROC


	*-- Return the size in bytes of this member's data
	PROTECTED PROCEDURE datasize
		*====================================================================
		* Returns size of this member's actual data, not necessarily its
		* representation in the struct (which can be a pointer to the data).
		*====================================================================
		Lparameters toStruct, tnIndex
		With This

			Return .nElementSize

		Endwith
	ENDPROC


	*-- Update the associated property with data from a string.
	PROTECTED PROCEDURE setproperty
		*===================================================================
		* Updates this member's property value from the passed string,
		* which has itself been updated after being passed to a DLL
		* function.
		* Returns success.
		*===================================================================
		Lparameters toStruct, tcMember, tnIndex
		With m.This

			* validate parameters
			Assert Type("m.toStruct.Name") == 'C'
			If Type("m.toStruct.Name") != 'C'
				Return .F.
			Endif
			Assert Type("m.tcMember") == 'C'
			If Type("m.tcMember") != 'C'
				Return .F.
			Endif
			Assert Type("m.tnIndex") == 'N' and m.tnIndex > 0
			If Not (Type("m.tnIndex") == 'N' and m.tnIndex > 0)
				Return .F.
			Endif

			* get the data, unless a null pointer
			If !IsNull(m.tcMember)
				tcMember = .ConvertStringToData(m.tcMember)
			Endif

			* update the property
			Local lcDest
			lcDest = "toStruct." + .cProperty
			If .lIsArray
				lcDest = m.lcDest + "[" + Str(m.tnIndex) + "]"
			Endif
			Store m.tcMember to (lcDest)

		EndWith
	ENDPROC


	*-- Allocates and returns pointer to property string.
	PROTECTED PROCEDURE makepointer
		*===================================================================
		* Allocates memory for this property's string, saves pointer to it
		* and its size, and returns the string representation of the
		* pointer.
		*===================================================================
		Lparameters tcMember, tnSize, toMemory, tnIndex
		With This

			* validate parameters
			Assert Type("m.tcMember") == 'C' and Len(m.tcMember) > 0
			If Not (Type("m.tcMember") == 'C' and Len(m.tcMember) > 0)
				Return ""
			Endif
			Assert Type("m.toMemory.Name") == 'C'
			If Type("m.toMemory.Name") != 'C'
				Return ""
			Endif
			Assert Type("m.tnSize") == 'N' and m.tnSize > 0
			If Not (Type("m.tnSize") == 'N' and m.tnSize > 0)
				Return ""
			Endif
			Assert Type("m.tnIndex") == 'N' and m.tnIndex > 0
			If Not (Type("m.tnIndex") == 'N' and m.tnIndex > 0)
				Return ""
			Endif

			* get memory
			Local lnAddress

			* enough memory--use it
			If .aMemory[m.tnIndex, ccMemorySize] >= m.tnSize
				lnAddress = .aMemory[m.tnIndex, ccMemoryAddress]

			Else
				* previous allocation was too small--free it
				If .aMemory[m.tnIndex, ccMemoryAddress] != 0
					m.toMemory.FreeMem(.aMemory[m.tnIndex, ccMemoryAddress])
				Endif
				* get new allocation
				lnAddress = m.toMemory.Alloc(m.tnSize)
				Assert m.lnAddress != 0
				If m.lnAddress == 0
					Return ""
				Endif
			Endif

			* copy the string to the memory
			Local llOK
			llOK = m.toMemory.PutMem(m.lnAddress, m.tcMember)
			Assert !Empty(m.llOK)
			If Empty(m.llOK)
				Return ""
			Endif

			* save the pointer and its size
			.aMemory[m.tnIndex, ccMemoryAddress]= m.lnAddress
			.aMemory[m.tnIndex, ccMemorySize]	= m.tnSize

			* return the pointer, as a string
			Return FLL_LongToChar(m.lnAddress)

		Endwith
	ENDPROC


	*-- Returns a null pointer
	PROTECTED PROCEDURE makenullpointer
		*====================================================================
		* Returns a null pointer, and frees existing allocation
		*====================================================================
		LParameters toMemory, tnIndex
		With This

			*-----------------------------------------------------------------
			* validate parameters
			*-----------------------------------------------------------------
			Assert Type("toMemory.Name") == 'C'
			If Type("toMemory.Name") != 'C'
				Return ""
			Endif
			Assert Type("m.tnIndex") == 'N' and m.tnIndex > 0
			If not (Type("m.tnIndex") == 'N' and m.tnIndex > 0)
				Return ""
			Endif

			*-----------------------------------------------------------------
			* remove the current allocation
			*-----------------------------------------------------------------
			If not .aMemory[m.tnIndex, ccMemoryAddress] == 0
				m.toMemory.FreeMem(.aMemory[m.tnIndex, ccMemoryAddress])
			Endif
			.aMemory[m.tnIndex, ccMemoryAddress]	= 0
			.aMemory[m.tnIndex, ccMemorySize]		= 0

			*-----------------------------------------------------------------
			* a null pointer simply has the value 0
			*-----------------------------------------------------------------
			Return FLL_LongToChar(0)

		Endwith
	ENDPROC


	*-- Returns string containing pointer contents (unconverted)
	PROTECTED PROCEDURE getpointercontents
		*===================================================================
		* Extracts and returns the correct amount of data from a pointer.
		* Returns "" on error.
		*===================================================================
		Lparameters toMemory, tnAddress, tnSize

			* validate parameters
			Assert Type("m.toMemory.Name") == 'C'
			If Type("m.toMemory.Name") != 'C'
				Return ""
			Endif
			Assert Type("m.tnAddress") == 'N' and m.tnAddress != 0
			If Type("m.tnAddress") != 'N' or m.tnAddress == 0
				Return ""
			Endif
			Assert Type("m.tnSize") == 'N' and m.tnSize != 0
			If Type("m.tnSize") != 'N' or m.tnSize == 0
				Return ""
			Endif

		Return toMemory.GetMem( m.tnAddress, m.tnSize )
	ENDPROC


	*-- Returns string for a pointer or value
	PROTECTED PROCEDURE getelementstring
		*===================================================================
		* Returns a string representing a value, to be placed in a struct
		* which is passed to a DLL function.
		* Returns "" on error.
		*===================================================================
		Lparameters toStruct, toMemory, tuValue, tnIndex
		With This

			*-----------------------------------------------------------------
			* validate parameters
			*-----------------------------------------------------------------
			Assert Type("m.toStruct.Name") == 'C'
			If Type("m.toStruct.Name") != 'C'
				Return ""
			Endif
			Assert Type("m.toMemory.Name") == 'C'
			If Type("m.toMemory.Name") != 'C'
				Return ""
			Endif
			Assert Type("m.tnIndex") == 'N' and m.tnIndex > 0
			If Not (Type("m.tnIndex") == 'N' and m.tnIndex > 0)
				Return ""
			Endif

			* check for a null pointer
			If .lIsPointer and IsNull( m.tuValue )
				Return .MakeNullPointer( m.toMemory, m.tnIndex )
			Endif

			* convert the data to a string

			* get the size
			Local lnSize
			lnSize = .DataSize( m.toStruct, m.tnIndex )
			Assert m.lnSize > 0
			If m.lnSize <= 0
				Return ""
			Endif

			* convert the value
			Local m.lcString
			lcString = .ConvertDataToString( m.tuValue, m.lnSize )
			Assert Type("m.lcString") == 'C' and Len(m.lcString) > 0
			If Type("m.lcString") != 'C' or Len(m.lcString) == 0
				Return ""
			Endif

			* return the string representation of the struct member
			If .lIsPointer
				Return .MakePointer( ;
					m.lcString, ;
					m.lnSize, ;
					m.toMemory, ;
					m.tnIndex ;
				)
			Else
				Return m.lcString
			Endif

		EndWith
	ENDPROC


	*-- Sets the value of the property, or one element if an array
	PROTECTED PROCEDURE setelementstring
		*===================================================================
		* Updates a value (either the property or one element of the array
		* if the property is an array) from the passed string
		* Returns success.
		*===================================================================
		Lparameters toStruct, toMemory, tcValue, tnIndex
		With m.This

			* validate parameters
			Assert Type("m.toStruct.Name") == 'C'
			If Type("m.toStruct.Name") != 'C'
				Return .F.
			Endif
			Assert Type("m.toMemory.Name") == 'C'
			If Type("m.toMemory.Name") != 'C'
				Return .F.
			Endif
			Assert Type("m.tcValue") == 'C'
			If Type("m.tcValue") != 'C'
				Return .F.
			Endif
			Assert Type("m.tnIndex") == 'N' and m.tnIndex > 0
			If Not (Type("m.tnIndex") == 'N' and m.tnIndex > 0)
				Return .F.
			Endif

			If .lIsPointer
				* convert the string to a pointer
				Local lnAddress
				lnAddress = FLL_CharToLong(m.tcValue)

				* save the old size
				Local lnSize
				lnSize = .aMemory[m.tnIndex, ccMemorySize]

				* if the address has changed, free the old memory
				If m.lnAddress != .aMemory[m.tnIndex, ccMemoryAddress]
					m.toMemory.FreeMem(.aMemory[m.tnIndex, ccMemoryAddress])
					.aMemory[m.tnIndex, ccMemoryAddress]= 0
					.aMemory[m.tnIndex, ccMemorySize]	= 0
				Endif

				If m.lnAddress == 0
					* null pointer
					tcValue = Null
				Else
					* get the contents of that address
					tcValue = .GetPointerContents(m.toMemory, m.lnAddress, ;
							m.lnSize)
				Endif
			Endif

			* actually assign the value to the property
			.SetProperty(m.toStruct, m.tcValue, m.tnIndex)

		EndWith
	ENDPROC


	*-- Size of data or one element of array, in struct.
	PROTECTED PROCEDURE elementsize
		*====================================================================
		* Return the size in bytes of this member in the struct that
		* will be passed to a DLL function. If the member is an array,
		* returns the size of one element
		*====================================================================
		Lparameters toStruct
		With This

			* validate parameters
			Assert Type("m.toStruct") == 'O' and Not IsNull(m.toStruct)
			If Not (Type("m.toStruct") == 'O' and Not IsNull(m.toStruct))
				Return 0
			Endif

			Local lnSize
			If .lIsPointer
				lnSize = 4
			Else
				lnSize = .DataSize(m.toStruct, 1)
			Endif

			Return m.lnSize

		Endwith
	ENDPROC


	PROCEDURE Init
		*====================================================================
		* Parse common specifiers and strip them out
		*====================================================================
		Lparameters toStruct, trcSpec
		With This

			* validate parameters
			Assert Type("m.toStruct.Name") == 'C'
			If Type("m.toStruct.Name") != 'C'
				Return .F.
			Endif
			Assert Type("m.trcSpec") == 'C'
			If Type("m.trcSpec") != 'C'
				Return .F.
			Endif

			* need at least one char for type, one char for colon
			* and one char for property name
			Assert Len(m.trcSpec) >= 3
			If Len(m.trcSpec) < 3
				Return .F.
			Endif

			* p == pointer
			If Left(m.trcSpec, 1) == 'P'
				.lIsPointer = .T.
				trcSpec = SubStr(m.trcSpec, 2)
			Endif

			* property name

			* find the colon
			Local lnColonPos
			lnColonPos = At(':', m.trcSpec)
			Assert m.lnColonPos != 0
			If m.lnColonPos == 0
				Return .F.
			Endif

			* extract the property name
			.cProperty = SubStr(m.trcSpec, m.lnColonPos + 1)
			Assert !Empty(.cProperty)
			If Empty(.cProperty)
				Return .F.
			Endif

			* remove the property name from the spec
			trcSpec = Left(m.trcSpec, m.lnColonPos - 1)
			Assert !Empty(m.trcSpec)
			If Empty(m.trcSpec)
				Return .F.
			Endif

			* determine whether the property is an array
			* NOTE: in this version, the array dimensions can't change
			.lIsArray = Type("m.toStruct." + .cProperty + "[1]") != 'U'

			* initialize memory array
			Local lnEls, lcProperty
			lcProperty = .cProperty
			If .lIsArray
				lnEls = ALen(m.toStruct.&lcProperty)
			Else
				lnEls = 1
			Endif
			Dimension .aMemory[m.lnEls, .nMemoryCols]
			.aMemory = 0

		Endwith
	ENDPROC


	*-- Receives a value and converts it to a string suitable for inserting in a C struct
	PROTECTED PROCEDURE convertdatatostring
	ENDPROC


	*-- Receives a string suitable for inserting in a C struct and converts it to a value
	PROTECTED PROCEDURE convertstringtodata
	ENDPROC


ENDDEFINE
*
*-- EndDefine: structmember
**************************************************


**************************************************
*-- Class:        structcharmember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- ParentClass:  structmember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- BaseClass:    label
*-- Time Stamp:   07/07/99 10:36:11 PM
*
#INCLUDE "e:\my work\foxpro\projects\common\includes\structmember.h"
*
DEFINE CLASS structcharmember AS structmember


	Caption = "StructCharMember"
	*-- Do we use a double-byte character set?
	PROTECTED lisunicode
	lisunicode = .F.
	*-- Decides whether to fill out the allocation with nulls in GetString and remove them in SetString
	PROTECTED lisnullfilled
	lisnullfilled = .F.
	*-- Length of buffer in characters.
	PROTECTED nlen
	nlen = 0
	nelementsize = 1
	Name = "structcharmember"


	PROCEDURE convertdatatostring
		*===================================================================
		* Returns a string representing a value
		* Returns "" on error.
		*===================================================================
		Lparameters tu, tnLen
		With This

			* validate parameters
			Assert Type("m.tu") == 'C'
			If Type("m.tu") != 'C'
				Return ""
			Endif
			Assert Type("m.tnLen") == 'N' and m.tnLen > 0
			If Type("m.tnLen") != 'N' or m.tnLen == 0
				Return ""
			Endif

			* add nulls
			Local lcString
			If .lIsUnicode
				lcString = StrConv( StrConv(m.tu,1), 5 )
			ELse
				lcString = m.tu
			Endif
			lcString = PadR( m.lcString, m.tnLen, Chr(0) )
			Return m.lcString

		EndWith
	ENDPROC


	PROCEDURE Init
		*====================================================================
		* Parse the type spec to set our properties
		* char-spec ::== [p] [x] ([0]c)|z [length] : property-name
		*====================================================================
		Lparameters toStruct, trcSpec
		With This

			* let the super get its properties, and strip their specifiers
			* out of the spec
			If !DoDefault(toStruct, @trcSpec)
				Return .F.
			Endif

			* X == Unicode
			If Left(m.trcSpec, 1) == 'X'
				If toStruct.GetOS() == "NT"
					.lIsUnicode = .T.
					.nElementSize = 2
				Endif
				trcSpec = SubStr(m.trcSpec, 2)
			Endif

			* 2 == double byte character (always)
			If Left(m.trcSpec, 1) == '2'
				.lIsUnicode = .T.
				.nElementSize = 2
				trcSpec = SubStr(m.trcSpec, 2)
			Endif

			* length
			Local ln
			ln = 1
			Do While IsDigit(Right(m.trcSpec, m.ln)) and ;
					m.ln < Len(m.trcSpec)
				ln = m.ln + 1
			Enddo
			ln = m.ln - 1
			If m.ln != 0
				.nLen = Val(Right(m.trcSpec, m.ln))
				trcSpec = Left(m.trcSpec, Len(m.trcSpec) - m.ln)
			Endif

			* if array, must have fixed length members
			If .lIsArray
				Assert .nLen > 0 Or .lIsPointer
				If Not (.nLen > 0 Or .lIsPointer)
					Return .F.
				Endif
			Endif

		Endwith
	ENDPROC


	PROCEDURE datasize
		*====================================================================
		* Return the length, in bytes, of this property's data
		*====================================================================
		Lparameters toStruct, tnIndex

		With This

			* validate parameters
			Assert Type("m.toStruct.Name") == 'C'
			If Type("m.toStruct.Name") != 'C'
				Return 0
			Endif
			Assert Type("m.tnIndex") == 'N' and m.tnIndex > 0
			If Not (Type("m.tnIndex") == 'N' and m.tnIndex > 0)
				Return 0
			Endif

			* if length was included in the spec, use that
			If Type(".nLen") == 'N' and .nLen != 0
				Return .nLen * .nElementSize
			Else
				* get the current value of the string
				Local lcItem
				lcItem = "m.toStruct." + .cProperty
				If .lIsArray
					lcItem = m.lcItem + "[" + Str(m.tnIndex) + "]"
				Endif
				Local lc
				lc = Eval(m.lcItem)
				Assert Type("m.lc") == 'C'
				If Type("m.lc") != 'C'
					Return 0
				Endif

				Return Len(m.lc) * .nElementSize

			Endif

		Endwith
	ENDPROC


	PROCEDURE convertstringtodata
		*===================================================================
		* Returns a value from a string
		*===================================================================
		Lparameters tcMember
		With m.This

			* validate parameters
			Assert Type("m.tcMember") == 'C'
			If Type("m.tcMember") != 'C'
				Return .F.
			Endif

			* remove nulls, if necessary
			Local lcMember
			If .lIsUnicode
				lcMember = StrConv( m.tcMember, 2 )
			Else
				lcMember = m.tcMember
			ENdif
			If .lIsNullFilled
				m.lcMember = ChrTran(m.lcMember, Chr(0), "")
			Endif

			Return m.lcMember

		EndWith
	ENDPROC


ENDDEFINE
*
*-- EndDefine: structcharmember
**************************************************


**************************************************
*-- Class:        structcharbufmember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- ParentClass:  structcharmember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- BaseClass:    label
*-- Time Stamp:   07/07/99 10:36:09 PM
*
#INCLUDE "e:\my work\foxpro\projects\common\includes\structmember.h"
*
DEFINE CLASS structcharbufmember AS structcharmember


	Caption = "StructCharBufMember"
	Name = "structcharbufmember"


	PROCEDURE Init
		*====================================================================
		* Parse the type spec to set our properties
		* char-spec ::== [p] [x] ([0]c)|z [length] : property-name
		*====================================================================
		Lparameters toStruct, trcSpec

		With This

			* let the super get its properties, and strip their specifiers
			* out of the spec
			If !DoDefault(toStruct, @trcSpec)
				Return .F.
			Endif

			* 0 == null filled
			If Left(m.trcSpec, 1) == '0'
				.lIsNullFilled = .T.
				trcSpec = SubStr(m.trcSpec, 2)
			Endif

		Endwith
	ENDPROC


ENDDEFINE
*
*-- EndDefine: structcharbufmember
**************************************************


**************************************************
*-- Class:        structstringmember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- ParentClass:  structcharmember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- BaseClass:    label
*-- Time Stamp:   12/15/13 07:05:13 PM
*
#INCLUDE "e:\my work\foxpro\projects\common\includes\structmember.h"
*
DEFINE CLASS structstringmember AS structcharmember


	Caption = "StructStringMember"
	lisnullfilled = .T.
	Name = "structstringmember"


	PROCEDURE convertstringtodata
		*====================================================================
		* We cannot handle a NULL terminated string just like a NULL filled
		* string, because there might be non-sense after the terminating
		* NULL. Therefore we look for NULL and cut the string accordingly.
		*====================================================================
		LParameter tcData
		With This

			*-----------------------------------------------------------------
			* Determine position of terminating NULL. Because of Unicode we
			* might have to look for more than one CHR(0).
			*-----------------------------------------------------------------
			Local lnPosition
			lnPosition = At( Replicate(Chr(0),.nElementSize), m.tcData )

			*-----------------------------------------------------------------
			* Cut the string
			*-----------------------------------------------------------------
			Local lcData
			If m.lnPosition == 0
				lcData = m.tcData
			Else
				lcData = Left( m.tcData, m.lnPosition-1 )
			Endif

			*-----------------------------------------------------------------
			* Convert the string
			*-----------------------------------------------------------------
			Return DoDefault( m.lcData )

		Endwith
	ENDPROC


	PROCEDURE getpointercontents
		*===================================================================
		* Extracts and returns the correct amount of data from a pointer.
		* Returns "" on error.
		*===================================================================
		Lparameters toMemory, tnAddress, tnSize
		With This

			* validate parameters
			Assert Type("m.toMemory.Name") == 'C'
			If Type("m.toMemory.Name") != 'C'
				Return ""
			Endif
			Assert Type("m.tnAddress") == 'N' and m.tnAddress != 0
			If Type("m.tnAddress") != 'N' or m.tnAddress == 0
				Return ""
			Endif

			* only variable-length strings need special handling
			If .nLen != 0
				Return DoDefault(m.toMemory, m.tnAddress, m.tnSize)
			Endif

			* find the length of the string
			If .nElementSize == 1
				tnSize = (apilstrlen(m.tnAddress) + 1) * .nElementSize
			Else
				tnSize = (apilstrlenW(m.tnAddress) + 1) * .nElementSize
			Endif

			* copy the string
			Return m.toMemory.GetMem(m.tnAddress, m.tnSize)

		Endwith
	ENDPROC


	PROCEDURE datasize
		*====================================================================
		* Return the length, in bytes, of this property's data
		*====================================================================
		Lparameters toStruct, tnIndex

		With This

			Local lnSize
			lnSize = DoDefault(m.toStruct, m.tnIndex)
			* if size wasn't specified, add one character for trailing null
			If .nLen == 0
				lnSize = m.lnSize + .nElementSize
			Endif

			Return m.lnSize

		Endwith
	ENDPROC


ENDDEFINE
*
*-- EndDefine: structstringmember
**************************************************


**************************************************
*-- Class:        structnumbermember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- ParentClass:  structmember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- BaseClass:    label
*-- Time Stamp:   07/07/99 10:37:05 PM
*
#INCLUDE "e:\my work\foxpro\projects\common\includes\structmember.h"
*
DEFINE CLASS structnumbermember AS structmember


	Caption = "StructNumberMember"
	*-- Treat property value as signed?
	PROTECTED lissigned
	lissigned = .T.
	Name = "structnumbermember"


	PROCEDURE convertstringtodata
		*===================================================================
		* Returns a value from a string
		*===================================================================

		Lparameters tcMember

		With m.This

			* validate parameters
			Assert Type("m.tcMember") == 'C'
			If Type("m.tcMember") != 'C'
				Return .F.
			Endif

			* return the converted value
			Local lcConversion
			lcConversion = .cSetStringConversion
			Return &lcConversion(m.tcMember)

		EndWith
	ENDPROC


	PROCEDURE Init
		*====================================================================
		* Parse the type spec to set our properties
		* number-spec ::== [p] [s|u] l|w|b|d : property-name
		*====================================================================
		Lparameters toStruct, trcSpec

		With This

			* let the super get its properties, and strip their specifiers
			* out of the spec
			If !DoDefault(toStruct, @trcSpec)
				Return .F.
			Endif

			* S = signed (default) U = unsigned
			If Left(m.trcSpec, 1) $ "SU"
				.lIsSigned = Left(m.trcSpec, 1) == 'S'
				trcSpec = SubStr(m.trcSpec, 2)
			Endif

		EndWith
	ENDPROC


	PROCEDURE convertdatatostring
		*===================================================================
		* Returns a string representing a value
		* Returns "" on error.
		*===================================================================

		Lparameters tu, tnLen

		With This

			* validate parameters
			Assert Type("m.tu") == 'N'
			If Type("m.tu") != 'N'
				Return ""
			Endif

			* return the converted string
			local lcConversion
			lcConversion = .cGetStringConversion
			Return &lcConversion(m.tu)

		EndWith
	ENDPROC


ENDDEFINE
*
*-- EndDefine: structnumbermember
**************************************************


**************************************************
*-- Class:        structbytemember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- ParentClass:  structnumbermember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- BaseClass:    label
*-- Time Stamp:   07/07/99 10:36:06 PM
*
#INCLUDE "e:\my work\foxpro\projects\common\includes\structmember.h"
*
DEFINE CLASS structbytemember AS structnumbermember


	Caption = "StructByteMember"
	nelementsize = 1
	Name = "structbytemember"


	PROCEDURE Init
		*====================================================================
		* Parse the type spec, and set properties
		*====================================================================
		Lparameters toStruct, trcSpec

		With This

			* let the super get its properties, and strip their specifiers
			* out of the spec
			If !DoDefault(toStruct, @trcSpec)
				Return .F.
			Endif

			* set conversion functions
			If .lIsSigned
				.cSetStringConversion = "FLL_CharToSByte"
			Else
				.cSetStringConversion = "FLL_CharToByte"
			Endif
			.cGetStringConversion = "FLL_ByteToChar"

		Endwith
	ENDPROC


ENDDEFINE
*
*-- EndDefine: structbytemember
**************************************************


**************************************************
*-- Class:        structdoublemember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- ParentClass:  structnumbermember (e:\my work\foxpro\projects\common\classes\struct.vcx)
*-- BaseClass:    label
*-- Time Stamp:   07/07/99 10:36:13 PM
*
#INCLUDE "e:\my work\foxpro\projects\common\includes\structmember.h"
*
DEFINE CLASS structdoublemember AS structnumbermember


	Caption = "StructDoubleMember"
	nelementsize = 4
	Name = "structdoublemember"


	PROCEDURE Init
		*====================================================================
		* Parse the type spec, and set properties
		*====================================================================
		Lparameters toStruct, trcSpec

		With This

			* let the supe



[Koen Piller]

Hi Greg,

That is a lot of code just to perform my task! I think I will stay with the oleRTF which works as a charm.
Thanks for your input.

Stay healthy.

Koen
