Ns700 digital xdp

Status
Not open for further replies.

patel1

Technical User
Dec 6, 2020
14
CA
Hi
I have ns700 configured for 36 analog ext and 2 digital.
One digital port is taken by main reception.
I want to add two kx t0155 to system can any body help.
I am not a programmer will need step by step instructions.
Thankyou

You can add only one 0155 CS.

There are no stupid questions, there are only stupid answers!

Can I use the other cs in xdp mode.
Is there any way to add two cs without adding digital cards.

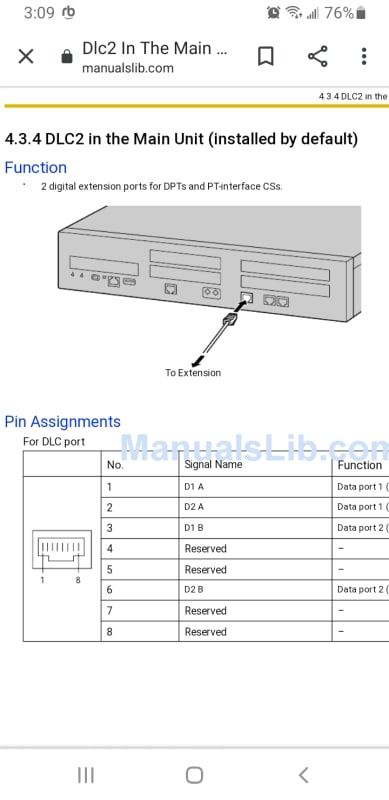

I stand corrected, kizo rightly stated you can connect one traditional cs to the dlc2

hi
so i can connect only one cs.
thankyou really appreciate your feed back

Need another dlc card if you wish to add more cs, but best using IPCS instead.

Status
Not open for further replies.
