i + 1 loop with conditions

[remeng]

Hi All;

I am sure that this is an easy one, but I forgot how to finish this code off.

The goal is for a user to enter a starting number (i) between 1 to 120. If the number is within the range of 1 to 120, it runs the IF statement. Once the IF statement is run, I'd like to perform a Next i operation. The code would end once i is greater than 120. The problem is where to put the For and Next statements.

Here is my code:

Sub multi_panel_2()

Dim i As Single

i = InputBox("What panel number would you like to start with?", "Starting Panel Number")


    If i >= 1 And i <= 120 Then

         confirm = MsgBox("Are you ready to run file " & "panel" & i & ".tap" & " ?", vbOKCancel)

            If confirm = 1 Then

                MsgBox ("run " & i & ".tap") ' placeholder for file call

                ' loadrun("c:\CNC\panel" & i & ".tap")
                ' code "M00"


            Else: End If 'place holder for  code "M30" End If



    Else: MsgBox ("You entered Panel " & i & ".  " & "Panel number is outside the range of 1 to 120.")

        End If


End Sub



[Andrzejek]

It would help if you would show your actual code, so we would know what you have at this moment.


---- Andy

There is a great need for a sarcasm font.



[remeng]

Here you go Andy. This is my last personal version before any recommended changes. As mentioned, it gets hung up at the Next I statement. There aren't any errors though.

Sub multi_panel_3() ''' Historic

Dim i As Integer
Dim x As Integer

x = InputBox("What panel number would you like to start with?", "Starting Panel Number")

If x >= 1 And x <= 120 Then

        confirm = MsgBox("Are you ready to run file " & "panel" & x & ".tap" & " ?", vbOKCancel)

        If confirm = 1 Then



            continue = MsgBox("run " & x & ".tap", vbOKCancel)  ' placeholder for file call

            If continue = 1 Then

                ' loadrun("c:\CNC\panel" & i & ".tap")
                ' code "M00"
            For i = x To 120

            Next i

            End If

        Else: End If 'place holder for  code "M30" End If

Else
    MsgBox ("You entered Panel " & x & ".  " & "Panel number is outside the range of 1 to 120.")
End If

End Sub



[SkipVought]

Your loadrun statement was not in the loop!
Of course that line of code needs to be un-commented.

'

            If continue = 1 Then


            For i = x To 120
                 ' loadrun("c:\CNC\panel" & i & ".tap")
                ' code "M00"
            Next i

            End If

Skip,

_{Just traded in my OLD subtlety...
for a NUance!}
"The most incomprehensible thing about the universe is that it is comprehensible" A. Einstein



[remeng]

Hi Skip,

I though that CALL referenced a second macro. If I put a placeholder message, would that be a temp way to get around the MACH3 command line?

Thanks,

Mike



[Andrzejek]

My version of your code (very little difference), re-aligned, easier to read (IMO )

Sub multi_panel_3() [green]''' Historic[/green]

Dim i As Integer
Dim x As Integer

x = InputBox("What panel number would you like to start with?", "Starting Panel Number")

If x >= 1 And x <= 120 Then
    If 1 = MsgBox("Are you ready to run file " & "panel" & x & ".tap" & " ?", vbOKCancel) Then
        If 1 = MsgBox("run " & x & ".tap [highlight #FCE94F]to 120.tap[/highlight]", vbOKCancel) Then
            For i = x To 120[green]
                ' loadrun("c:\CNC\panel" & i & ".tap")
                ' code "M00"[/green]
            Next i
        End If
    End If [green]'place holder for  code "M30" End If[/green]
Else
    MsgBox ("You entered Panel " & x & ".  " & "Panel number is outside the range of 1 to 120.")
End If

End Sub

---- Andy

There is a great need for a sarcasm font.



[remeng]

Hi Andy,

Unfortunately this is for a CNC router so a physical part needs to be changed from file to file and the message boxes are needed. I need a message box to pop up for 2 reasons. 1, it allows the operator to confirm the correct file will be run next. 2, it allows for the machine to pause until the part is changed over from the machined part to the new part blank.

I hope this helps explain my thought process. If there wasn't a reason for the stops and message boxes, your code would work perfectly.

Any ideas now on what I can do to create the message box for the next part run confirmation to pop up before the NEXT statement (i+1)?

Thanks,

Mike



[SkipVought]

That "CALL" in my code was erroneous, copied from the last word of the previous comment. So sorry I failed to check my post before sending it off into the netosphere.

Bottom line: the code you want to actually run iteratively, must be within the For...Next loop.


Skip,

_{Just traded in my OLD subtlety...
for a NUance!}
"The most incomprehensible thing about the universe is that it is comprehensible" A. Einstein



[remeng]

Hi Skip,

No worries. I do that all the time. Could you post the code so I can review what you are educating me on? Everyone's code is all over the place.

Thanks for the help,

Mike



[SkipVought]

'

            If continue = 1 Then


            For i = x To 120
                ' loadrun("c:\CNC\panel" & i & ".tap")
                ' code "M00"
            Next i

            End If

Of course, you'll need to un-comment the loadrun statement.

Skip,

_{Just traded in my OLD subtlety...
for a NUance!}
"The most incomprehensible thing about the universe is that it is comprehensible" A. Einstein



[remeng]

Hi Skip,

I have one more issue. Here is my updated code. For the second continue MSGBOX, if it equals cancel, how do I run the M30 code and then quit the macro?

Sub multi_panel_5()

Dim i As Integer
Dim x As Integer

x = InputBox("What panel number would you like to start with?", "Starting Panel Number")

If x >= 1 And x <= 120 Then

        confirm = MsgBox("Are you ready to run file " & "panel" & x & ".tap" & " ?", vbOKCancel)

        If confirm = 1 Then



            continue = MsgBox("run " & x & ".tap", vbOKCancel)  ' placeholder for file call

            If continue = 1 Then

                ' loadrun("c:\CNC\panel" & i & ".tap")

                ' code "M00"



            For i = x To 120

                continue = MsgBox("run " & i & ".tap", vbOKCancel)  ' placeholder for file call

                ' loadrun("c:\CNC\panel" & i & ".tap")

                ' code "M00"

            Next i

            End If

        Else: End If 'place holder for  code "M30" End If

Else
    MsgBox ("You entered Panel " & x & ".  " & "Panel number is outside the range of 1 to 120.")
End If

End Sub



[Andrzejek]

> if it equals cancel, how do I run the M30 code and then quit the macro?
Why do you want to say: Cancel, but run the macro anyway?
I would say, if cancel, then quit the macro:

...
For i = x To 120
    continue = MsgBox("run " & i & ".tap", vbOKCancel)  ' placeholder for file call[blue]
    If continue  = 1 Then  [/blue]
        ' loadrun("c:\CNC\panel" & i & ".tap")
        ' code "M00"[blue]
    Else
        Exit Sub
    End If    [/blue]
Next i
...

---- Andy

There is a great need for a sarcasm font.



[SkipVought]

Now we are guessing at what your logic is based on your code, which may not be what you actually want. Have no idea what [highlight #FCE94F]'code "M00"[/highlight] is supposed to mean.

As an analyst, I'd sit down with you and ask what the logical flow of your process was, where the decision points in that process are. I'd ask those questions in different ways in order be certain I understood your requirements.

Sub multi_panel_5()

    Dim i As Integer
    Dim x As Integer

    x = InputBox("What panel number would you like to start with?", "Starting Panel Number")

    If x >= 1 And x <= 120 Then

            confirm = MsgBox("Are you ready to run file " & "panel" & x & ".tap" & " ?", vbOKCancel)

            If confirm = 1 Then

                For i = x To 120

                    continue = MsgBox("run " & i & ".tap", vbOKCancel)  ' placeholder for file call

                    If continue = 1 Then
                        ' loadrun("c:\CNC\panel" & i & ".tap")

                        ' code "M00"
                    Else
                        ' code "M00"
                        Exit For
                    End If

                Next i
            Else
                'code "M30"
            End If

    Else
        MsgBox ("You entered Panel " & x & ".  " & "Panel number is outside the range of 1 to 120.")
    End If

End Sub

Skip,

_{Just traded in my OLD subtlety...
for a NUance!}
"The most incomprehensible thing about the universe is that it is comprehensible" A. Einstein



[remeng]

Hi Skip,

The code is for Mach3 which is running my CNC router. I need to run different milling codes that use the same physical fixture. Each file (.tap) has a unique milling pattern.

I have 120 different files to run in sequential order.

MACH3 Codes and what they mean:

* Code M00 is the MACH3 software command telling the CNC router to start the motor and run the routine <- Need to confirm this but a different code would still use the same type of call out.
* Code M30 is the Mach3 software command telling the CNC router to turn off the motor and end the .tap file

Brief article on general G-Code: G-Code explaination

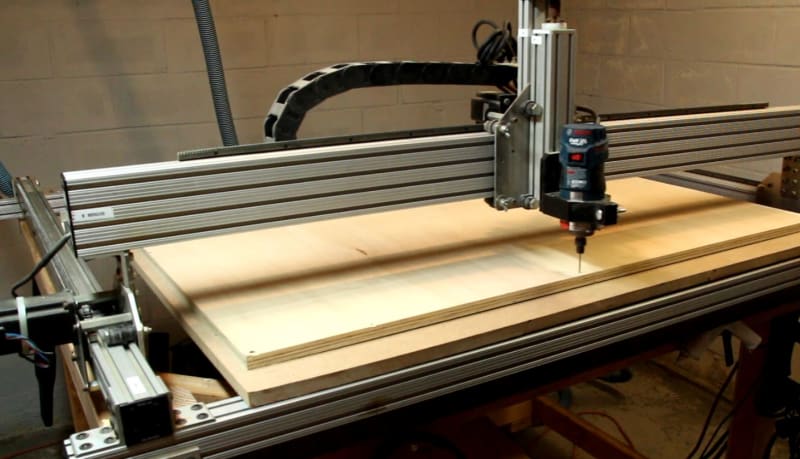

The CNC router:

Here is the general process:

1) The worker starts the VB macro in MACH3
2) The worker enters the file number they want to start with in a message box (1 thru 120; ok / cancel; if cancel run Code M30 and end macro)
3) The file name is confirmed in a new message box (ok / cancel; if cancel end macro)
4) When OK is pressed, the MACH3 file will open and run the G-Code (.tap file) then Code M00.
5) Once the .tap file finishes, i + 1 will bring up the next file. I want a new message box to confirm the file (i + 1); ok open i + 1 .tap file and run Code M00 / cancel; if cancel run Code M30 end macro

I used message boxes in some areas as placeholders since I don't want to test with .tap files until I can confirm that the macro is functioning correctly.

I hope this makes it more clear.



[SkipVought]

Well have you done a test run with my code?

Skip,

_{Just traded in my OLD subtlety...
for a NUance!}
"The most incomprehensible thing about the universe is that it is comprehensible" A. Einstein
