How To Setup Group pegging in Panasonic TD100 central

[GanGula]



[obtsystems]

What is pegging?

If it is ring in order of extension then use priority hunting and put the phone in order you want to ring



[kizo]

Paging group consists of extension user groups ( 3.Group/4 Paging group ).
One extension user group can belong to sever paging group.
To page dial *33xx ( xx is paging group nummber).
Extension user can choose not to receive paging announcements (4.Extension/ 1.Wired extension/ 1.Extension settings/ Option 6



[GanGula]

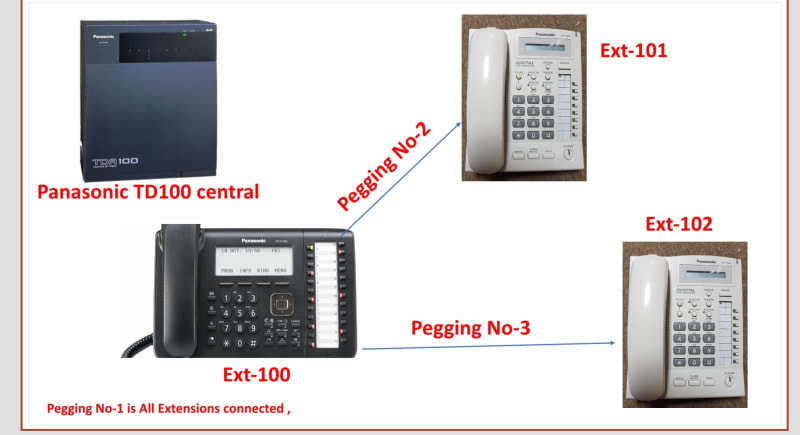

we installed Panasonic TD-100 central with 45 digital extensions
my costumer need 4 Groups for paging , How to create Group pegging
Group-1 *3301 All Extention to connect paging
Group-2 *3302 to connect (Ext 100,101,105,108,111)
Group-3 *3303 to connect (Ext 100,101,111,113,119)
Grop-4 *3304 to connect (Ext 100,101,120,122,125)

Please solve my problem



[daddybadger]

In 4 EXTENSION --> WIRED EXTENSION --> EXTENSION SETTINGS change the user group number to match those extensions that need to be in the same group. By default all are in group 1 bar ip extension which get placed in group 32.
