Hicom 150 E

Status
Not open for further replies.

Didake

Technical User
Aug 6, 2017
35
AR
Hi ;
Old PBX, but still giving service.
It presents me with the following problem: I have always used the software HIPATH 3000 Manager E, connecting with the PBX and making programming without difficulty.
From one day to the next I connect with the PBX as usual, but when I want to save the new programming
Click on Save or file Save, without problems, but when I want to move to another screen, a poster gives me a warning as if it were leaving without saving. When I go to the part of transferring the new KDS, the Delta Mode option does not appear, it cannot be checked

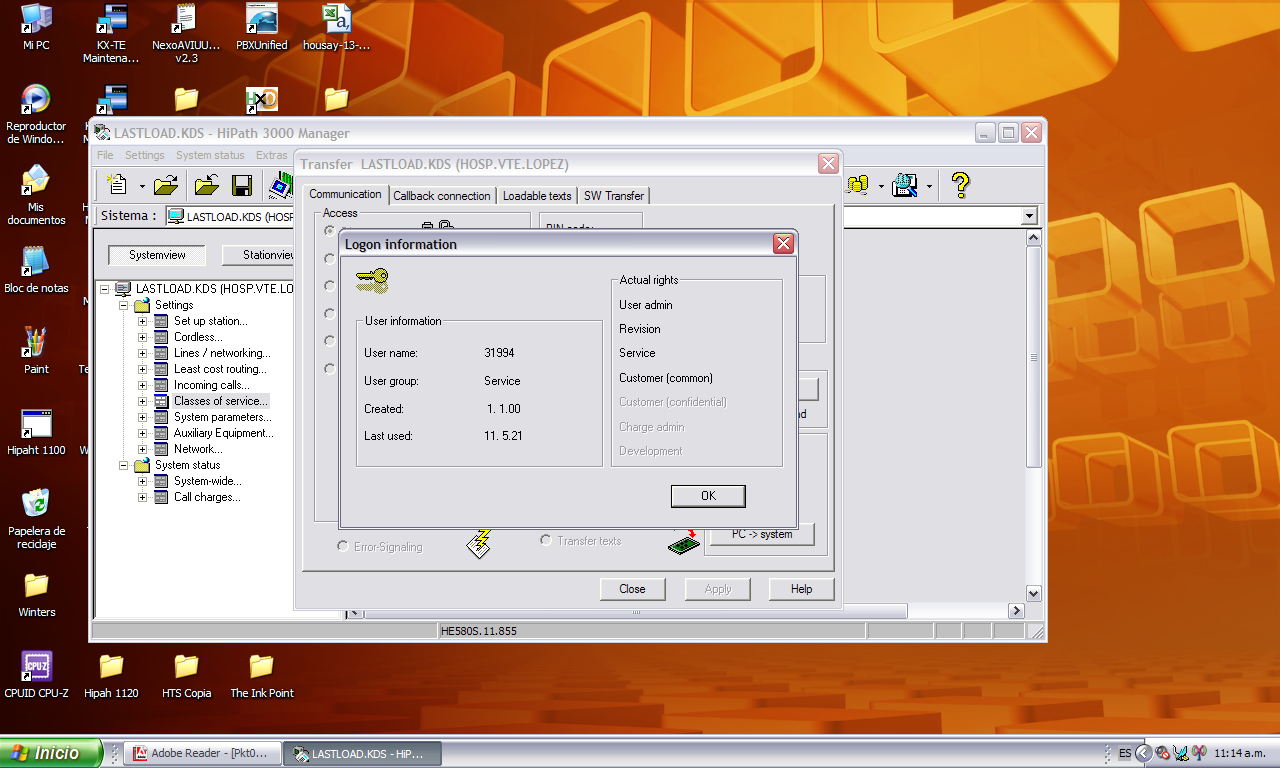

The permissions in registration information are fine, authorizing my user (31994) to make changes to the system
I have already restarted PBX and it still has the same defect...
Thanks in advance

Whoever does not resolve to cultivate the habit of thinking loses the greatest pleasure in life.

Try the latest to see if resolved
faq965-7883

Hello sbcsu. Thanks
I have been using the Hipath 3000 Manager E (Version 8; 5.7.0) without problems to modify schedules in a Hicom 150 control panel, and everything was working fine until a few days ago.
From one day to the next, I can communicate with the control panel and read the KDS (by serial connection, through the DB9 tab), but when I make changes and then save them with the Save button, wanting to move to another item in the programming I get a warning sign, which says that I am about to exit without saving and I am going to lose the changes ... (In registration information and current rights it appears:
- Admin users
- Revision
- System management
- General Administration)
One more detail in case that guides you: The option to check "Delta Mode" does not appear when I want to transfer the KDS from the PC to the central
I have reinstalled the program, even new versions of it, I also restarted the central and everything remains the same ...
What can be?


Whoever does not resolve to cultivate the habit of thinking loses the greatest pleasure in life.

It's been a while since I did any software on the 150 / 3000, but if I remember correctly, you need to upload the "delta" changes to the system before you save the KDS file to your PC.. I think once you do a save of the KDS then you lose the delta option...

In Manager, download your KDS from the system, make the configuration changes that you want, and then do the delta upload before you do a save.

Hope that works... That's how I remember it working.


sbcsu: Thank.s for you answer.


TipandRingtoSIP : Thank´s
how is delta loading done?

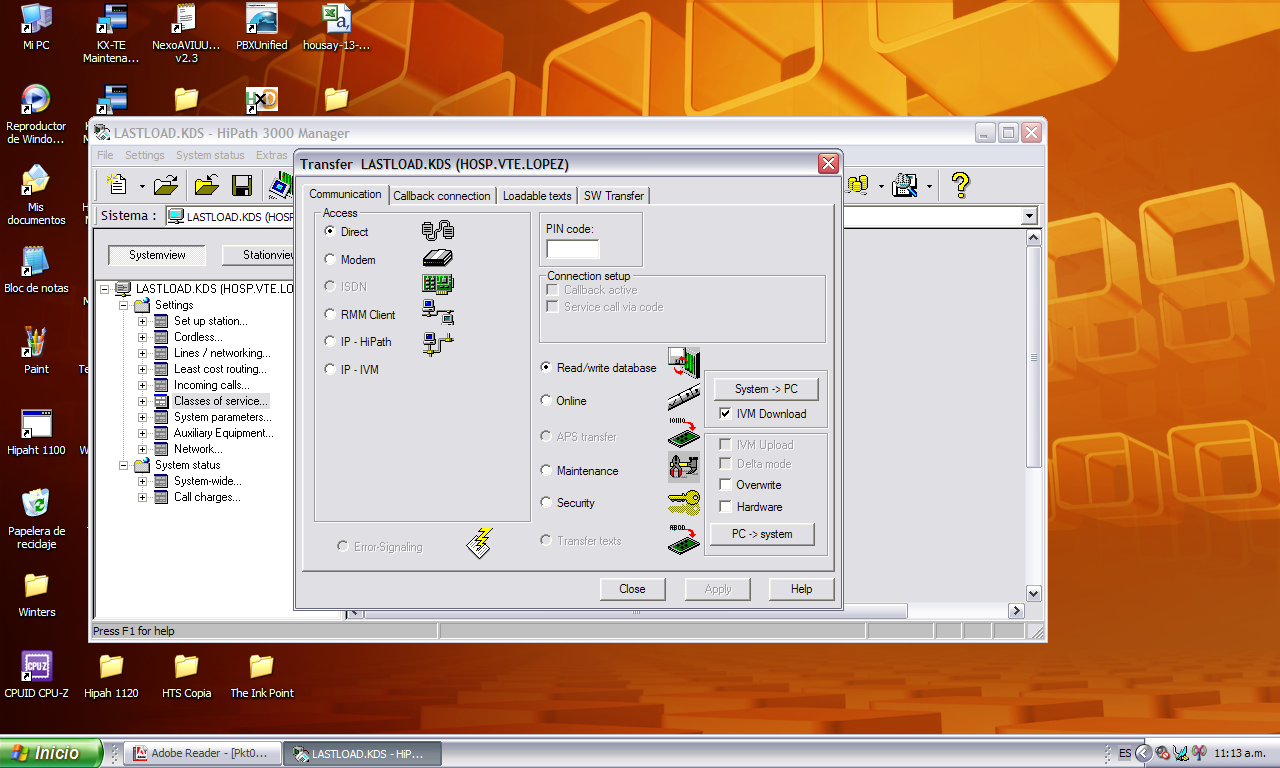

i upload this inage : As you can see there, the option to check Delta Mode does not appear...
As first I connect to the PBX by direct serial cable.

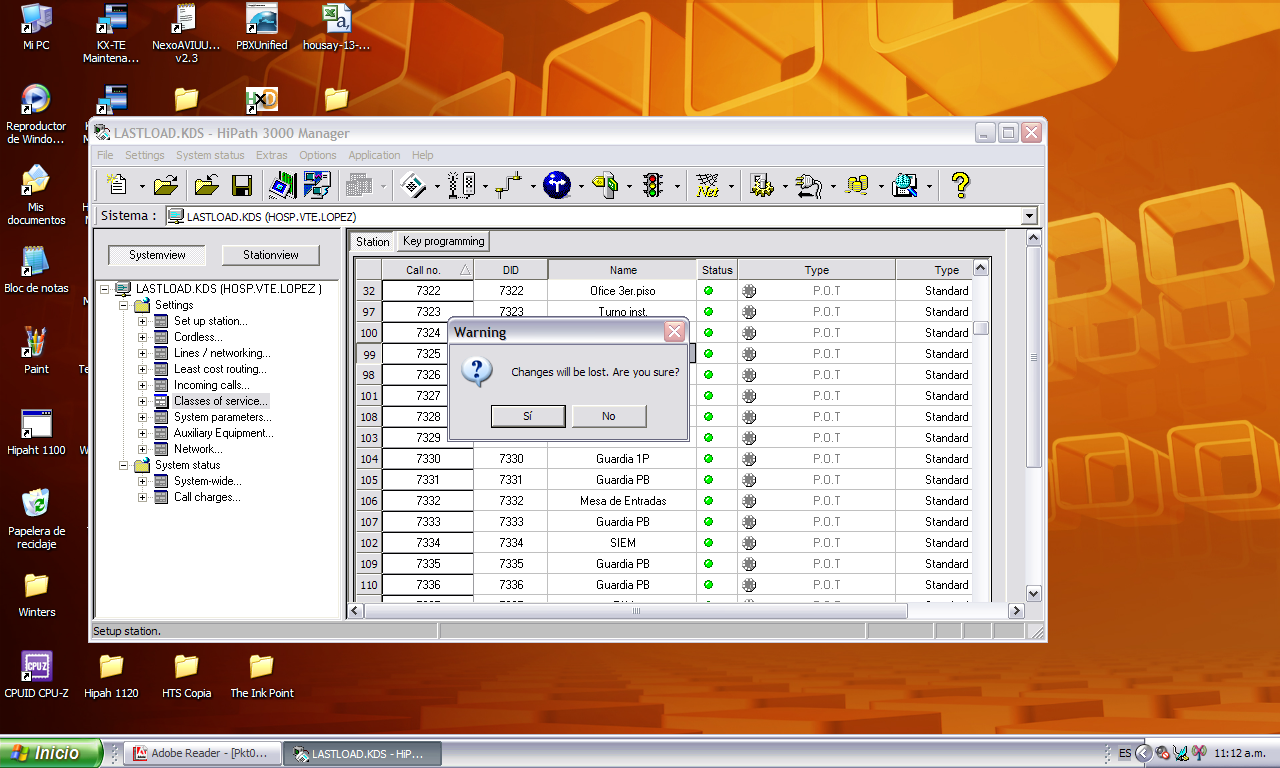

I read and charge the current KDS of the PBX. I make the changes and touch the Save button When I want to change to another programming item I get a window that says that if I go to exit without saving I will lose the changes

I have made changes before and this was not happening ...

Whoever does not resolve to cultivate the habit of thinking loses the greatest pleasure in life.

I normally don't save until I'm finished.
If I make changes then I can 'delta' upload.

Agree with sbcsu, I would never save, just apply as you go along then delta mode [thumbsup]

Siemens/Unify - Hipath 3000, Openscape Office and Openscape Business.
