DECT not working in another SLC card in Multi mode

[hipath4k]

Dear all

Any one done DECT with multi mode configuration.

We are facing one problem that while configuration multi mode all two SLC card in green state and all base station working all two card but DECT is working in only one SLC card and now working in another card

Pls suggest



Regards
Hello ,You can dicuss with me for Hipath 3k and Hipath 4K



[LAAZ]

HI

delete all SLC boards and other all parameters related to SLC cards.

Through CATool first add a new database and take connection of Hipath.

Go to Hicom and do teh generate first and then try delete cards and add cards and base stations.

Catool will generate all hunt groups of base stations and call will stsrt roaming automatically between base stations and cards



[hipath4k]

Dear Laaz

I am fimilar with Hipath and already done the step as per as yours suggestin but still not sucess.

Might be issue with resource used for Roaming or time slot. .. System Version is Hipath 4000 V6.0

Can you suggest me how to see the release the resource in Hipath 4000 6.0

Regards
Hello ,You can dicuss with me for Hipath 3k and Hipath 4K



[LAAZ]

Tae the dat abackup through catool and open the headings and check

Global settings
You may check whether mono or multi slc
Allow frequencies all checked



[hipath4k]

Dear Laaz

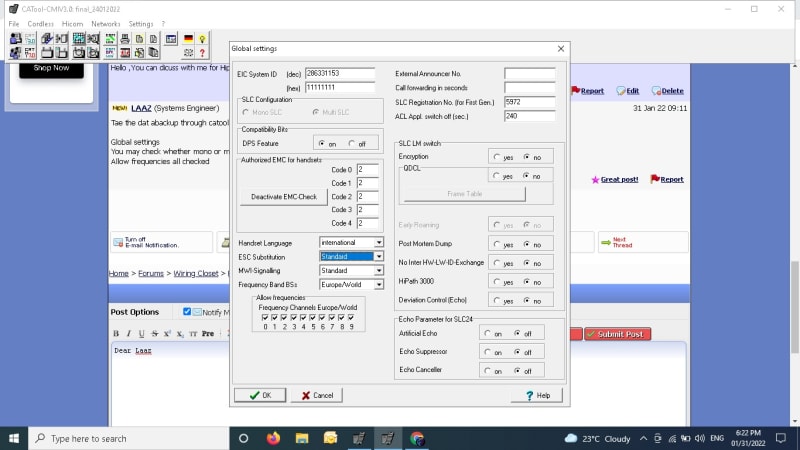

Multi mode and all Frequencies are checked enclosed reference

Hista says:-
5719 E8 N7842 NO ACT BPA TERM CMI ERROR 22-01-25 14:30:27
ALARM CLASS:CENTRAL:002
** :LTG1 :LTU3 :085: 00 : 0 Q2193-X200 SLC24 BST:01 PLS:-20
FORMAT:43
REASON:0BH ERROR IN IWU IC SERVICE COMPONENT
CMI ERROR DATA:
5F0B00010E010D800001760000000000 020001FFFFFFFFFFFFFFFFFFFFFFFFFF

F5719 E8 N7849 NO ACT BPA TERM CMI ERROR 22-01-25 14:30:46
ALARM CLASS:CENTRAL:002
** :LTG1 :LTU3 :085: 00 : 0 Q2193-X200 SLC24 BST:01 PLS:-20
FORMAT:43
REASON:0BH ERROR IN IWU IC SERVICE COMPONENT
CMI ERROR DATA:
5F0B00010E010D800001760000000000 020001FFFFFFFFFFFFFFFFFFFFFFFFFF

F5719 E8 N7854 NO ACT BPA TERM CMI ERROR 22-01-25 14:31:05
ALARM CLASS:CENTRAL:002
** :LTG1 :LTU3 :085: 00 : 0 Q2193-X200 SLC24 BST:01 PLS:-20
FORMAT:43
REASON:0BH ERROR IN IWU IC SERVICE COMPONENT
CMI ERROR DATA:
5F0B00010E010D800001760000000000 020001FFFFFFFFFFFFFFFFFFFFFFFFFF

F5719 E8 N7860 NO ACT BPA TERM CMI ERROR 22-01-25 14:31:25
ALARM CLASS:CENTRAL:002
** :LTG1 :LTU3 :085: 00 : 0 Q2193-X200 SLC24 BST:01 PLS:-20
FORMAT:43
REASON:0BH ERROR IN IWU IC SERVICE COMPONENT
CMI ERROR DATA:
5F0B00010E010D800001760000000000 020001FFFFFFFFFFFFFFFFFFFFFFFFFF




Regards
