CS1000S SIG SERV DOESNT SHOW UP

Status
Not open for further replies.

rumelihavasi

IS-IT--Management
Dec 9, 2011
59
TR
I have a system CS100S and using element manager to install node.
I have installed the node successfully.
Transferred the node to all elements (VGMC and Signaling server)

When I do STAT SS in Call server I am able to see the VGMC but no Signalig server.
I can ping all ip addresses to all elements.

What could be the wrong?

Thanks for your help

 Sig Server Rls 4.50 doesnt show up in LD 117 STAT SS
After your save and transfer did you reset the elements? The signaling server will not show up until you do the reset from the save and transfer page in element manager.

I did reset several times.
Node is not showing up at the Call server.

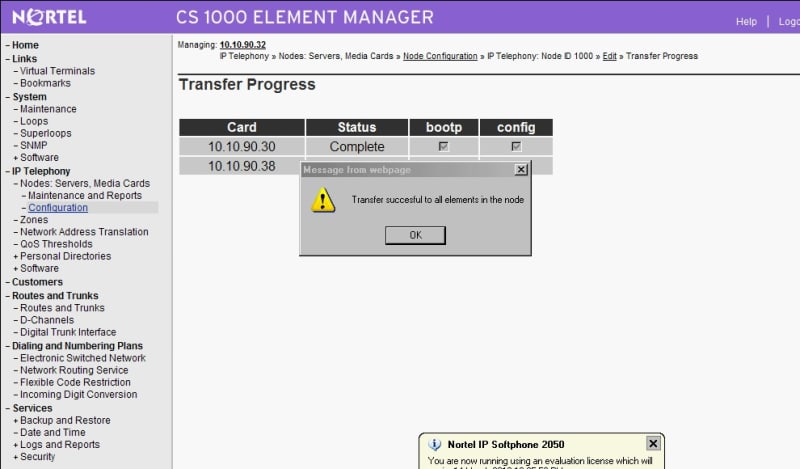

Both transfer to the elements are succesful.

pbxlink is showing up.

Can you provide a print out of the stat serv command in LD 117.

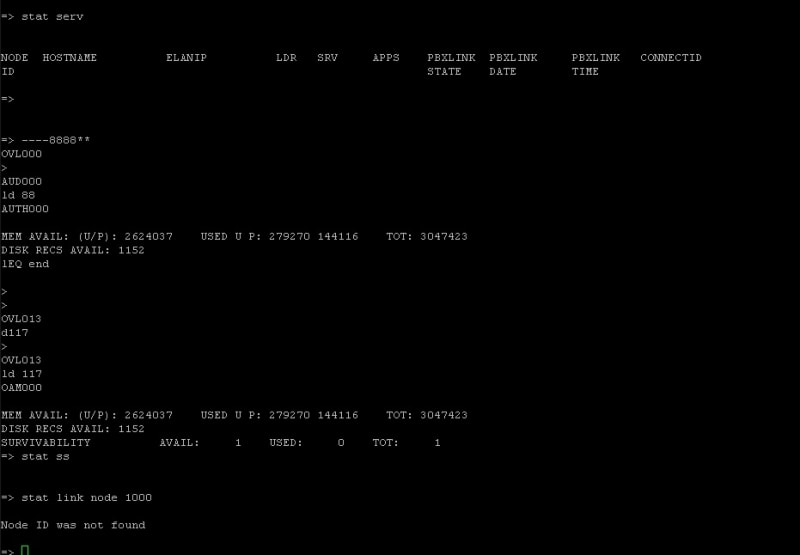

I have checked the node file in PDt c:/u/db/node and all of them are there. and I have cheked if the file updates when I transfer the node. But when I do STAT LINK NODE 1000 ıt says no node found

Do you has open the file nodexx.cfg ?
Are entries there correct Ip and so on?
If signaling server starts up it looking for that folder and files.
What was the reason that you setup signaling server ?
Was a node intalled before ?
Did you delete all files in /node before you configured the new one ?
Release 4.5 has such problems as you have .

I haven't read all the comments here, but if you were adding in a Sig Server on e.g a typical Option 11c SSC type system, then did it have the Sig Server data added in during the initial installation?.

I recall that there was an option during the installation of "Does this system have a signalling Server?. A workaround was to go into "pdt" and create a new folder. I think it was called "NODE" in the /u/db area?.


Firebird Scrambler

Nortel & Avaya Meridian 1 / Succession & BCM / Norstar Programmer

Website = linkedin

I did the fresh Software installation from scratch and Tyepd yes for a signaling server.
What I saw might be difference, When I read the NODE1000.CFG file it says IPL 4.0 and I couldnt see the Node IP. I have only seen the IP address of SigServ and MC32 cards.

SRPT170 pbxLinkMon: pbxLinkParsePCHFile stat() c:/u/db/node/node.pch file got wrong valu
e, errno = 0x380003.





here is what I am getting



SRPT170 pbxLinkMon: pbxLinkParsePCHFile stat() c:/u/db/node/node.pch file got wrong valu
e, errno = 0x380003.

SRPT170 pbxLinkMon: pbxLinkParseNodeFileByDir no nodeXXXX.cfg file was found.

AUD000

SRPT170 pbxLinkMon: pbxLinkParsePCHFile stat() c:/u/db/node/node.pch file got wrong valu
e, errno = 0x380003.

OVL000
>
XMI001 14 EXUT

ELAN009 ELAN 0 host IP=10.10.90.38 disabled, write to socket
fail due to far end disconnect or Ethernet problems

ELAN009 ELAN 0 host IP=10.10.90.30 disabled, write to socket
fail due to far end disconnect or Ethernet problems

OVL000
>
ELAN014 ELAN 0 host IP=10.10.90.30 is enabled

ELAN014 ELAN 0 host IP=10.10.90.38 is enabled

XMI002 14 EXUT

ELAN028 The following server failed to register it's pbxLink.
IP <10.10.90.38>, host name <VGMC>, server type <SMC>, TN <14 0>.

ELAN028 The following server failed to register it's pbxLink.
IP <10.10.90.30>, host name <gambiass>, server type <SS>.

If you have reinstalled the system, you must also install the nodes.
Before you transfer the data to the call server you should delete the files in the node directory. They could be damaged.
If you say you have a file named nodexx.cfg then I'm even very sure that it is.
After successful transfer, you have a node file with the name z.Bsp. node0010.cfg. Here 0010 stands for the node 10.
Start another transfer from the Element Manager after deleting the files.

Thanks for your help.

I will do the last step.

I will delete the node file from C/u/db than will delete the node from Element manager.
Than I will reboot all system. I will create another node in the element manager.
I will post ASAP

I did everything.
Node file is on pdt valid

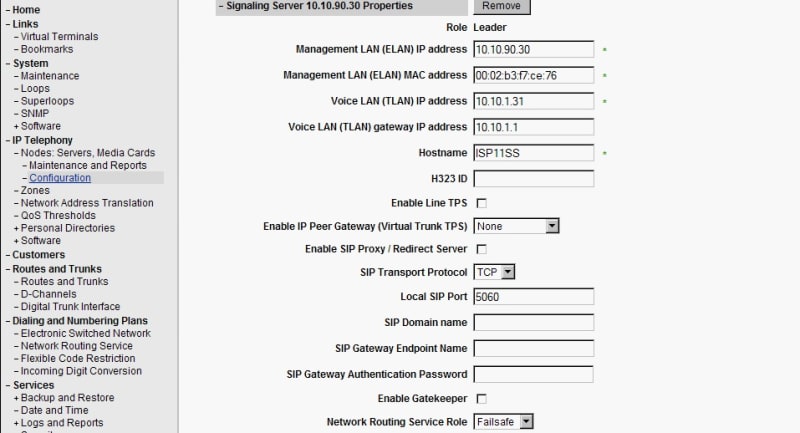

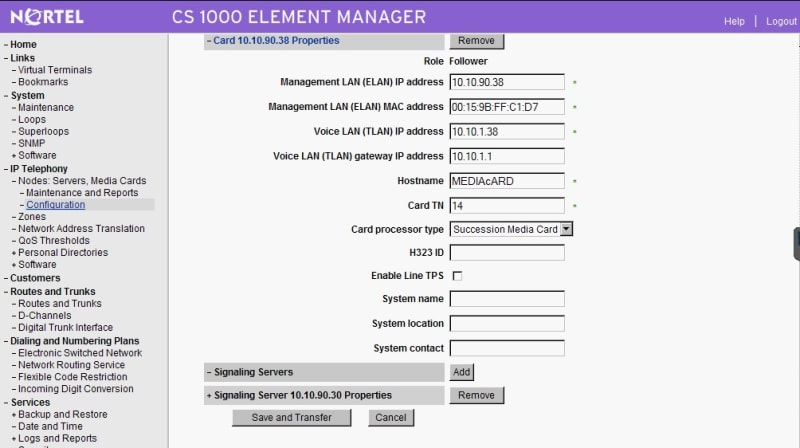

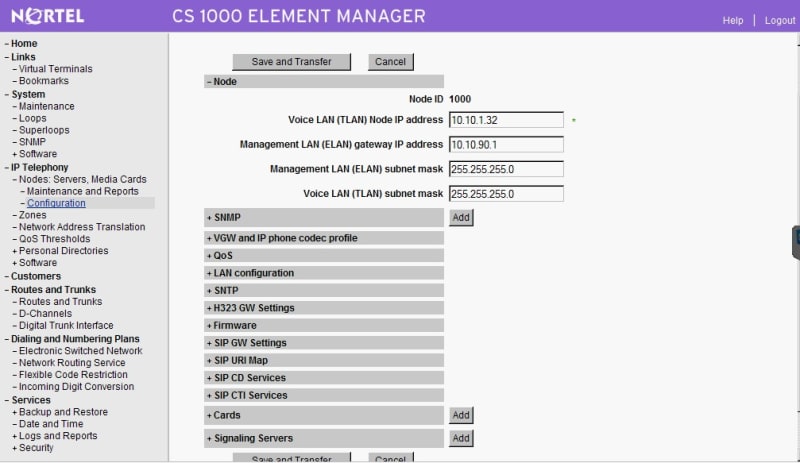

Element manager Node configuration is OK.

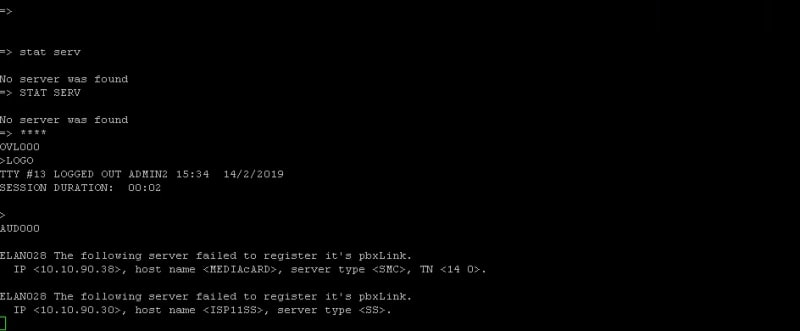

When i DO
>LD 117
STAT SERV

THERE IS NO SERVER AND NODE.
But the node file in Pdt is valid.

I have no any other idea.

Any help wold be appreciated

Just going to ask again after you do a successful save and transfer in element manger the page should then allow you to reset the elements through the element manager webpage. You did this I am assuming as I know it will not pull in the element in until that reset has been done through the element manager webpage.
