Tech guy 297
Technical User
Hi guys, does mitel ex controller supports ASU-II? Can you buy a CIM Port module for the ex controller? Thx
Tek-Tips is the largest IT community on the Internet today!
Members share and learn making Tek-Tips Forums the best source of peer-reviewed technical information on the Internet!
-
Congratulations Chris Miller on being selected by the Tek-Tips community for having the most helpful posts in the forums last week. Way to Go!
CIM Port on ex controller?
- Thread starter Tech guy 297
- Start date
- Status
Good morning,
The EX doesn't support ASUII's, 4 or 16 port FXS cards only. Another option would be to install a SIP to Analog Gateway such as a Grandstream GXW4224.
About EX Controller

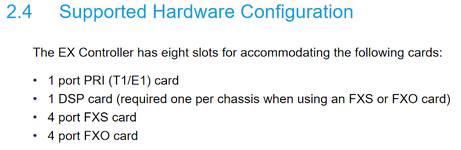

2.4 Supported Hardware Configuration
The EX Controller has eight slots for accommodating the following cards:
• 1 port PRI (T1/E1) card
• 1 DSP card (required one per chassis when using an FXS or FXO card)
• 4 port FXS card
• 4 port FXO card
2.4.1 Sample Configuration
A sample EX Controller configuration has:
• 2 PRI cards
• 1 DSP card
• 4 FXS cards (providing 16 FXS ports)
• 1 FXO card (providing 4 FXO trunks
The EX doesn't support ASUII's, 4 or 16 port FXS cards only. Another option would be to install a SIP to Analog Gateway such as a Grandstream GXW4224.
About EX Controller
2.4 Supported Hardware Configuration
The EX Controller has eight slots for accommodating the following cards:
• 1 port PRI (T1/E1) card
• 1 DSP card (required one per chassis when using an FXS or FXO card)
• 4 port FXS card
• 4 port FXO card
2.4.1 Sample Configuration
A sample EX Controller configuration has:
• 2 PRI cards
• 1 DSP card
• 4 FXS cards (providing 16 FXS ports)
• 1 FXO card (providing 4 FXO trunks
