Calls between IPO Server Edition 11.1 extensions and Avaya Aura 8.1 H.323 Extensions. 1

Status
Not open for further replies.

hcmbmt

Technical User
Jan 15, 2008
128
VN
We need to connect the IPO Server Edition 11.1 with the Avaya Aura 8.1 with SMGR, Session Manager, Communication Manager. The Avaya Aura has SIP phones and Avaya H.323 phones.
I configured SM lines connect IPO and Avaya Session Manager and it works.
There is no problem with calls in/out between IPO's Extensions and Avaya Aura SIP extensions but not work for calls between IPO phones and Avaya Aura H.323 phones.
Do I need to configure H.323 trunks between IPO and Avaya CM for this situation?



can you not call or do you not have audio?

If audio is missing then turn off direct media path on an IPO extension and try again, if it still doesn't work then you have to turn off DMP on the Aura extension as well.

Joe
FHandw, ACSS, ACIS

"Dew knot truss yore Spell Cheque

Aura System: SIP ext 1301 and H.323 ext 1305
IPO System: Ext 6001
Tested:
- IPO ext 6001 can call Aura H.323 ext 1305 and SIP ext 1301
- Aura SIP ext 1301 can call to IPO ext 6001
but

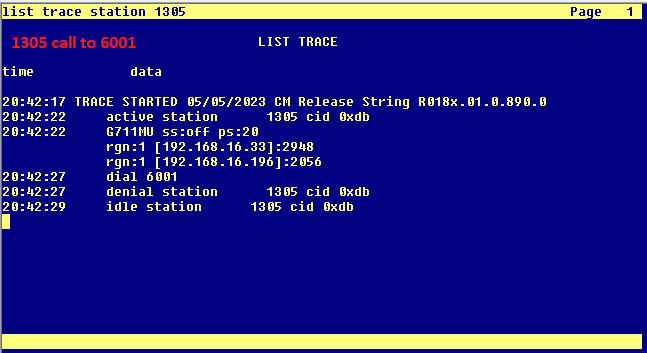

- Avaya H.323 ext cannot call to IPO ext 6001


Maybe wrong in configuration in CM. I dont really understand how the routing for calls from CM H.323 to IPO
- Dialplan analysis, add 6 as Ext type?
- aar analysis 6, route to Session Manager Signaling group

I found the missing command: Change uniform-dialplan X
It's working now.
