kodimitrovski
Systems Engineer
Hi everyone,
System is Avaya IP Office 9.0.500.972.
I'm trying to find out how to alter the From Caller ID Name when a call is re-routed from one SIP trunk through another.
To be specific this is the scenario I'm trying to make it work properly:
1. Call is coming through Line 40 (SIP trunk to the provider)
2. Call is accepted and routed with Incoming Call Route which has configured destination extension (7600) that is part of a short code.

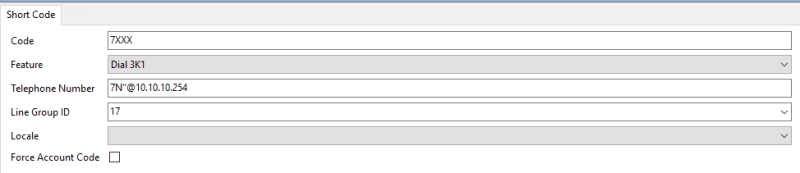

3. This short code is configured with:

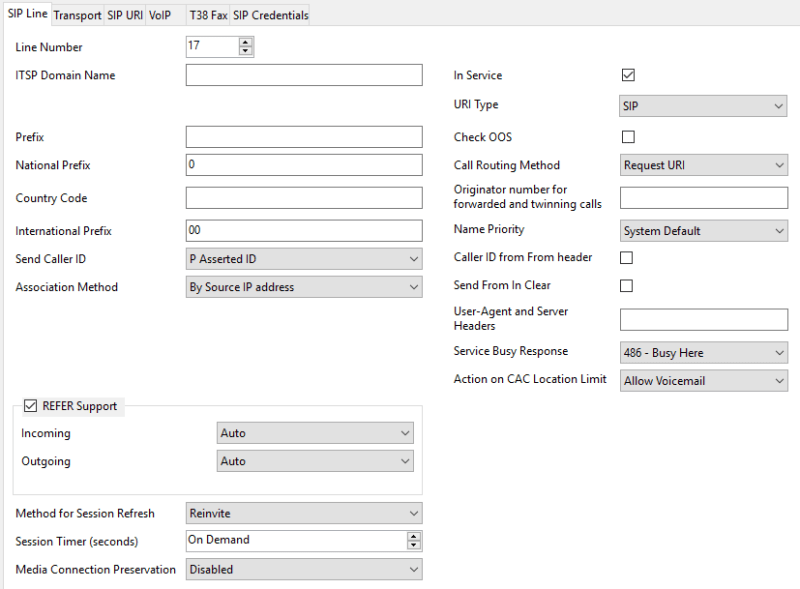

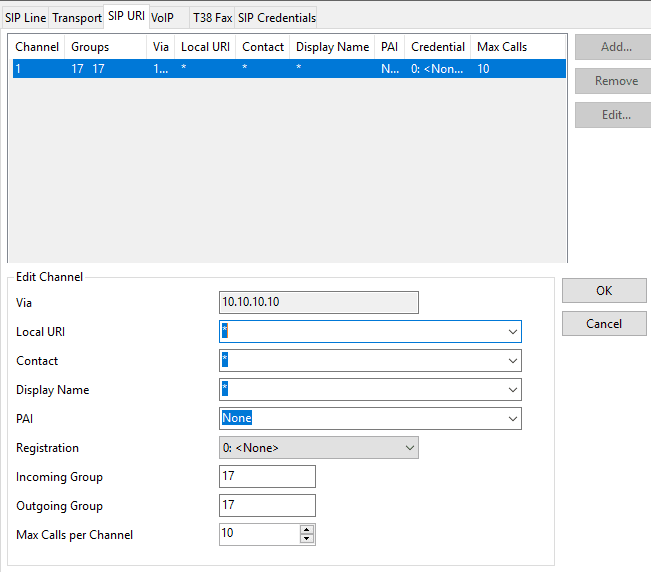

4. SIP trunk that is destination for this short code (trunk to another PBX) is configured as follows:
5. The reroute work fine, but only problem that I have at the moment is that the call is sent through the Line 17 (other PBX trunk) it is sent with CID name "Anonymous".
Original call:
1149556mS SIP Call Rx: 40
BYE sip:+XXXXX240360@10.X.X.22:5060;transport=udp SIP/2.0
Via: SIP/2.0/UDP 172.X.X.167:5060;branch=z9hG4bKm33ddt10agah7fj6u3s0cdug9t312.1
From: <sip:+XXXXX220730@oXXXX2.ims.telXXXXm.XX;user=phone>;tag=SDm1ps202-15004142872581
To: <sip:+XXXXX240360@172.X.X.71;user=phone>;tag=8581930ba8797c8c
Max-Forwards: 67
Call-ID: SDm1ps202-e93c5f11cda5e70a75f9800398ecf6f1-cd66gn1
CSeq: 514211458 BYE
Resource-Priority: q735.4
P-Access-Network-Info: GSTN;gstn-location="049383792722591027";network-provided
Reason: Q.850;cause=16
Content-Length: 0
Rerouted call:
1149573mS SIP Call Tx: 17
BYE sip:7600@10.X.X.254:5060 SIP/2.0
Via: SIP/2.0/UDP 10.X.X.10:5060;rport;branch=z9hG4bKee682a59853284f74c53868336d7303f
From: "Anonymous" <sip:00XXXXX220730@10.X.X.254>;tag=a537f31dd794602d
To: <sip:7600@10.X.X.254>;tag=1ce53fc6-fc2b-4315-b3c3-a6589e4d213c
Call-ID: c90fd9c4692b00d5bc023e0c5e58da04
CSeq: 1250725749 BYE
Contact: "Anonymous" <sip:00XXXXX220730@10.X.X.10:5060;transport=udp>
Max-Forwards: 70
Allow: INVITE,ACK,CANCEL,OPTIONS,BYE,INFO,REFER,NOTIFY
Supported: timer
Reason: Q.850;cause=16;text="Normal call clearing"
User-Agent: IP Office 9.0.5.0 build 972
Content-Length: 0
How can I remove this CID name or at least change it to the real number?
I've read this thread, but as I can see the options pointed out in the SIP trunk are available in version 11.0, but nowhere to be found in 9.0.
Regards,
Konstantin
