Vantage Phones with HG Voicemail Access / Park Buttons 1

[dsm600rr]

Hello all,

Is there a way to have Park Buttons on the Vantage Phones? HG Voicemail Access? Page All? Just the typical buttons you would have on a business phone.

Thank you.

ACSS



[derfloh]

There is a document somewhere that tells which buttons are supported.

IP Office remote service
IP Office certificate check
CLI based call blocking
SCN fallback over PSTN



[icet500]

Vantage is the most stupid phones that I dealt with so far.

I think there is an update with the support buttons and it needs to be enabled first by the 46xxsettings file.

I will look for it and post here of I find it.



[icet500]

add the SET BUTTON_MODULE_ENABLE 1 option on 46xxsettings

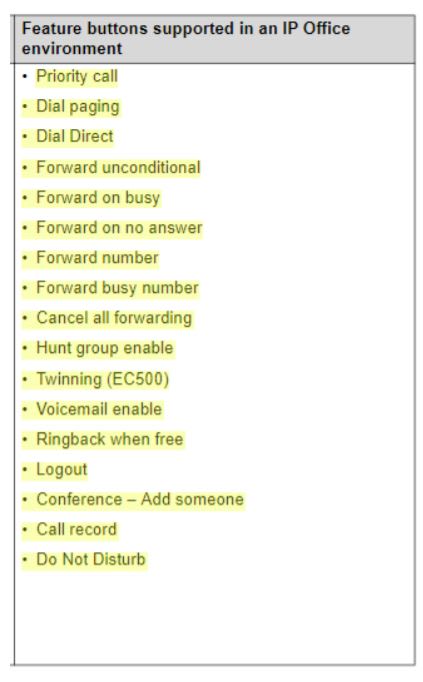

check the supported buttons in attachment.



[sizbut]

https://ipofficekb.avaya.com/busine...jects/sipphoneinst/vantage-button-modules.htm

Stuck in a never ending cycle of file copying.



[dsm600rr]

icet500: 46xxsettings.txt is auto generated, should I add it to the 46xxspecials.txt or j100Supgrade.txt?

ACSS



[dsm600rr]

sizbut: Ah, R11.1 - is there a stable release of R11.1 yet? Still on R11.0

What exactly is the "Vantage Connect Expansion Module"?

ACSS



[sizbut]

The "Vantage Connect Expansion Module" is the app that displays the user's programmable buttons (yes, the name is rubbish and makes people think its an extra bit of hardware).

It can be run on the same Vantage phone as the user's Vantage Connect app and both apps have buttons that make it easy to switch between the two. If you have any spare Vantage units lying round, they can run additional copies of the button app for the same user (doesn't need to register to the switch so doesn't need to register as phone).

Its officially supported with the R11.1 SP1, including the necessary extra lines in the auto-generated 46xxsettings file.

I played with it as part of the service pack testing and it worked quite well.

Stuck in a never ending cycle of file copying.



[sizbut]

... and its supported plain simple 'Dial' (missing from Avaya's list) so you can setup buttons that match shortcodes in order to have a much wider range of features.

Stuck in a never ending cycle of file copying.



[icet500]

Yes you can use the 46xxspecial.



[dsm600rr]

Hello all,

Revisiting this thread. I finally updated to R11.1 SP1 and would like to utilize more buttons on my K175.

I have updated the K1xxSupgrade.txt file as follows:



## IPOFFICE/11.1.0.1.0 build 95 172.30.20.1

SET ADMIN_PASSWORD 2468

IF $MODEL4 SEQ K175 GOTO K165_K175_SW
IF $MODEL4 SEQ K165 GOTO K165_K175_SW
IF $MODEL4 SEQ K155 GOTO K155_SW
GOTO END

# K155_SW
SET APPNAME K1xx_SIP-R2_2_0_5_8008.tar
GOTO GETBM

# K165_K175_SW
SET APPNAME K1xx_SIP-R2_2_0_5_8008.tar
GOTO GETBM

# GETBM
IF $GROUP SEQ 0 GOTO GETCONNECT
IF $GROUP SEQ 1 GOTO GETMODULEONLY
GOTO GETSET

# GETCONNECT
SET ACTIVE_CSDK_BASED_PHONE_APP "com.avaya.android.vantage.basic"
SET PUSH_APPLICATION VantageConnect_armeabi-v7a_2.2.0.5.0005_211120_f800dec.apk,AvayaConnectExpansionModule_2.2.0.5.0005_181120_b29d8be.apk
GOTO END

# GETMODULEONLY
SET ACTIVE_CSDK_BASED_PHONE_APP ""
SET PUSH_APPLICATION AvayaConnectExpansionModule_2.2.0.5.0005_181120_b29d8be.apk
GOTO END

# END
GET 46xxsettings.txt




Under my Extension Drop Down I see that I can enable "Expansion Module" however I do not see the app get installed.

The phone appears to pull the files:

3:39:17 PM 172.30.20.100:53820 Requested GET /VantageConnect_armeabi-v7a_2.2.0.5.0005_211120_f800dec.apk
3:39:36 PM 172.30.20.100:53820 Fully downloaded - 45.2 M @ 2.4 MB/s - /VantageConnect_armeabi-v7a_2.2.0.5.0005_211120_f800dec.apk
3:39:37 PM 172.30.20.100:53830 Requested GET /AvayaConnectExpansionModule_2.2.0.5.0005_181120_b29d8be.apk
3:39:39 PM 172.30.20.100:53830 Fully downloaded - 5.0 M @ 2.4 MB/s - /AvayaConnectExpansionModule_2.2.0.5.0005_181120_b29d8be.apk



Thoughts?


ACSS



[dsm600rr]

Ok all, checked the phone again today and the Avaya Connect Expansion Module

Is there a way standard Park Buttons can be added?

Source Number style Hunt Group Voicemail Access Button?

ACSS
