Upgrade 9508 firmware

[okorsal]

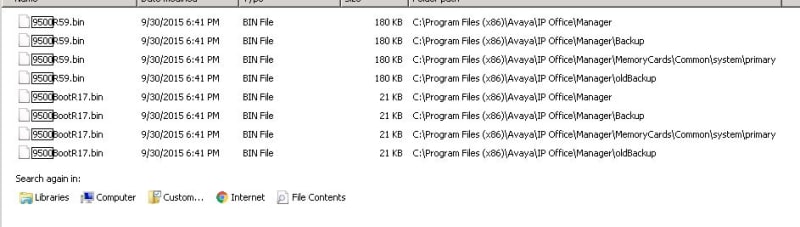

I've downloaded the 9500R59.bin file to the working directory. (C:\Program Files (x86)\Avaya\IP Office\Manager). However, the phone does not download it. We have IPO R7 Manager v7.0(27). What am I doing wrong?



[TouchToneTommy]

Do you have Enable TFTP Server checked in Manager > File > Preferences ?



[intrigrant]

Look in sysmonitor which version the phone looks for.
If it is different as the R59 then it does not load anything.
Now you have only one option: rename the 9500R59.bin file to the version it requests as seen in monitor.



[okorsal]

I've tried changing the filename, didn't work. TFTP is enabled under Preferences. I dont even see teh word tftp or .bin in Sysmonitor.



[intrigrant]

search the FAQ area



[teletechman]

You need to enable TFTP in monitor in order to trace it, go to filters trace options then services and you will see the TFTP option unticked. Tick it on and you should start to see the phone requesting TFTP info.
Mike



[intrigrant]

In Manager there is a tftp view option as well but why using Manager if there is a SD card fitted?



[okorsal]

SD card slot is empty. Actually it's a Compact Flash slot. IP 500

All I see is:
TFTP: Server::RRQ(from 192.168.7.23, 51548) (loc 192.168.7.6) nasystem/who_is3 (Total 1)
TFTP: TFTP Server - duplicate request for client (from 192.168.7.23, 51548) (loc 192.168.7.6) nasystem/who_is



[TheSmash]

Disable Windows Firewall

ACSS (SME)



[okorsal]

Windows firewall is already disabled.



[budbyrd]

Personally I quit using the Manager TFTP a long time ago as it can be a bit flakey. I use SolarWinds freebee app. It works much better.

Dermis and feline can be divorced by manifold methods.*
*(Disclaimer for all advise given)--'Version Dependent'



[teletechman]

pumpkin work well also.
Mike



[intrigrant]

Maybe a dumb question, but did you enable the TFTP server in Manager?



[okorsal]

Yes, TFTP is enabled.



[Teleco4321]

The proper release for 7.0(27) is
9504 / 9508 Telephone Firmware R38
9504 / 9508 Loader (Boot File) Firmware R15

I would try to reload manager 7.0(27) on the PC.



[Teleco4321]

Sorry I was looking at a couple of different releases the firmware is actually R37.
