UA5200 Client cannot connect to server

Status
Not open for further replies.
hcmbmt

hcmbmt

Technical User
Jan 15, 2008
130
VN
Hi all,
We have new UA5200 with SV9500 installation. But the UA5200 client cannot connect to the server.
I tried test either Client installed on Client's PC or on UA5200 server but same.
Where should I check to find out the root cause?
The workstation name and primary line with subline of Client is correct.


Sort by date Sort by votes
What message do you get when you try to connect?



There are 10 kinds of people in the World.

Those that understand Binary and those that don't.

Upvote 0 Downvote
@DoubleDriveLine,
Can login but it shows that "UA5200 Server call processing Service is disconnected". I tried enable the "UA5200 Server" service in the server but couldn't.
Attached file for more information.

 https://files.engineering.com/getfile.aspx?folder=17c590dc-a526-445e-896b-5ed3313734b2&file=UA5200_Client_issue.pdf
Upvote 0 Downvote
Well at this point this is where I would call NTAC. Based on what I see the server has an issue. That service should run.

If you haven't install it you need to install XMPP. Without it UA5200 will constantly be looking for the service and log the error. It will run without it. but it complains constantly.



There are 10 kinds of people in the World.

Those that understand Binary and those that don't.

Upvote 0 Downvote
I did install the XMPP and assigned the XMPP domain for it but still not work.

Upvote 0 Downvote
I figured that would not stop the service from running. It just needs to be in there.

In the PBX did you assign a Monitored number as the OAI server?





There are 10 kinds of people in the World.

Those that understand Binary and those that don't.

Upvote 0 Downvote

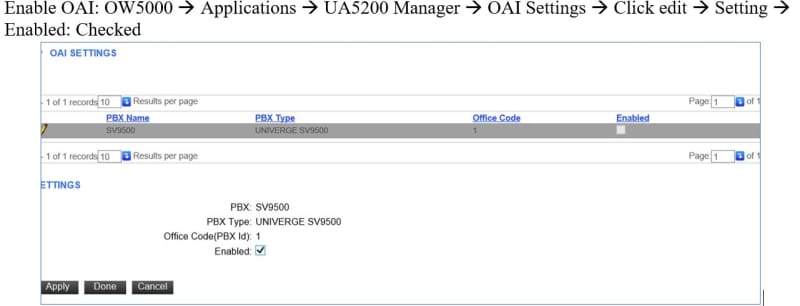

You mean here?

Upvote 0 Downvote
No the Main PBX section for OW5000.

Should be system Menu | PBX

Select the Pencil beside your PBX

Under PBX there should be reserved numbers

One of them must be set to OAI Server



There are 10 kinds of people in the World.

Those that understand Binary and those that don't.

Upvote 0 Downvote
Note it has to be in AMNO first



There are 10 kinds of people in the World.

Those that understand Binary and those that don't.

Upvote 0 Downvote
Yes, I configured AMNOL and assigned the Reserved Numbers into PBX:

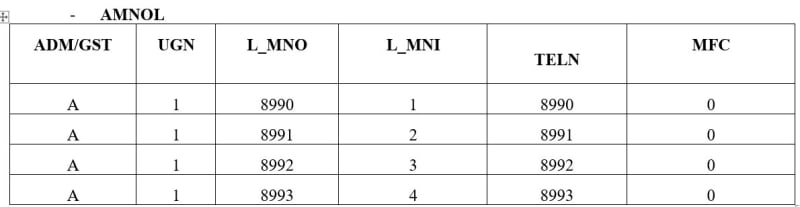

AMNOL:

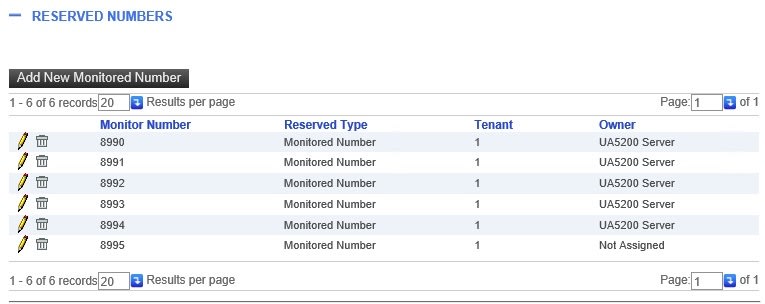

Reserved Numbers:

Upvote 0 Downvote
You are missing a monitor number for OAI Server. It is needed for call control. It is also missing from the manual to install UA5200 server. Check out OW5000 and UC700 to make sure you didn't miss anything else.



There are 10 kinds of people in the World.

Those that understand Binary and those that don't.

Upvote 0 Downvote

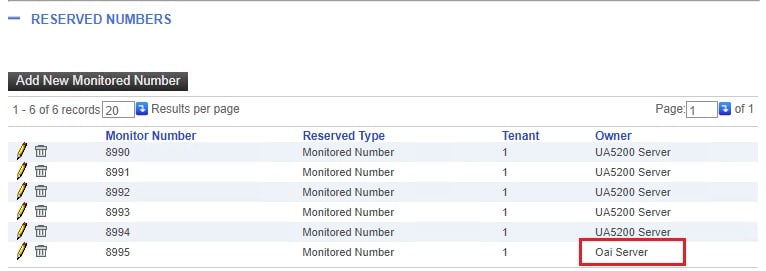

I assigned a number for OAI server:


OW5200 --> Platform --> OAI server: dont show the tabs "Server Setting" & PBX Setting as manual:

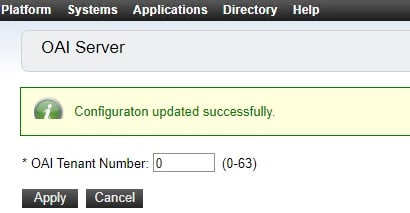

- In my system:

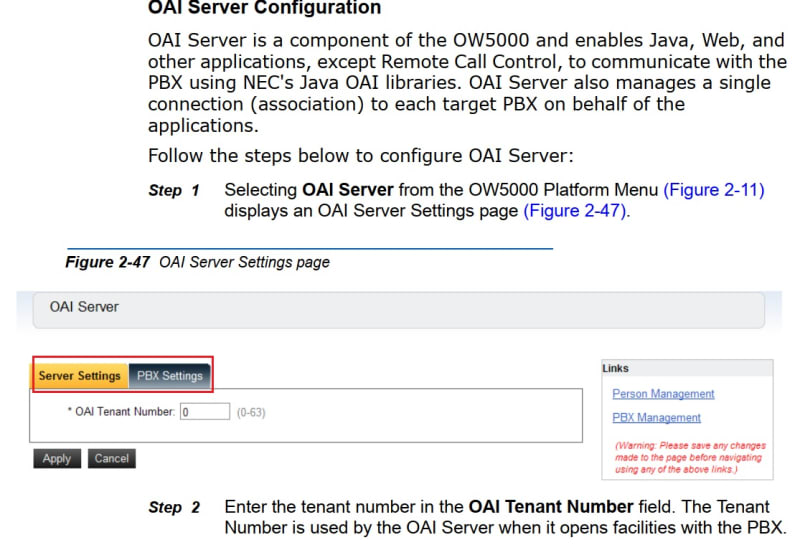

- In manual

Upvote 0 Downvote
That is correct now. That item will give you call control if UA5200 server was running. Did you check your licensing to see if you had a license for the server? Try to sync your license again.

You can leave the OAI Tenant as 0. That means all tenants.

What you are seeing is a difference in the manual verse software changes. You will not see those tabs in the current version. A lot of the documentation for UCE no longer matches the actual software interface.



There are 10 kinds of people in the World.

Those that understand Binary and those that don't.

Upvote 0 Downvote
The training doesn't help either as it is dated as well.



There are 10 kinds of people in the World.

Those that understand Binary and those that don't.

Upvote 0 Downvote

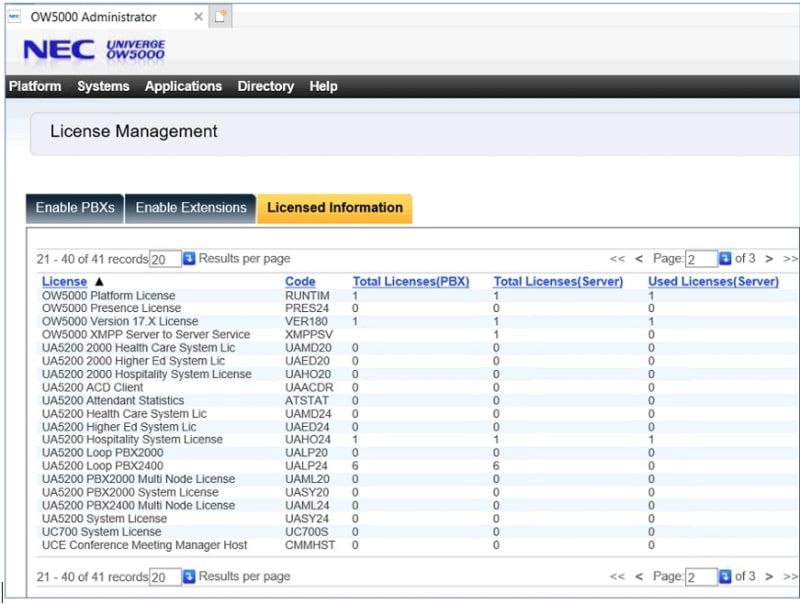

The license loaded successfully. Can you check if anymissing license make UA5200 Manager service cannot start up?

Upvote 0 Downvote
Sorry I have been running hard for the last couple of weeks.

You don't have a license for UA5200 System License. Odd that you have 6 loop licenses without having the system its self.

That will stop it from running.



There are 10 kinds of people in the World.

Those that understand Binary and those that don't.

Upvote 0 Downvote
I also quite surprised why the system license missing as the list was offered by NEC.

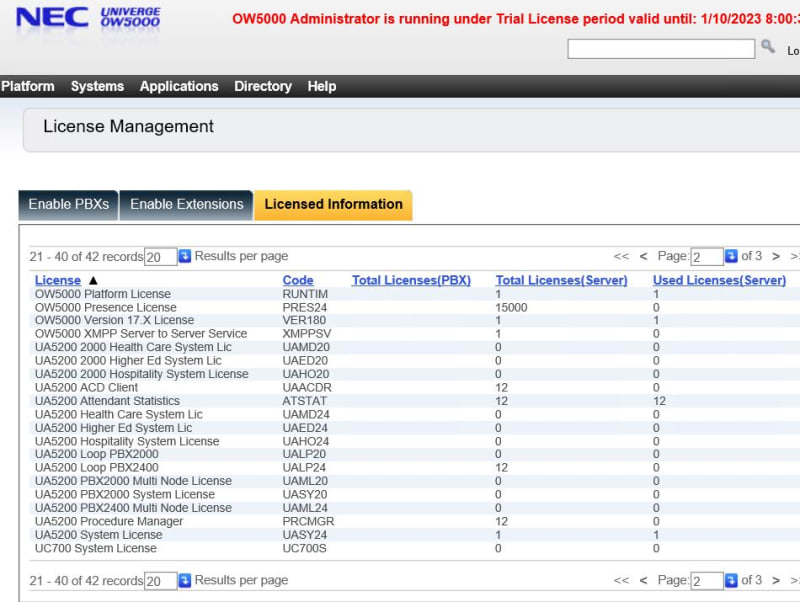

Does UA5200 go with demo license? Because I tried to install demo to verify the problem but it got the same issue - cannot enable the UA5200 Server Service.

Upvote 0 Downvote
No trial licenses for UA5200 that I know of.



There are 10 kinds of people in the World.

Those that understand Binary and those that don't.

Upvote 0 Downvote
