Softgate Activation

Status
Not open for further replies.

Arshad Iqbal

Systems Engineer
Apr 26, 2019
21
CO
Hello Everyone,

hope you all guys are doing great.

I have recently installed OS4K simplex with integrated softgate in virtual environment. System is running in trial mode.
softgate is configured but its in NPR state. I believe its because of softgate license.

is there any way to activate softgate for trial?


https to the softgate IP address
Look at license there and see the status.
It should give you 30 days.

tried that already with TRM and HICOM but I get the following errors

Login failed, since no IPDA connection to the OpenScape 4000 system has been established until now.

Please check:

• the initial local area network settings and the MEKs in case of activated security of your SoftGate e.g. by means of the first installation assistant/first installation wizard

• the initial local area network settings and the MEKs in case of activated security of the SoftGate within the OpenScape 4000 System e.g. by means of AMO APRT and UCSU

• the initial local area network settings and the MEKs in case of activated security of the OpenScape 4000 System itself e.g. by means of AMO SIPCO

If you make modifications by means of the first installation assistant/first installation wizard, please activate the check box "Start SoftGate after Installation".

Have you done the APRT and UCSU
Also
ACT-USSU:LTG

Softgate will for sure work fine without license for 30 days (grace period).

When license/grace period expires, move and changes are blocked on the softgate, but anything configured will still be in service and working.

Your problem is definitely configuration, not license.

Hello SBCSU/Moriendi,

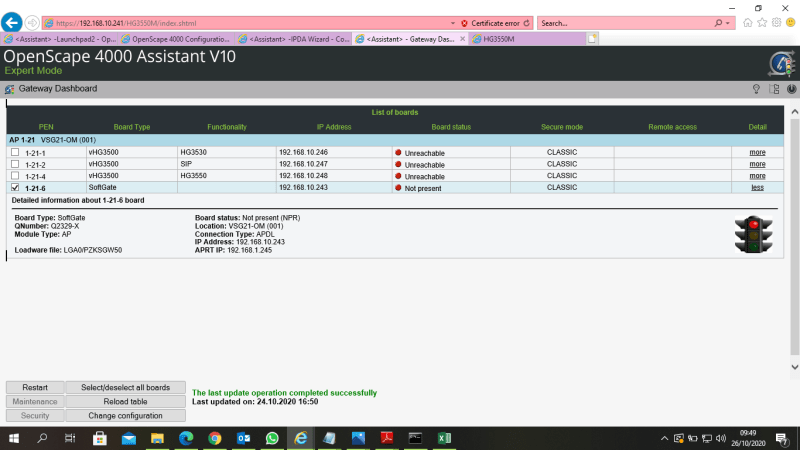

Attached is the macro file I created for softgate configuration and executed successfully without any error. softgate wasn't showing up in portal or assistant either. by modifying the settings for HG3570 by providing NGS IP in IPDA wizard it is now showing the softgate and vSTMI cards. but status is still NPR and unreachable.


 https://files.engineering.com/getfile.aspx?folder=8f304df1-f24f-44c4-8037-004a208a19b2&file=softgate.txt
Can you post your xml also.

Regenerate the running version with ./firstinst-netw.sh -w from /var/opt/firstinstall

Hello Moreindi,


Thanks for your help and support. problem seems to be fixed after uploading the data manually in assistant.

I am in process to learn and explore unify products. I am currently away from system and will share and ask many more questions in coming days.


LTG 1 LTU 17 SRCGRP 17 ALARMNO-LTU 0 SOFTGATE1000 0 PORTS USED
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
| | | |S|H|AL-|N| | |
| ASSIGNED | MODULE |FCT|E|W|ARM|P| INSERTED | HW- | MODULE
PEN | MODULE | TYPE |ID |C|Y|NO |R| MODULE |STATE INFO | STATUS
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
1 | AVAILABLE 0| | AVAILABLE | |
2 | AVAILABLE 0| | AVAILABLE | |
3 | AVAILABLE 0| | AVAILABLE | |
4 | AVAILABLE 0| | AVAILABLE | |
5 | AVAILABLE 0| | AVAILABLE | |
6 | Q2329-X SoftGate 1 0| | Q2329-X | 1 -09 - | READY
+--------------------------------+-+------------+------------+------------
| IP ADDRESS : 192.168. 10.236 B-CHANNELS : 250 BCHLCNT : 120
| IP MODE : IPV4 DHCP V4 : NO DHCP V6 : NO
+--------------------------------+-+------------+------------+------------
7 | AVAILABLE 0| | AVAILABLE | |
8 | AVAILABLE 0| | AVAILABLE | |
9 | AVAILABLE 0| | AVAILABLE | |
10 | AVAILABLE 0| | AVAILABLE | |
11 | AVAILABLE 0| | AVAILABLE | |
12 | AVAILABLE 0| | AVAILABLE | |
13 | AVAILABLE 0| | AVAILABLE | |
14 | AVAILABLE 0| | AVAILABLE | |
15 | AVAILABLE 0| | AVAILABLE | |
16 | AVAILABLE 0| | AVAILABLE | |
17 | AVAILABLE 0| | AVAILABLE | |

+----+----+---------------------------+-+------------+------------+--------+
| NO SECURITY STATUS AVAILABLE, SINCE FEATURE SPE IS NOT ACTIVATED |
+---------+----------------------------------------------------------------+
AMO-BCSU -111 BOARD CONFIGURATION, SWITCHING UNIT
DISPLAY COMPLETED;
