SIP Trunk Confiurtion between Avaya IPOSE 11.1 and other IP PBAX

[BrianCosta]

Hi ,,,

Is there an Application Notes on how to configure the SIP trunk between IPOSE 11.1 and other PBAX, like NEC for example, all the Application notes talk about configuring the SIP trunk with SIP Provider, and each doc has different values configured?
Beginning from the SIP credential of other PBAX, if we don't have it, what should be added for outgoing calls on Call Details SIP URI on Credentials and Contents

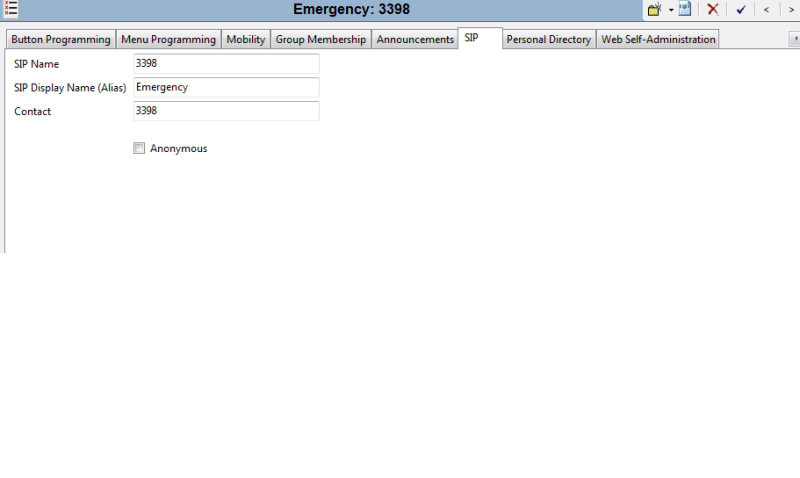

This will goes to SIP User Tab, what should be added for incoming and outgoing displays or keep it with sam user extension number,


Thanks



[derfloh]

If you don’t use credentials remove it and set the values as needed.

If you set values to auto you can set caller ID through short codes.

What is your issue?

IP Office remote service
IP Office certificate check
CLI based call blocking
SCN fallback over PSTN



[BrianCosta]

@derfloh:

as I understand If I set to Auto, no change in the user tab.

Thanks



[BrianCosta]

@derfloh:

I have Configured SIP Trunk to NEC, and it's working for Outgoing,
Incoming no, Here is the configuration I do:

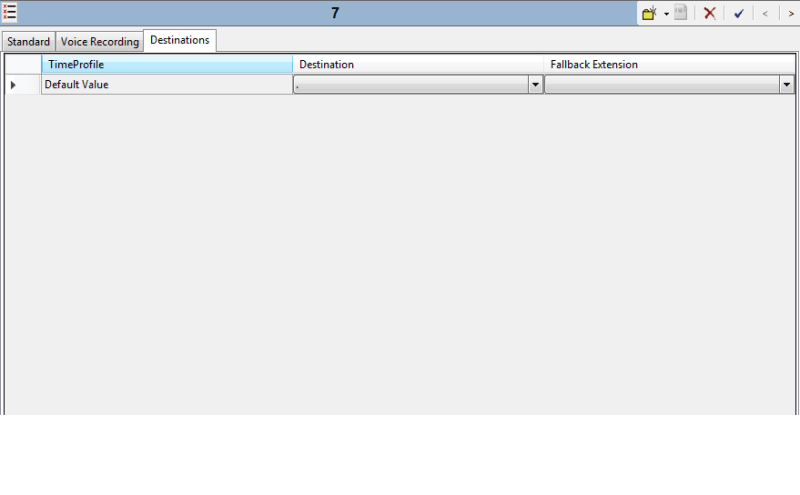

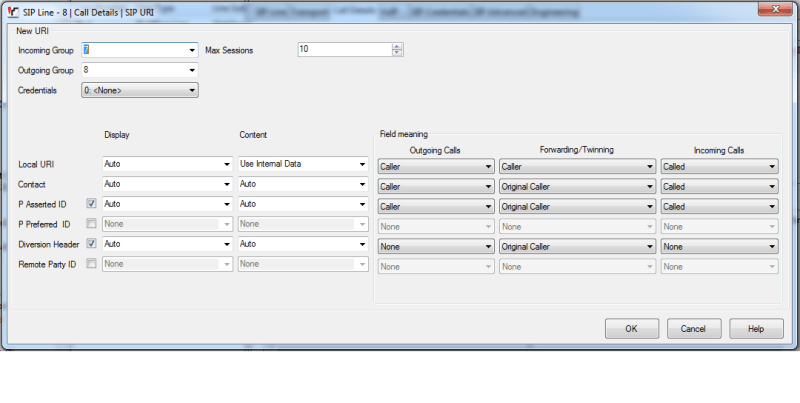

For Incoming:

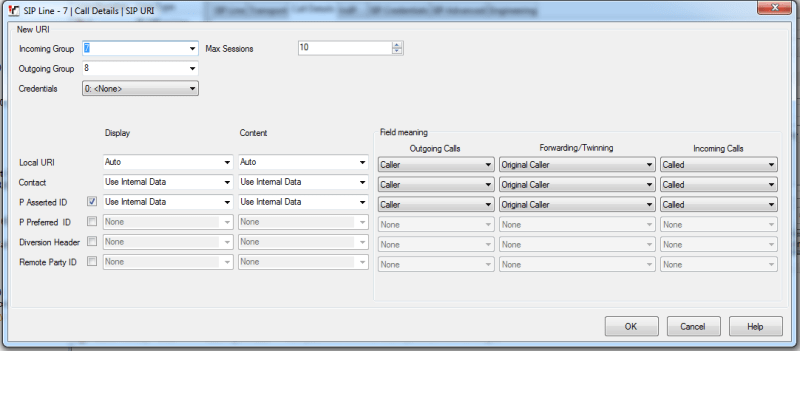

For Outgoing:

Is this correct for the IPOSE side, or there is something wrong or not configured, so I told the NEC Guy's that it's from your side to work on it.

Thanks
