Simphony 2 - How to pass arguments when you call a Payment Tender from ISL 1

[nvak]

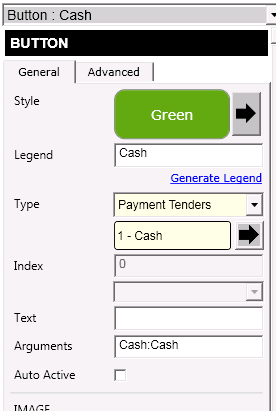

When you create a Button calling a payment tender in Page Design at micros simphony 2 you need to create a an arguments list as you can see in the above screenshot.

How can I pass those parameters from isl code when i call the same payment tender with isl code?

EVENT inq : 1
    LOADKYBDMACRO 7:1    //Arguments "CASH:CASH" needed here
ENDEVENT

Thank you all



[CathalMF]

LoadKybdMacro defkey( "Payment", N:PaymentNumber, A:PaymentArguments )

LoadKybdMacro defkey( "Payment", N:1, A:"Cash:Cash")

Do you want some custom SIM scripts developed. Contact me via my website

http://www.microspostools.com/



[nvak]

Thank you very very very much.



[CathalMF]

A bit of further explination to the defkey function.

The first parameter is the ops command name and the remainder are the parameters to this command where I indicates Index, A indicates Arguments, T indicates Text and N indicates Number.

You can get these values by creating the button in the page designer first and then copying a button from the page designer and pasting it into notepad. A cash button will look like this.

<ControlClipboard xmlns="clr-namespace:EMC.Application.General.Controls.MicrosGridEditor;assembly=EMC" xmlns:mouic="clr-namespace:Micros.OpsUI.Controls;assembly=OpsUI" xmlns:av="[URL unfurl="true"]http://schemas.microsoft.com/winfx/2006/xaml/presentation">[/URL]
  <mouic:Button OpsCommand="Payment" OpsCommandText="" OpsCommandIndex="0" OpsCommandNumber="2" OpsCommandArguments="Cash:Cash" ImageReference="     " Style="{av:DynamicResource MicrosAquamarine}" Width="Auto" Height="Auto" Focusable="False" av:InputMethod.IsInputMethodEnabled="True" av:Grid.Column="45" av:Grid.Row="0" av:Grid.ColumnSpan="5" av:Grid.RowSpan="4" av:AutomationProperties.AutomationId="micros.generated.Payment.2.0..Cash:Cash *">
    <mouic:TranslatedEntryManager.TranslatedEntryList>
      <mouic:TranslatedEntryCollection>
        <mouic:TranslatedEntry LanguageObjNumber="1" Text="Cash" />
      </mouic:TranslatedEntryCollection>
    </mouic:TranslatedEntryManager.TranslatedEntryList>
  </mouic:Button>
</ControlClipboard>

As you can see on the second line you can get all the values for the command, text, index, number and arguments.
