Siemens Hipath 4000 Fail To Start

[zieq]

Any one have an idea to solve this problem?

I have try to remove all card and plug again one by one but still fail



[member 1453342]

Try and load off CF card

Push LCT button on processor then RES



[zieq]

Dear Moriendi.
thank you for Advice
I have do push LCT Button then Res
but still fail



[member 1453342]

You could power off the shelves, don’t need them until you have an A on processor

Power off processor, reseat the DSCXL (it’s hot swappable but in this case I would power off). Reseat RTM on the back, and MCM module.

Try your backup CF card

With correct v24 cable you can get more info from service port,38400 8 n 1 (I think)

It will flash an error code on processor after 01, 4 more digits, when it reboots.



[eniyamath]

If the display not going above 6 and it goes and came to start from one.
may be this is due to HDD OS corrupt.
If you have spare HDD or Flash rewrite the image again



[eniyamath]

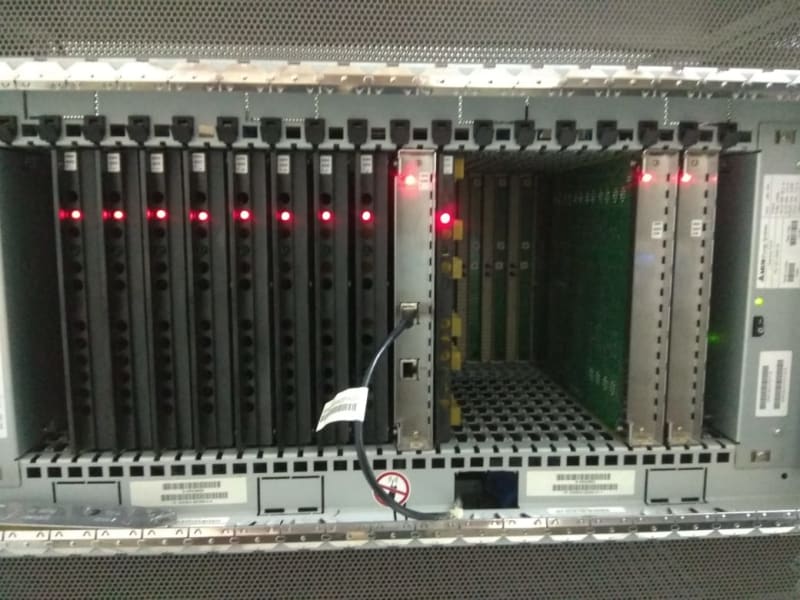

Asper the picture the problem is in Communication server
Not from the LTUs
the server itself shows 6
if it comes to 9,the the HDD image is Ok
the LTUs will come up after the display shows -.



[hipath4k]

Pls check the RTM module.
