Setup KDS system for micros 3700
- Thread starter mxap
- Start date
- Thread starter
- #3
Thank you.
I have KDS license.
I have small PC with windows 7 pro can be used as KDS station.
I have touch screen monitor connected to small PC.
Just trying to figure out what I need to install in that small PC acting as KDS station and where I can get those install files.
We have micros 3700 5.4 version.
Where will exactly the KDS "How to" documents be? I just need how to setup the KDS station and any workstation install files for micros 3700.
thank you so much.
I have KDS license.
I have small PC with windows 7 pro can be used as KDS station.
I have touch screen monitor connected to small PC.
Just trying to figure out what I need to install in that small PC acting as KDS station and where I can get those install files.
We have micros 3700 5.4 version.
Where will exactly the KDS "How to" documents be? I just need how to setup the KDS station and any workstation install files for micros 3700.
thank you so much.
You will need to setup the Workstation in Network Node and Devices as a KDS display.. When you run CAL on it it will install, the KDS software.
You will then need to set up a bump bar or virtual bump bar, order printing etc. If you search the Micros help under "K" Kitchen Display System will come up and have most the info you need
You will then need to set up a bump bar or virtual bump bar, order printing etc. If you search the Micros help under "K" Kitchen Display System will come up and have most the info you need
- Thread starter
- #5
Wildbar,
Thank you so much. I will be attempting this weekend. I have small windows PC with windows 7 Pro, 64-bit.
Questions:
How do I install the CAL or micros 3700 to this new PC which will work as KDS display machine?
Cam you please guide me through the process, such as the install files for this new PC?

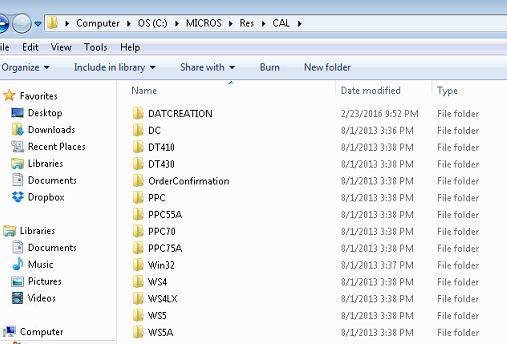

ON my micros server i have C:\micros\res\CAL folder and there are few more folders there. Which one will I need and what is the name of the install file?
thanks a lot.
Thank you so much. I will be attempting this weekend. I have small windows PC with windows 7 Pro, 64-bit.
Questions:
How do I install the CAL or micros 3700 to this new PC which will work as KDS display machine?
Cam you please guide me through the process, such as the install files for this new PC?
ON my micros server i have C:\micros\res\CAL folder and there are few more folders there. Which one will I need and what is the name of the install file?
thanks a lot.
You will need to install the standalone Micros CAL software on your your new KDS machine. Pretty sure if you search through these threads you will find a link to that software and the latest version. You will also need to setup your KDS in POSCONFIG on your server in devices - network node, devices, order devices and assign a bump bar in KDS Tool Bars. When you run CAL on your new machine and select the kds to install it will do all the setup for you.
- Thread starter
- #7
hosehead78
Technical User
Have a look here. You will need to setup an account.
When you sign in, search for 3700 and scroll through the list for the KDS. It should have the files you need. Not 100% but it should be there.
When you sign in, search for 3700 and scroll through the list for the KDS. It should have the files you need. Not 100% but it should be there.
- Thread starter
- #9
- Thread starter
- #10
