PTIME
- Thread starter OKACHA
- Start date
These are device dependent. I've never messed with these settings, but I can read a book!
From this manual: A31003-H3160-S101-7-7620, 05/2014, HiPath 4000 V6, AMO-Beschreibungen, Service Documentation

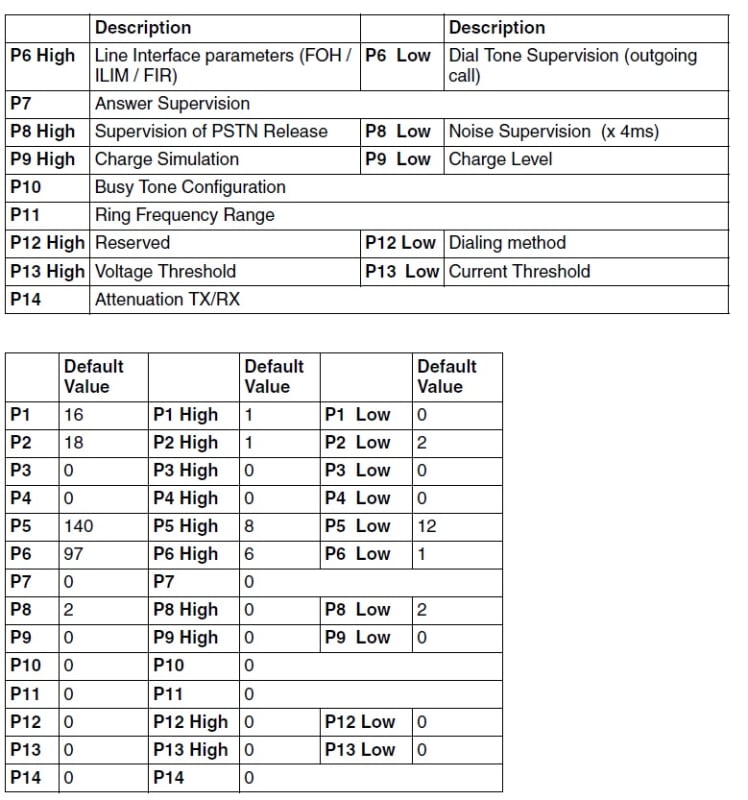

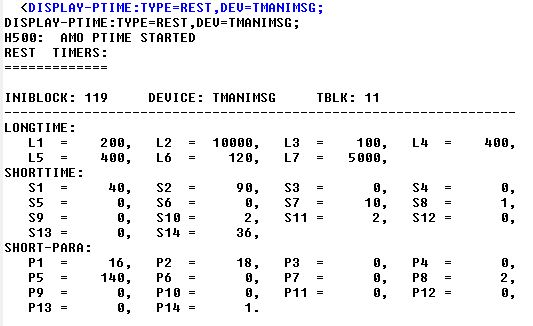

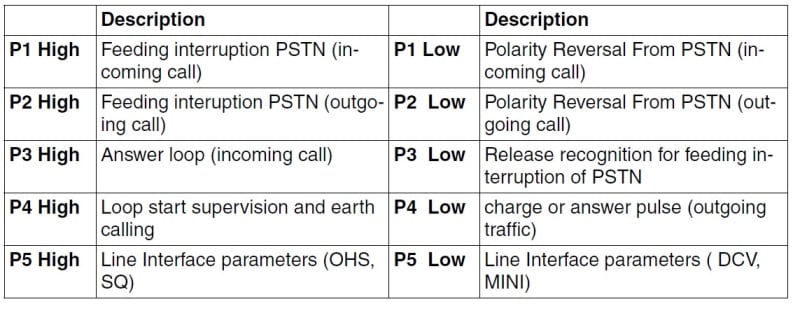

There are 3 different TMANI tables. From this table: (119): DB_AM_DEV_TMANI_HKZ: TMANI HKZ
Not totally helpful, but that's from the AMO guide! I'd suggest digging through that to get a better understanding of what's going on.
LoPath
Maintain HiPath 4000 V5 & V6, OpenScape Xpert V4 & V6, OpenScape Xpressions V7, OpenScape Contact Center V8, OpenScape Voice V9
From this manual: A31003-H3160-S101-7-7620, 05/2014, HiPath 4000 V6, AMO-Beschreibungen, Service Documentation
There are 3 different TMANI tables. From this table: (119): DB_AM_DEV_TMANI_HKZ: TMANI HKZ
Not totally helpful, but that's from the AMO guide! I'd suggest digging through that to get a better understanding of what's going on.
LoPath
Maintain HiPath 4000 V5 & V6, OpenScape Xpert V4 & V6, OpenScape Xpressions V7, OpenScape Contact Center V8, OpenScape Voice V9
Wouldn't touch the settings unless there is an issue.
Would take advise from the maintainer of the other system as what settings they want on the 4K.
Have had to change one once when using an Analogue (POTS) Card (NOT TMANI) to connect to a paging system. Otherwise, the lines when into DEFIL when the paging request ended.
Would need to find what was changed.
Would take advise from the maintainer of the other system as what settings they want on the 4K.
Have had to change one once when using an Analogue (POTS) Card (NOT TMANI) to connect to a paging system. Otherwise, the lines when into DEFIL when the paging request ended.
Would need to find what was changed.
