Phone paging lock up

[fonejack]

Recent problems with phone paging lock ups and users just getting busy signals. This happens about once per week. Bogen DFT 120 connected through trunk. Doing a status on the trunk when locked shows in-service active but shows no connected ports. A busy and release fixes the problem but I'd like to solve the problem. The question is-- Is there a recommended Avaya configuration for phone paging? EG. Using trunks or paging modules and program settings? Any help is greatly appreciated



[AvayaTier3]

Hardware platform? Definity / CM Software version?

Speakerphone paging groups are internal to the pbx and do not use loudspeaker paging programming
or external paging amplifiers. These first loads to introduce the feature had many bugs and locked
up to busy, quite often. Command: reset system 2 (or higher should start them working again)

list group-page

                         SPEAKERPHONE PAGE GROUPS

  Group   Group                                                  No. of
  Number  Ext.   Group Name                            COR       Members

  1       2939   Sales                                  1          32
  2       2940   BSS Group                              1          32
  3       7998   CUST SVC                               1           1
--------------------------------------------------------------------------
change group-page 1                                             Page   1 of   1
                       GROUP PAGING USING SPEAKERPHONE
    Group Number: 1                             Group Extension: 2939
      Group Name: Sales                                     COR: 1
GROUP MEMBER ASSIGNMENTS
    Ext     Name                            Ext     Name
  1: 2143   Judi Robertson              17: 2101    Steve Barwick
  2: 2116   Visitor 1                   18: 2118    Olszak, Jan
  3: 2115   Lobby                       19: 2119    Storage
  4: 2114   File Room                   20: 2120    Conference Room
  5: 2113   Allison Polansky            21: 2121    Richard Coatney
  6: 2112   Tanisha Richmond            22: 2122    Joni Driscoll
  7: 2111   Seth Tidwell                23: 2125    Toby Begnaud
  8: 2110   Bruce Korver                24: 2127    Geraldine Claudio
  9: 2109   Storage                     25: 2128    Missy Davis
 10: 2108   Amy Tucker                  26: 2131    Chris Davis
 11: 2107   Sue Manuel                  27: 2133    Tom Wingerter
 12: 2106   Bobby Parker                28: 2134    Propst, Linda
 13: 2105   Jack Win                    29: 2135    Jimmy Moore
 14: 2104   Phone Room                  30: 2136    Amy Harrett
 15: 2103   Kitchen                     31: 2140    Steve Pittillo
 16: 2102   Stephanie                   32: 2141    Patrick Seals

A great teacher, does not provide answers, but methods to teach others "How and where to find the answers"

bsh

40 years Bell, AT&T, Lucent, Avaya
Tier 3 for 30 years and counting
[URL unfurl="true"]http://bshtele.com[/url]



[fonejack]

This is overhead paging not speakerphone paging. Running G450 on CM 6.3. Again my question is -- Is there a recommended Avaya configuration for overhead phone paging? EG. Using trunks or paging modules and program settings?



[dialtonebone]

Do you have disconnect supervision activated on the TG?

Another thing: You could reprogram this is as a loopstart station. Make sure to adjust the paging equipment accordingly.

To answer your question directly: This system is compatible with all types of paging. I don't know if Avaya has ever had an official recommendation, but I know they offer rebranded Bogen equipment.



[ddog6601]

I had the same issue where I worked before. I never got a permanent fix ! Just had to o the busy / rel just like you. Please make sure to update the board if you do find a fix.



[fonejack]

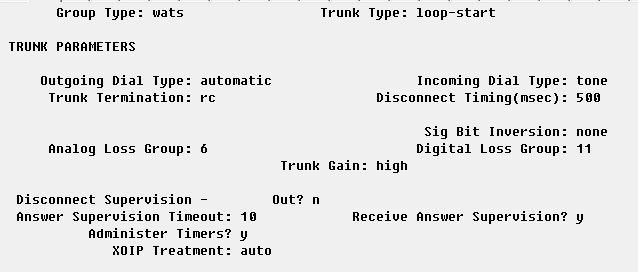

Disconnect supervision is turned off. I get a warning message when turning it on, so I left it off (WARNING: Setting this field to "y" may result in trunk lock-ups)

Are you saying I could set this up as a regular station? Any specific program settings on the station?
