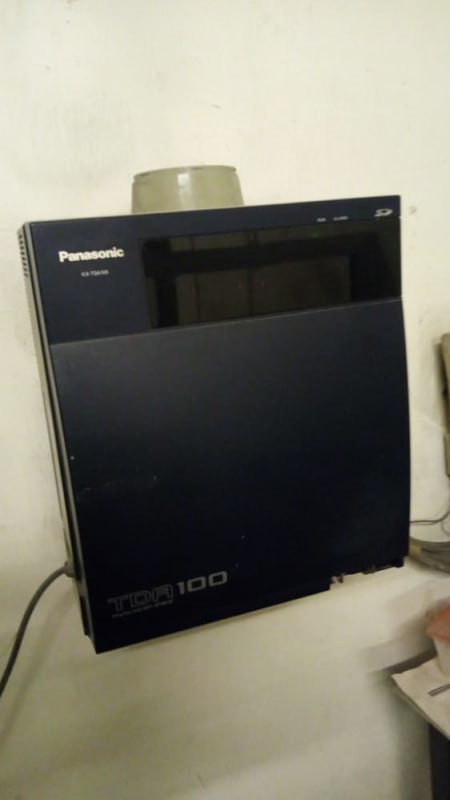

Panasonic tda 100 line cards all showing red light

[Alex_2021]

I went for maintenance but I found out that the Panasonic tda 100 hybrid cards are all showing red light.i have reset it but it still showing same thing.what do I do?
Please help.



[kizo]

If you have power supply M-type PSLP1433 try replacing with another

There are no stupid questions, there are only stupid answers!



[Alex_2021]

The CPU boots and restarts again without powering the line cards.could it be the CPU, memory card or power?



[Mike_K]

Describe the behavior of LEDs Run and Alarm.



[kizo]

Replasing PWR unit

There are no stupid questions, there are only stupid answers!



[Alex_2021]

If it blinks on red during booting,
It Will still reboot again on red.it doesn't enter to run.it continually Binks in red.



[kizo]

M-power has produced in four version, one of this (PSLP1433) often has a problem with AC detector.
Replacing it.

There are no stupid questions, there are only stupid answers!



[Alex_2021]



[Alex_2021]



[Alex_2021]

Hello ..please I haven't gotten any solution to this equipment.pls help a brother.



[obtsystems]

Is the sd card led flashing or just one or two flicks

Have you tried to read the sd card to see if it is readable



[Alex_2021]

Its flashing..



[kizo]

Remove CPU card from PBX , with a small screwdriver (or something similar) pull out pin B42 4-5 mm, return CPU into PBX

There are no stupid questions, there are only stupid answers!



[Alex_2021]

I have done that..what else



[kizo]

You probably have an old version of MPR. No problem!
Connect with a short wire pin B42 and B30 for disable AC alarm detector.

There are no stupid questions, there are only stupid answers!



[obtsystems]

Did you put the SD card in a reader to see the files are ok on it



[Alex_2021]

Yes I did..the files are okay



[Alex_2021]

I have changed the CPU..its still doing the same thing



[kizo]

does it look like this?

https://drive.google.com/file/d/100Nvtl9c-8Hjy17LJOxbo3KsDPO_-Xkd/view?usp=sharing

There are no stupid questions, there are only stupid answers!



[Alex_2021]

That's exactly how its behaving bro.what do I do?
