Paging Overhead and threw the phones 1

[dsm600rr]

Hello all,

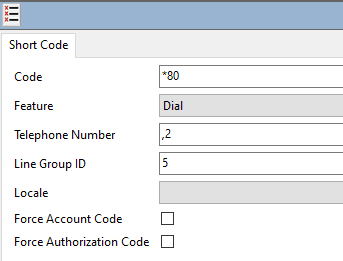

I have a client that we installed overhead paging that uses the following short code:

They are also looking to add the phones to the paging, is this possible?

Thank you.

ACSS



[budbyrd]

You will need to be able to access the paging system with a analog station programmed as a page port. You can't add trunks to a page group. I may be able to help you further if you specify what paging system you are connecting to as some of them don't play well with the IPO.

Dermis and feline can be divorced by manifold methods.*
*(Disclaimer for all advise given)--'Version Dependent'



[dsm600rr]

budbyrd: Thank you for the reply. Their Paging System is a Valcom V-2003A

ACSS



[budbyrd]

Okay. That one is a little tricky since it is a 3 zone system.
For that one you will need a Bogen WMT-1A connected to the background music input to send out an all page with out needing to dial an access code.
It is a 600 ohm to 15K ohm transformer. Telephone input to line level output. The IPO needs to see the 600 ohm to make the page port work.
I see in the short code the page is specific to zone two. Is that correct? If that is the case there are DIP switches that control which zones get music.

I would keep the trunk access for zone paging.

I hope that helps.

Dermis and feline can be divorced by manifold methods.*
*(Disclaimer for all advise given)--'Version Dependent'



[dsm600rr]

budbyrd: Really appreciate it - paging is not my forte haha. Star for you.

You are correct, the original person who wired up the system fried zone 1 somehow

ACSS



[budbyrd]

If they are only using one zone you can take the 2003 out and use a Valcom VMT-2. It is a straight 600-600 transformer. Connect one side to the IPO page port and the other to the Valcom audio pair. The only reason you may need to leave the the 2003 is if they are using it for power for the speakers.

You are more than welcome. I am the paging/special systems guy for our company. The 17 years working on the IPO is just a bonus.

Dermis and feline can be divorced by manifold methods.*
*(Disclaimer for all advise given)--'Version Dependent'



[dsm600rr]

budbyrd: They are indeed only using one zone. The company that sold them the paging system sold them a 3 zone for an unknown reason. They are a vet clinic and only page w/one zone.

I will check out the Valcom VMT-2. Would this device use an analog station port, rather than the trunk port I am using for the 2003?

ACSS



[budbyrd]

Yes. It will use the page port. You could disconnect the trunk and fix the short code to be Dial Paging/ext# if you needed to do just an overhead page.

Dermis and feline can be divorced by manifold methods.*
*(Disclaimer for all advise given)--'Version Dependent'



[dsm600rr]

budbyrd: They are indeed using the 2003 to power the speakers.

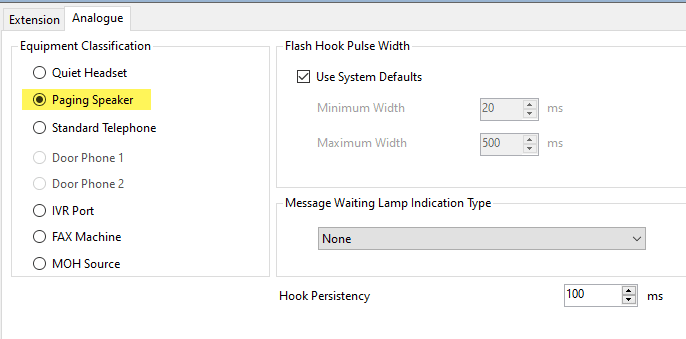

Would I just Program the Analog Station Port as a "Paging Speaker"?

How does the Valcom VMT-2 connect to the existing 2003?

How does the IPO interface with the Valcom VMT-2?

What other IPO Programming is needed other than adding that Analog Station programmed as a page port in the paging group?

Thank you!

ACSS



[budbyrd]

Yes. Just program the analog port as a paging speaker. The VMT-2 has input and output screw terminals. The IPO analog port wires just like an analog phone except the wht/blu pair connects to the input of the VMT-2. Since you are using zone two, remove the R/G-G/R pair field wiring from the 66 block connected to the V-2003. Leave all the wiring in place. Connect the field wiring to the output of the VMT-2 and you are done.
This link is the manual for the V-2003. On page 8 is the wiring diagram that will give a more visual idea of the wiring. All you are doing is connecting the audio pair to the speakers and leaving the power pairs.

No other programming should be needed in the IPO.

https://www.valcom.com/data/api/media/files/v-2003av-200ahf.pdf

Dermis and feline can be divorced by manifold methods.*
*(Disclaimer for all advise given)--'Version Dependent'



[budbyrd]

Let me know how it goes. I always like to hear success stories..

Dermis and feline can be divorced by manifold methods.*
*(Disclaimer for all advise given)--'Version Dependent'



[dsm600rr]

budbyrd: Definitely will do, waiting on the client to give the go

ACSS
