NEC SL2100 Trunk to trunk transfer issue 1

[hanjo]

Greetings,

Could anyone please help me to set up correctly ,trunk to trunk transfer,
I'm new user of NEC SL2100,and I checked for trunk to trunk transfer enable and CO trunks.

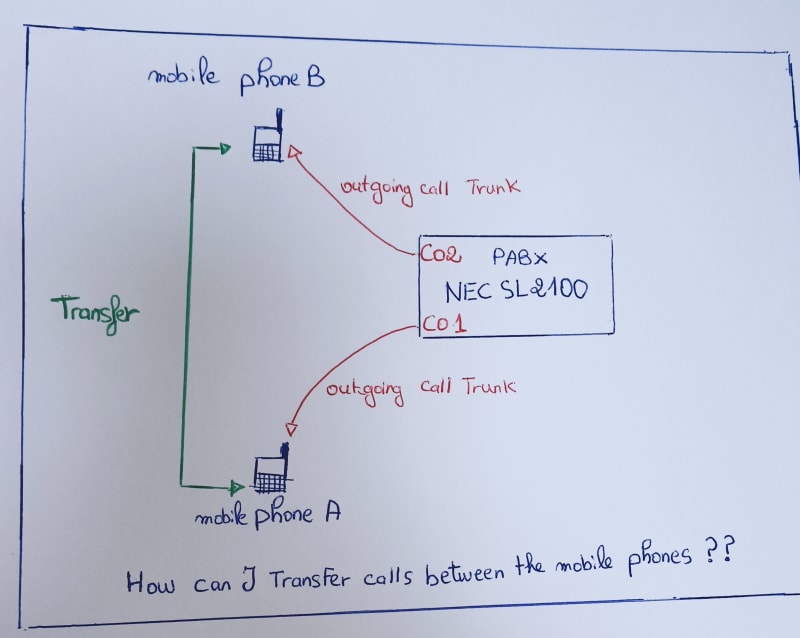

the Issue is : When I make a call from an operator "200" to an outside mobile phone "1", the operator "200" transfer the call to the outside mobile phone "2". when I hang up the operator "200", the outside mobile phone "2" also automatically hanging up.
is there any solution to solve that problem??
Cordially



[CoralTech]

I believe instead of hanging up you press transfer again to send the call on it's way. Then hang up.



[hanjo]

Thanks sir , but unfortunately it still doesn't work.



[hcmbmt]

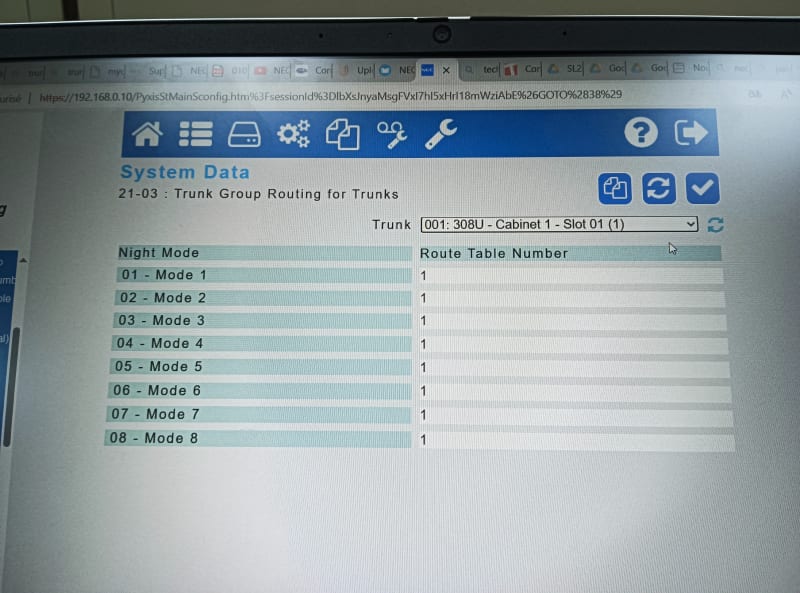

21-03: assign trunk group 1 (if you use default) for all modes.



[CoralTech]

Stupid question, how many line appearances or loop keys do you have on that phone?



[hanjo]

I've said that I'm new to NEC so it's not a stupid question,
12 loop keys but I need the use of 2 only .



[CoralTech]

Ya, I just tested it. Granted this is a 9100 it should be the same.

Call answered, TRF dial number what for it to ring or answer press TRF to bridge the calls.

I can test this on a 2100 at some point when I go on a customer site.
