LCR on SV9300 (not allow call to guest extension for admin extension)

[TanNec]

Nice day to every one!

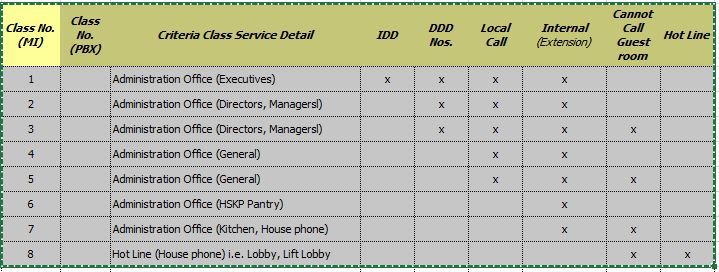

I have received the requirement Hotel for Class of Service (COS) as attached picture? One of requirement that is the limit internal call.
That mean is Admin extension not allow to call Guest extension? Please help me how exactly i will check what command or feature. Thanks for reading and supporting.



[OzzieGeorge]

This isn't an LCR feature. What you will need to do is create a new tennant (eg tennant 2) then in command 20X (normally 200 is used so for example use 201) re create the entire number plan except for the extension number range (so if your extensions are set to be 6xxx you will probably have 6 set to 804) now in 201 set only the full 4 digit numbers of your Admin extensions to 804 ((so in Cmd 200 you would have 6 de 804 but in Cmd 201 you will have 6xxx set to 804). You then use Cmd 29 to assign 201 to the new tennant and Cmd 1204 to put the admin extension into that tennant. Because only the 4 digit numbers you set to 804 in command 201 are seen as valid extension numbers, those are all you can dial internally.



[belevedere]

Try CMD 631, restriction of inter office connection.
This command is used to define the restrictions on inter-tenant access.
Program the stations into different tenant groups, then allow or restrict calling between tenants.
