IX workplace enterprise directory

[mic501]

We used to have the directory listed in one-x and the old avaya communicator but cannot get this to work with ix workplace.

I have an application server running on the UC module in ip500v2.
I have a trusted certificate on the IP Office and installed the same certificate on the application server.
I can place calls using IX workplace but no way to list the IP Office directory.

Does anybody knows what should be the settings to use in the IX workplace Enterprise directory as per attached screenshot?
Do they have to be IP Office ip address or App Server IP Address? TLS? and what port is used for the directory?



[Ekster]

Avaya Workplace does not use the One-X Portal for its directory, it gets it from the IPO using http/https ports 80/443.

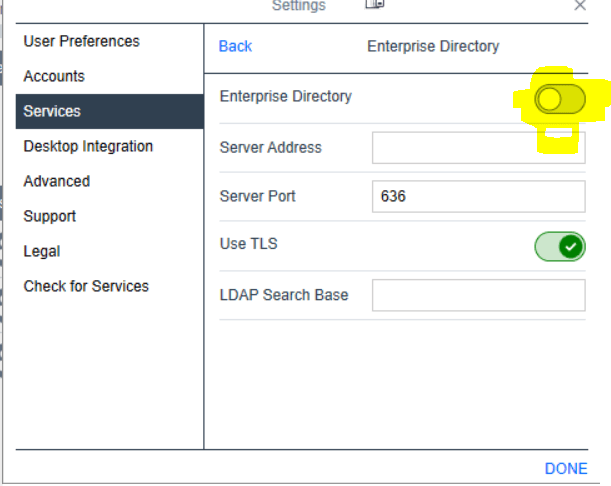

The Enterprise Directory service is not needed, so turn it off.

“Some humans would do anything to see if it was possible to do it.
If you put a large switch in some cave somewhere, with a sign on it saying 'End-of-the-World Switch. PLEASE DO NOT TOUCH'.
The paint wouldn't even have time to dry.”

Terry Pratchet



[mic501]

Thanks for the tip.
I removed that but nothing loads from the IP Office directory.
When I type some initials in the contact search nothing shows up and "Enterprise Directory not available" is shown.
I also have a yellow !mark "Contact Service problem..your contacts may not be up to date"

I am not behind any firewall..I am running the app on the same network of the IP Office to test it out first.



[sizbut]

If I recall correctly, the directory uses HTTPS, so most likely port or certificate issue.

Stuck in a never ending cycle of file copying.



[Archangel58]

Try searching for a known contact name. If it comes up, you have to save it for it to always be displayed. You may also add names to Favorites by clicking the star icon.



[ipohead]

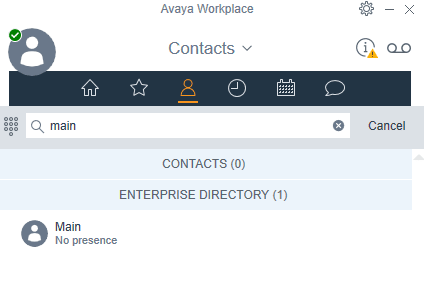

It seems you have to type in the first few letters to bring up a result. This is from the IPO directory and Enterprise directory off.

This may be to stop IX Workplace having to store the whole directory.



Looking at the settings enterprise directory needs an LDAP server.



[mic501]

when I typed:

https://ipoffice

address/system/user/scn_user_list

I managed to get the directory in xml format in the browser. Therefore from IP office all is good.
I am using a trusted certificate but cannot get the directory to show in the App. Is this issue certificate related?



[critchey]

Are you using TCP or TLS? If I remember right you have to be using TLS with a valid certificate for the directory to work.

The truth is just an excuse for lack of imagination.



[mic501]

I am using TLS. The certificate is valid..so really strange.



[derfloh]

Perhaps the root cert doesn’t fit?

IP Office remote service
IP Office certificate check
CLI based call blocking
SCN fallback over PSTN



[mic501]

So managed to get this to work and to get it to work I have to forward port 443 on the firewall to the IP Office.
My question is...is it secure enough?
if someone now uses a browser and types in the URL of our public ip will get access to attempt a login to the web management interface of IP Office.



[mic501]

I would like to give a tip to those (like me) who wasted precious time trying to connect IP Office directory in IX workplace.

The only method that works is to get the IX workplace application (both on smartphones and on Windows) to retrieve automatic settings using URL (example:

https://certificatenameonipoffice.domain.com/46xxsettings.txt)

Certificate must be trusted on ip office. To verify this..use your browser and goto

https://certificatenameonipoffice.domain.com/46xxsettings.txt.

Make sure that the browser should not give you any certificate warnings to the page opened.

Forwarding SIP socket being used towards IP Office (ex: 5061 - depending on your system>lan>voip>SIP registrar setting (together with the UDP range of ports)
Forward port 443 towards ip office.



[Albus2]

@mic501

Use 'preferred ports' which is 8411 instead of 80 and 411 instead of 443.
Only forward port 411 on the firewall.
You do not need ports 80/443. Keep it closed! (Same with TLS port 5061, use something different)
The settings file is then something like

https://certificatenameonipoffice.domain.com:411/46xxs...

You may also forward 8411 and use settings file as

http://certificatenameonipoffice.domain.com:8411/46xxs...

The client will load the root certificate and use TLS afterwards. This means users do not need to install root cert before.

Result is, Workplace is fine, also remote J100 phones. But if someone points a browser to this address:443 he will not get anything, and 411 does not expose management interfaces.
