IVR return to the TOP menu error

[nortavaya]

Hi all,

I have configure Call Flow in IPOCC with main menu and DTMF choises, then the call goes to the second Call-Flow with another DTMF menu and other choices, all works good excpet one choice in the second menu asking caller to press 0 if you want to retunr back to the Top menu but the call goes disconnected.

I check on the IVR logs of IPOCC and found this error: 9103

any idea ??

Thank you



[janni78]

Subscriber hung up before or during the announcement"

"Trying is the first step to failure..." - Homer



[nortavaya]

The call disconnect before the announcement of the top menu



[janni78]

Post a pic of your IVR flow

"Trying is the first step to failure..." - Homer



[nortavaya]

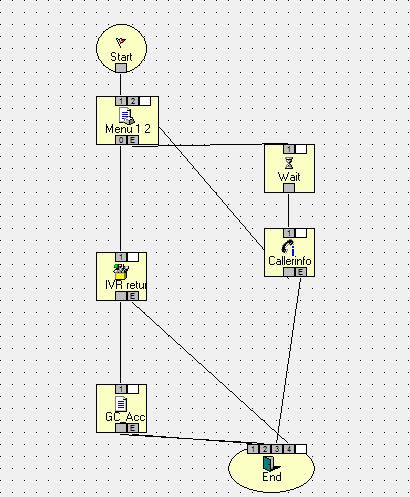

Please find the IVR I have build for return to menu



[janni78]

It should work although your lines are horrible =)

The attribute for Callerinfo should be "Caller's Number", but I send them through a Drop before the End if it goes to E.

In IVR log after the 9103 error your should get another error code as it goes through the Callerinfo element.

"Trying is the first step to failure..." - Homer
