How do I connect S30817-S7406-A103-26 to S30817-S7402-D303-015 ?

Status
Not open for further replies.

ras2004a

Systems Engineer
Dec 14, 2023
6
RU
Good day!


There is a phone
Software version V3 R5.21.0 SIP 200904
Last restart 2023-12-14T02:25:48
Backlight type 2
Part Number S30817-S7402-D303-015

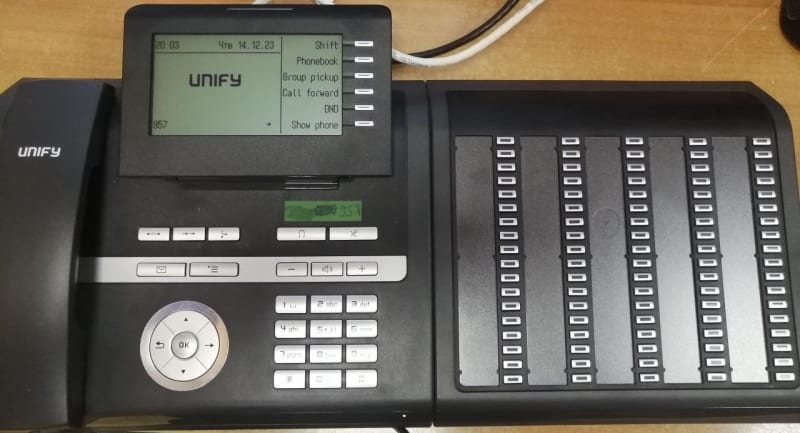

and the OpenStage 40 occupancy indicator field
Factory Number: S30817-S7406-A103-26


in WBM, only "Key Module 1" is available
, therefore it does not work correctly.


How do I connect S30817-S7406-A103-26 to S30817-S7402-D303-015 ?

How do I connect "openstage busy lamp field 40 lava" to "OpenStage 40 HFA"?

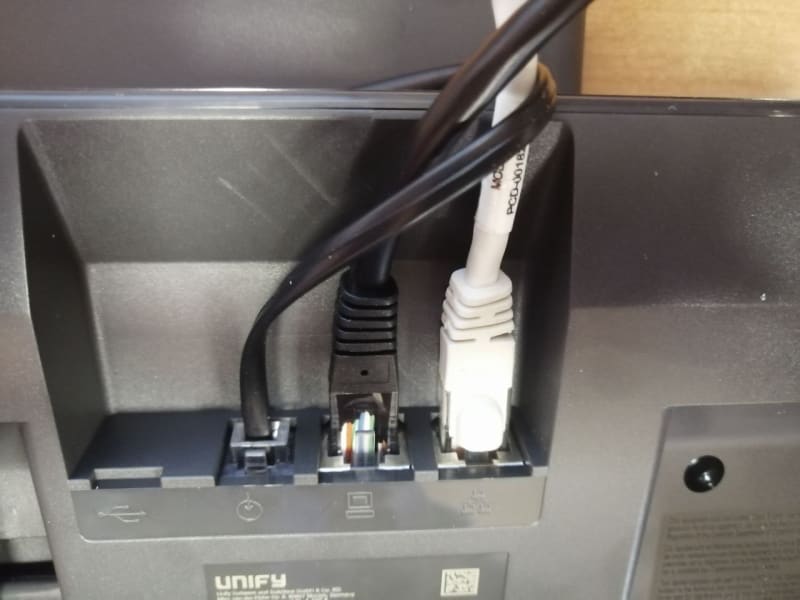

You will need a power supply if it is the large Busy Lamp Field (BLF)- plug the BLF into the power supply and then plug the power supply into the telephone wall socket - after that connect the BLF to the telephone.
Then you will have to complete some programming

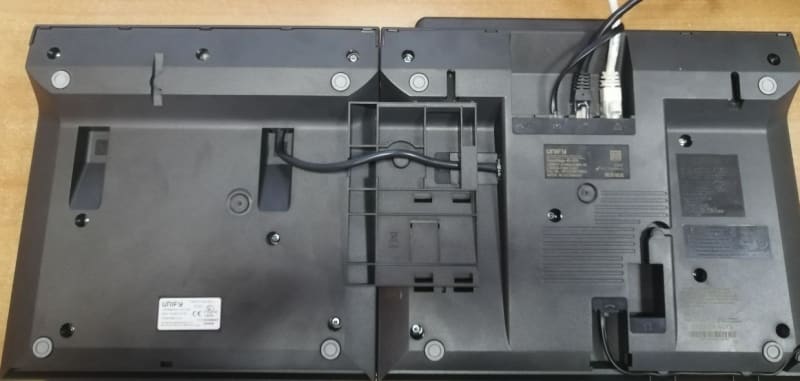

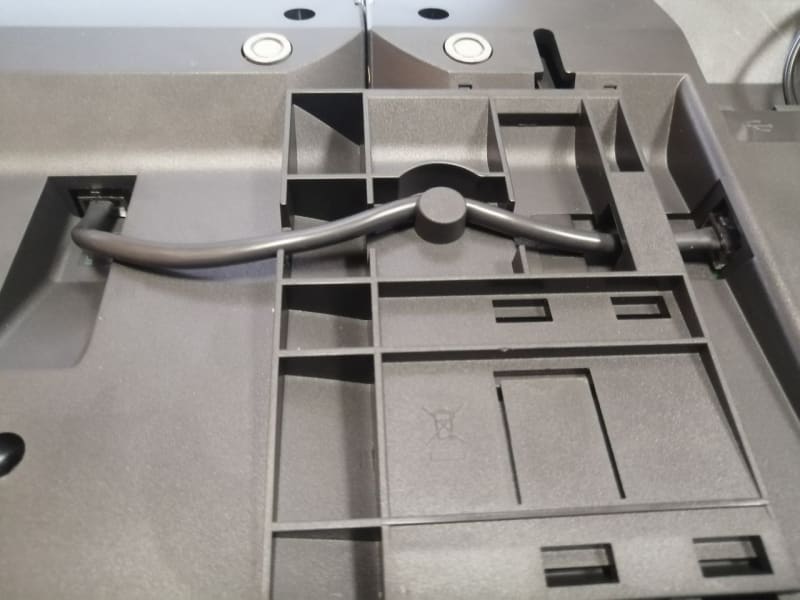

There is no additional power supply in the BLF unit. A power supply for connecting two devices.




Key Module 1 ??

So you have it all connected - what is your question ?

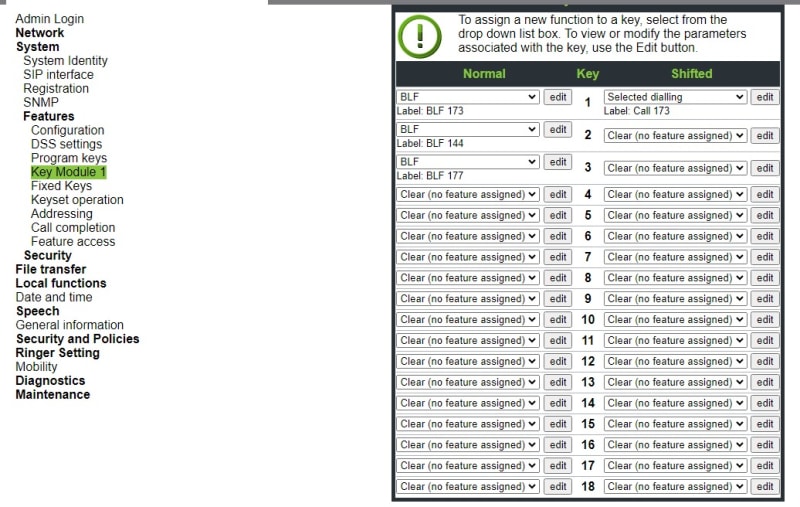

BLF has 90 buttons, and the Web has only 18.
When you press the button, there is no call.

REP=0
and
BLF=YES
must be set in AMO SBCSU

Also check TAPRO

You haven't said what PBX you are connected to, or what software version, but for BLF on an OS4K, you should be using an HFA phone, and it's clear in your screenshot the phone is flashed as SIP.

I THINK this is a HiPath 3000/OpenScape Business system ??? - the above REP=0 etc. is for HiPath 4000/OpenScape 4000

If so then you need to log on to the Manager E

The device will work with another PBX (not with OpenScape Business x8) using the sip protocol. Therefore - SIP. The buttons on the phone itself work fine. And BLF also works on these buttons.


The question is why the "openstage busy lamp field 40 lava" module is not detected correctly in the "OpenStage 40 HFA" phone. Only "KeyModule 1" is available in the Web admin panel of the phone.

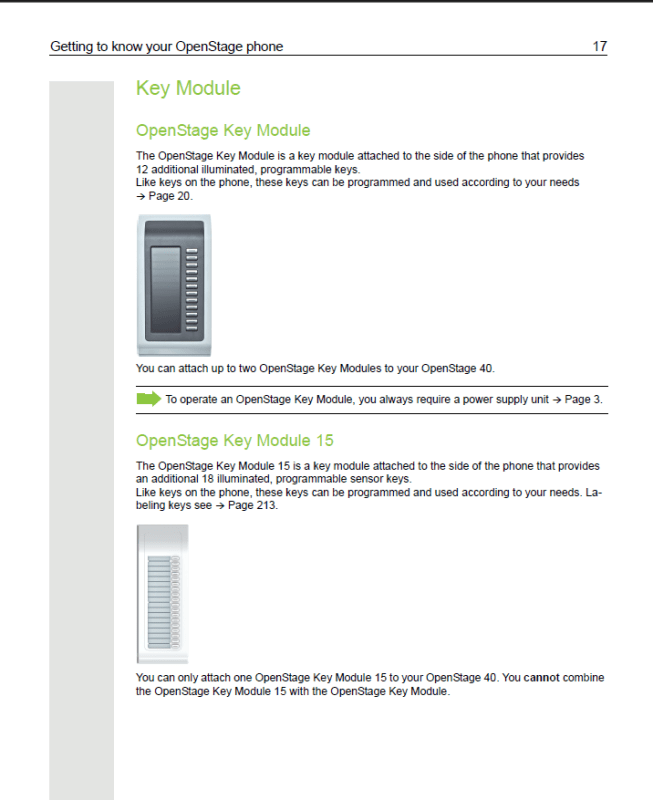

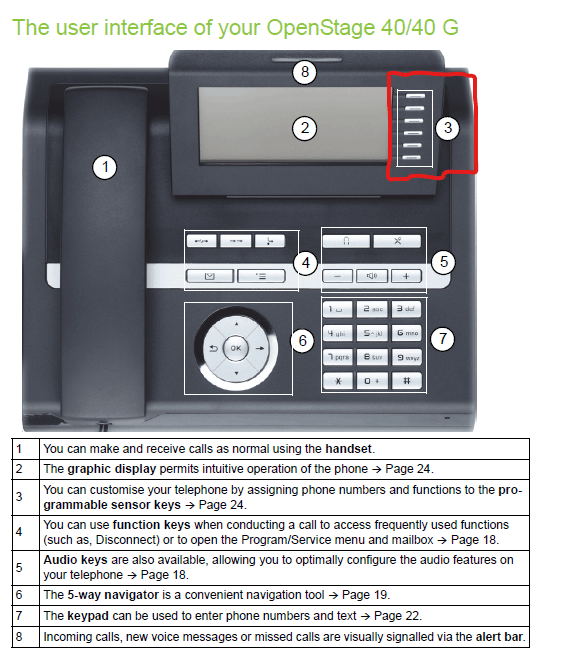

It's not working because the phone is flashed as SIP. BLF is supported with HFA and TDM versions only. You can see this in Unify's own documentation.


You write this 'module is not detected correctly in the "OpenStage 40 HFA" phone' but the phone is no longer HFA. Might have been once. But now it's SIP.
