Hi all, Would like to ask any po

Status
Not open for further replies.

jainul

Technical User
Jul 30, 2023
2
AE
Hi all,

Would like to ask any possible idea for me to login into my kxtda100. I getting error invalid password(E030103) thru usb by using the password of 1234 or 0000. I had try to reset the system on the DMPR card by pulling off the power and put it on init state and slide to normal after I turn it on. But I think the attempt to reset it fail as I can't login to the console. So can anyone advice me how to login to the console.

need remote support.

mohammadavedin@gmail.com

 https://files.engineering.com/getfile.aspx?folder=59649d83-0a23-4255-9007-d1e3720852d3&file=Capture_ojgxm8.png
When You're talking about DMPR card this means that your PBX is NOT KX-TDA100, but KX-TDA100D.

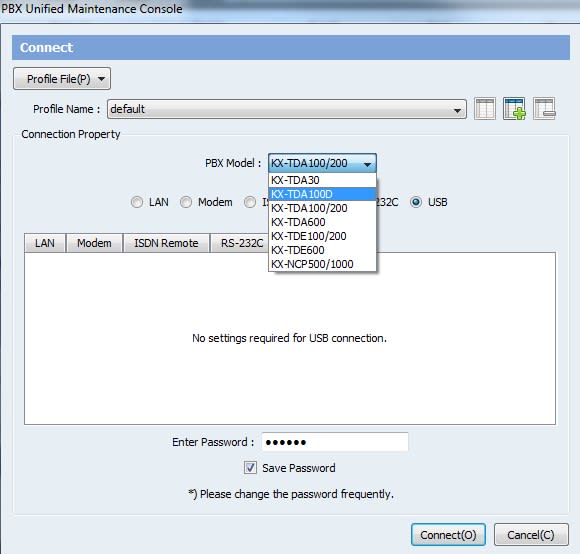

That's why You should select exactly KX-TDA100D for connection. See attached file.
