Generating an identity certificate for the ASBCE 1

[dsm600rr]

Hello all,

I have created this certificate without an SBC. I am now trying to create the certificate for the SBC.

Is the only difference between the two:

- "Machine IP" is the Public IP Address to be assigned to the SBC?

Same SAN's and what not?

Currently with no ASBCE I Use the Following SAN's:

DNS:Our_FQDN,DNS:Our_Domain,IP:192.168.1.251(IPO),IPublic_IP,URI:sip:Our_FQDN,URI:sip:Our_Domain,URI:sip:192.168.1.251(IPO),URI:sipublic_IP

ACSS



[derfloh]

You also have to geladen the internal IP addresses Eutin the SANs.

IP Office remote service
IP Office certificate check
CLI based call blocking
SCN fallback over PSTN



[dsm600rr]

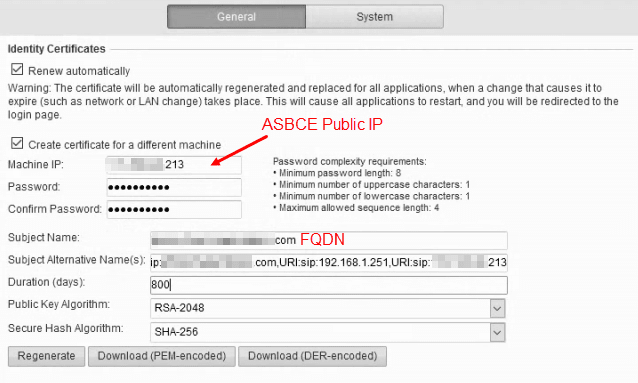

derfloh: the 192.168.1.251 is the internal IP Address. When I try and generate the certificate it does not like something:

SAN's:
DNS:Our SIP Registrar FQDN
DNS:Our SIP Domain Name
IP:192.168.1.251 (Internal IPO)
IP:XXX.XXX.XXX.213 (Public ASBCE)
URI:sip:Our SIP Registrar FQDN
URI:sip:Our SIP Domain Name
URI:sip:192.168.1.251 (Internal IPO)
URI:sip:XXX.XXX.XXX.213 (Public ASBCE)

ACSS



[janni78]

The public facing certificate should only need the DNS you use to connect to SBC and SIP domain if it's different.

"Trying is the first step to failure..." - Homer



[dsm600rr]

janni78: So for the identity certificate for the ASBCE I should only need:?

DNS:Our SIP Registrar FQDN
DNS:Our SIP Domain Name

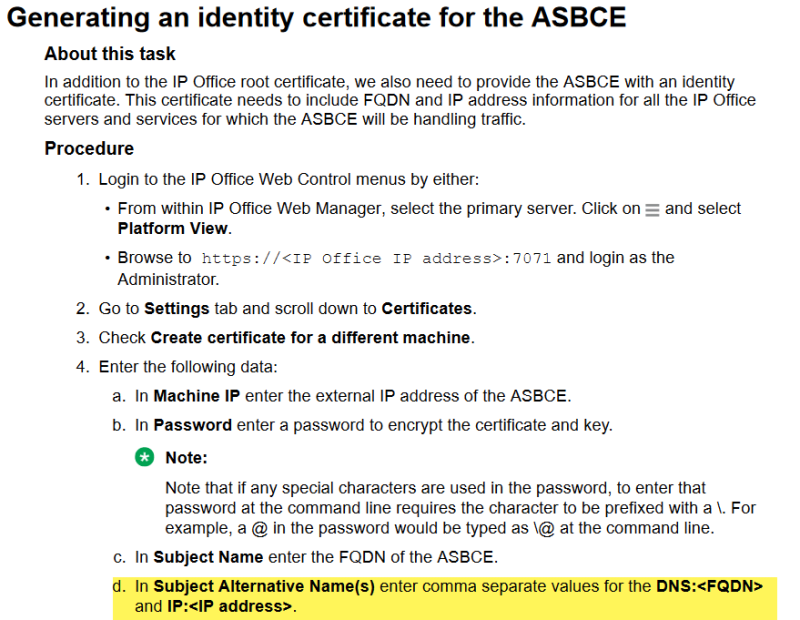

The document mentions an IP Address however does not specify what IP Address

ACSS



[janni78]

It says right on the top, it need FQDN and IP of IP Office and AppServers the ASBCE is handling traffic for.

"Trying is the first step to failure..." - Homer



[dsm600rr]

janni78: Guess it helps if I read everything.

So I have:
DNS:ipo.company.com,DNS:company.com,IP:192.168.1.251 (Internal IPO)

Would I need to add one more IP Entry for the Application Server running VM Pro? Its on a different VLAN

Not sure if the Domain is requred in addition to the FQDN, that is how I did the certificate without the SBC

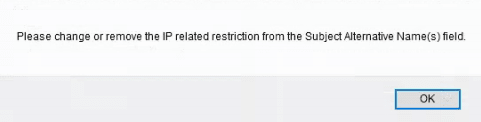

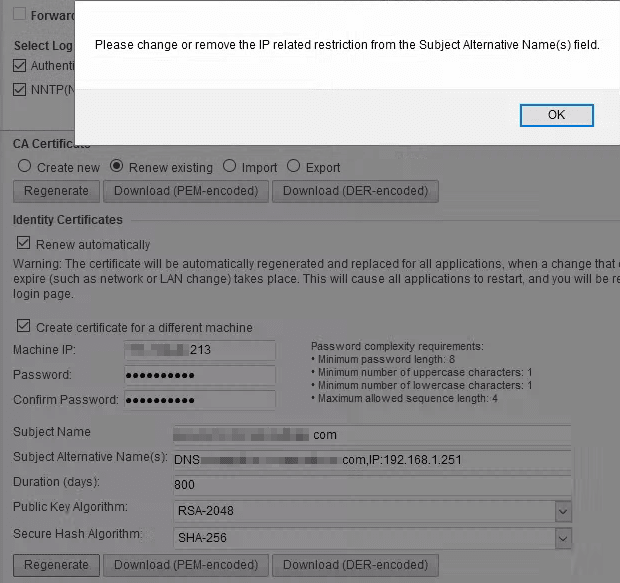

I am not sure why this keeps complaining about the IP Address:

ACSS



[derfloh]

For the public facing interface you will be good with SIP FQDN and SIP domain. It can't be wrong to add the public IP as well but as long if the configuration only uses FQDNs and no IP addresses FQDN is enough.

IP Office remote service
IP Office certificate check
CLI based call blocking
SCN fallback over PSTN



[dsm600rr]

derfloh: So I do not need to put the local IP Address of my IPO in the SAN?

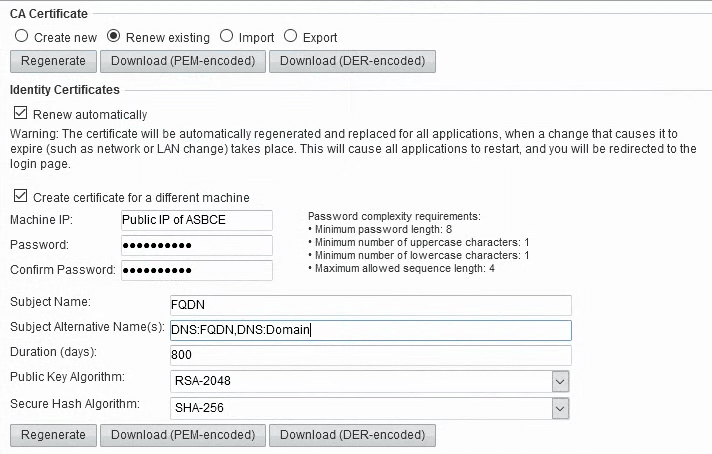

Like so:?

ACSS



[derfloh]

Yes

IP Office remote service
IP Office certificate check
CLI based call blocking
SCN fallback over PSTN



[dsm600rr]

derfloh: Thank you. Question on the IP Office root certificate as well.

When you download as "PEM-encoded" the file is a .pem file

The document states to re-name it as .crt

Is that correct or a typo?



ACSS



[derfloh]

That's OK, yes...
