Confused with a SIP line and DID's 2

[jayjr1105]

Excuse my ignorance. We are now just starting to resort to SIP trunks over pots lines and I'm a bit overwhelmed.

Do I need a separate SIP URI for each DID or is there a trick to setting up one and having all the DID's work from ICR?

This particular SIP trunk is authenticating via our public IP address and I can't get calls to go through unless I enter the DID number in the Local URI field for EACH DID.

Edit: It seems I need a unique SIP URI for each DID I have created in ICR. Normal?



[Pepp77]

Nope.

You need a single entry set to * * * or Auto Auto Auto to allow any number to be entered into the ICR.

| ACSS SME |



[jayjr1105]

This is an older release (9.0) and doesn't have the auto setting for any of those fields like 10.0 and above does...

So just manually enter a * in all those fields?



[Pepp77]

Yep, one URI with *s for the 3 sections

| ACSS SME |



[jayjr1105]

Thank you sir! Working well.



[jayjr1105]

Okay, quick follow up... What determines outbound caller ID? I've seen the ARS table with Ns######### but does that work with SIP?

Ugh, client cannot make a call if one person is already on a sip call.



[teletechman]

go to the user SIP tab and enter the users DID there.
Mike



[jayjr1105]

I did that and outbound shows anonymous still.

What would be limiting two SIP calls from happening at the same time?



[jayjr1105]

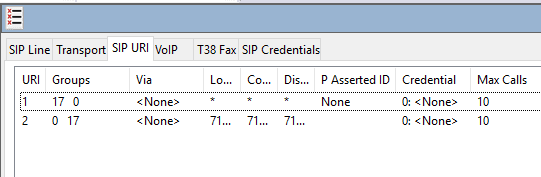

Here's what my SIP URI's look like. Am I doing something wrong?



[TouchToneTommy]

If you want to control the outbound CID via the ARS entry (NS1112223333), use the line group id for the SIP URI that is */*/*

If you want to control the outbound CID via the User's SIP Tab, use the line group id for the SIP URI that is Internal/Internal/Internal



[Pepp77]

Also make sure CLI presentation is turned on on the SIP trunk at the providers end.

| ACSS SME |



[IPGuru]

Another BIG question Jay
you are authenticating Via Public IP address
how have you set the IPO to achieve that & how have you configured the router?
Get this wrong & your system will get hacked very quickly



Do things on the cheap & it will cost you dear



[jayjr1105]

IPGuru, I have the IPO behind a firewall with a policy in place for SIP, blocking outside access from everything other than the SIP provider.



[IPGuru]

* given to Jay to highlight just how important it is to get this correct.


Do things on the cheap & it will cost you dear
