BUG4382 - VOIP phones - can't dial out nor receive incoming calls

[SherWat]

CS1000 at 7.6
I get BUG4382 errors on my IP phones
BUG4382
BUG4382 : 0EF2795C 00000500 02160084 0000FC00 08F1848E 3 0EF6E98A 00000001 0EF6
E98A 0 2916 6192 0 0 0 0 0 16
BUG4382 + 25C4EF46 01EDC243 01D57A6F 01D4E739 25CCBF28
BUG4382 + 01D4C4C9 01D4B228 01D47C58 011E3D8A

TIM**** 11:56 13/4/2018 CPU 0

BUG4382
BUG4382 : 0EF52E38 00000500 02160084 0000FC82 08F184F3 3 0EFF8558 00000001 0EFF
8558 0 2972 2792 0 0 0 0 0 16
BUG4382 + 25C4EF46 01EDC243 01D57A6F 01D4E739 25CCBF28
BUG4382 + 01D4C4C9 01D4B228 01D47C58 011E3D8A



The error definition is:
BUG4382
Procedure BCSTO. Invalid TN found in TERMINAL. *CRPTR)

Severity: Minor

When I stat the TN of the IP set, it is unregistered.

A ping command in the PBX to the set's IP in LD 117 is successful.
A ping command from my PC fails.
Disconnecting the network cable from the phone and reconnecting it, seems to bring the phone back online.

The BUG4382 error definition isn't very descriptive for me to find out why this is happening. It says it is minor, but if it disconnects the phone, it isn't minor in my opinion. Has anyone else received these errors and were you able to resolve them?

Thank you.



[AvayaHE]

Check sscommonlog on signaling server in /var/log/nortel
Check TPS on Signaling Server is running
OVL 117 check stat serv



[SherWat]

LD 117 Stat Serv shows all links up

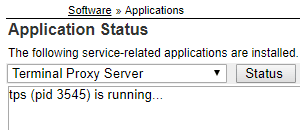

TPS is running

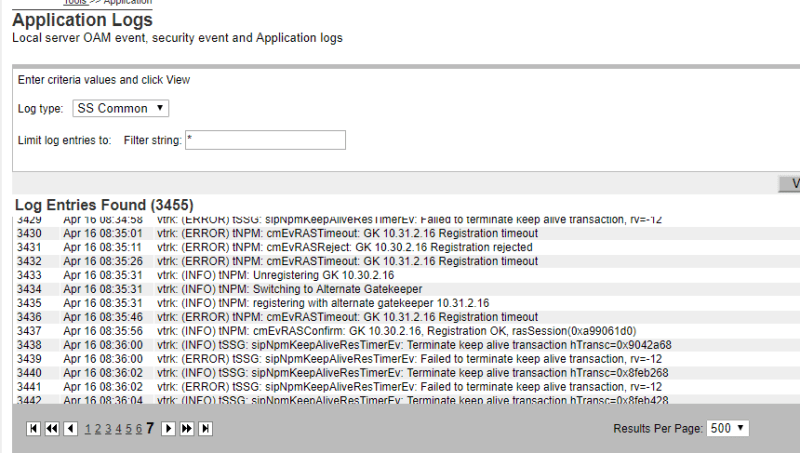

The sscommonlog shown below has a lot of these failed to terminate keep alive transactions.....not sure if this is normal or not.

Thanks.



[AvayaHE]

Looks as Gatekeeper unstable
If you can i would restart GK in NRS first and check logs again



[SherWat]

Would restarting impact service for digital sets or just IP sets? We have both.



[AvayaHE]

Restart GK has no influenz if you system is running traditional trunks
Can you make internal calls ? Digital to IP ?
IP to IP ? Digital to Digital different cabinets ?
Check in overlay 117 ip phone state => stat iset all
and => stat serv
I would check MGC Channels in ovl 32 too
exampel "stat 0 0 11" enter for MGC 0/0
Check all this first
Before restart GK
Sorry , this CRPTR Messages never see before
