Branch Session Manager link to LSP down (avaya-lsp-fs)

[OlegPowerC]

Hello!
I try to configure LSP (CM,BSM and utility server) like description ont Avaya Documents.
H.323 phones ang G430 gateway work good (re registration on the LSP CM, if I disconnect server with main CM).
But BSM do not connecte to LSP CM.
Session Manager Entity Link Connection status show "avaya-lsp-fs" DOWN - "500 Server internal error, Destination Unreachible".
In the traceSM I see OPTION message from BSM to LSP CM and no any response.
What I try to configure BSM link:
Make BSM SIP entity.
In the SM->Branch session manager, add BSM.
Add Entity link from BSM to Main CM
I attach screenshots
Thanks!



[OlegPowerC]

Hello.
I read documentation and see:
I must add BSM to nodes-name
But I do not found where it is use (signaling-group).
Now I add signaling-group 2, where I use BSM as the far end.
I change signaling group in the SIP trunk, from1 to 2 only in the LSP CM.
And it is work.
But if I use save translation all command, I get old situation.
Where and how I must use BSM node-name?
Thanks!



[kyle555]

Don't build a new sig or trunk for it.

Show your "local host name resolution" in "Network Configuration" in "Session Manager" from SMGR - you should have a pretend FQDN of "my.pbx" for example and have SM resolve "my.pbx" to the IP of your main CM and the second choice should be your LSP.

Then, on the 2nd page of your IP signaling groups, use the default of "enable on survivable processors".

By the nature of having a LSP with a BSM, some of the background config is automagic insofar as CM knows the BSM is on the same server.



[OlegPowerC]

Thanks!
I will try



[OlegPowerC]

Hello Friends!

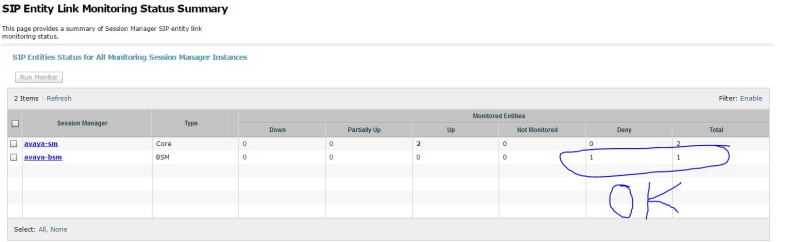

BSM work OK but I have new problem!
If I do not configure domain name at the BSM, all work OK.

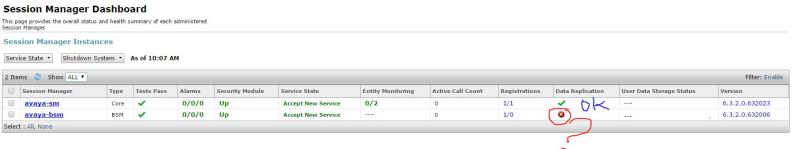

But I get red cross in the "Data Replication" column at the Session Manager Dashboard.

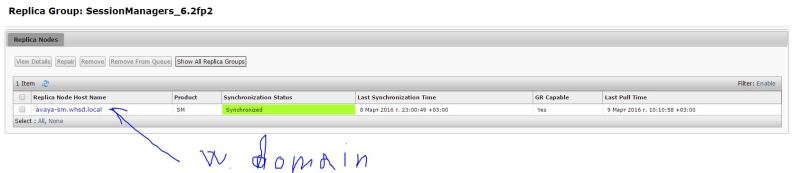

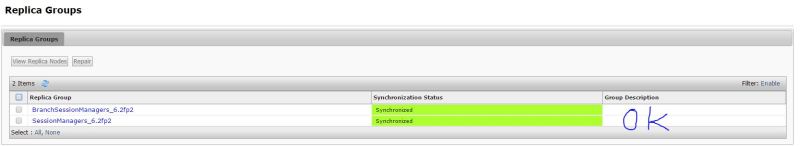

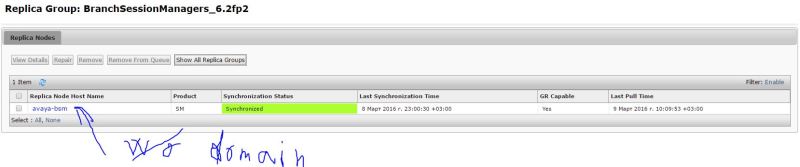

But in the Replica Group I see green Synchronized status.

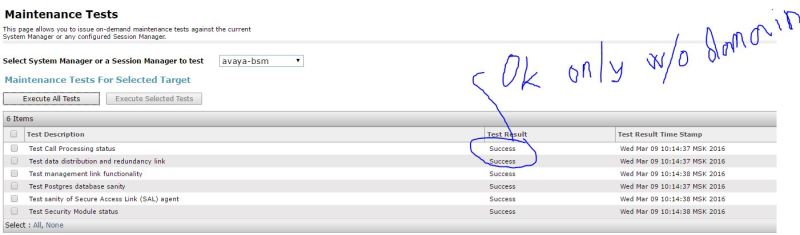

If I configure domain name, replication is OK, but two primary test is fail (Test Call Processing status and Test data distribution and redundancy link).
In my DNS I add A record for each avaya VM and LSP.
Thanks!



[OlegPowerC]

Pic 1



[OlegPowerC]

Hello!
I found good release of session manager 6.3.8
Now all work
