Avaya Merlin Magix

[Guy Gudhart]

Does anyone know where I can get a Programing cable for a Avaya Merlin Magix? It goes from my comm port on my computer to the Admin Port on my processor RJ45 port ?​



[pkaloger]

Does anyone know where I can get a Programing cable for a Avaya Merlin Magix? It goes from my comm port on my computer to the Admin Port on my processor RJ45 port ?​



[pkaloger]

You need a 9 to 25 pin cable and a 355 AF adapter. I think this will work.



[LkEErie]

Look around. You can make your own 355 style cable or buy a 355AF. The 355AF is a 25-pin to 8 pin female jack. Here, Youtube is your friend.

LkEErie



[TouchToneTommy]

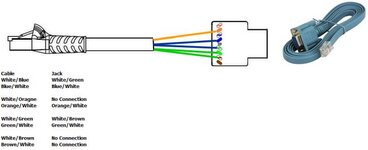

If you have a "standard" Cisco Console cable, you can use a Cat-5 jack and a Cat-5 patch cord to make an adapter to change the pinout to match Avaya.



[Guy Gudhart]

You need a 9 to 25 pin cable and a 355 AF adapter. I think this will work.

Iwill givet a try I ordered the 355AF. Thank you!
