Avaya IP office and Analog Trunks 1

[Opie the Phoneman]

Hello Wiring Closet,

I am trying to find the specifications for analog trunks that interface with an analog trunk card V2 (700503164) or a Combo card (700504556). Where can I find the documentation that states how many volts both idle and seized, mA of current, etc? I just want to have concrete documentation from Avaya about the specifications for an analog trunk.

Thanks for your help

Opie the phone man.



[Westi]

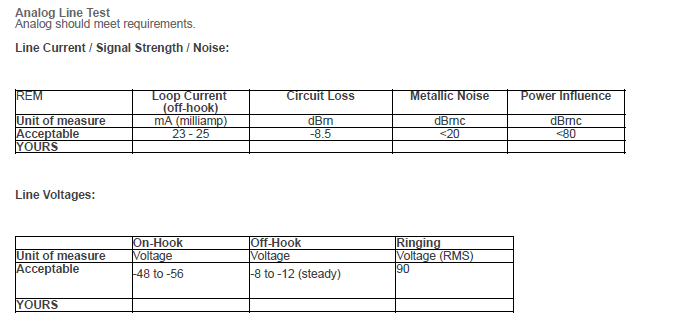

This was found in the SOLN266683 document that Avaya brought out due to echo issues
can be found here

https://support.avaya.com/knowledge/public/solutions/SOLN266683.html

Joe
FHandw, ACSS (SME)

Remembering intrigrant 2019
