ASBCE w/NexVortex SIP Trunk Help

Status
Not open for further replies.

dsm600rr

IS-IT--Management
Nov 17, 2015
1,444
US
Hello all,

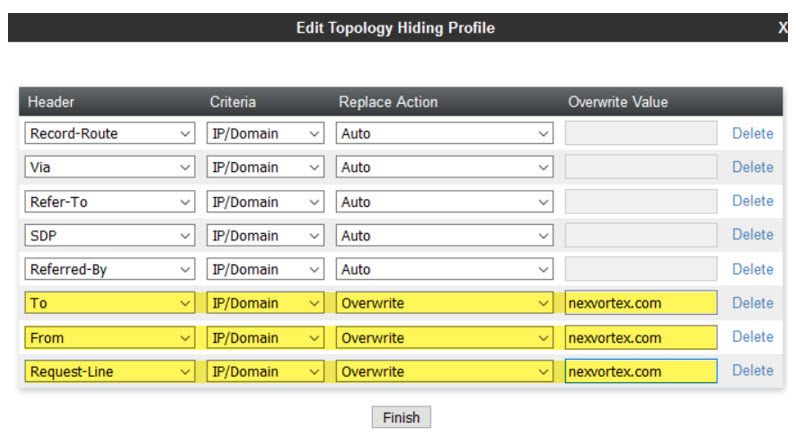

I have been following documentation on testing an ASCBE with a NexVortex SIP Trunk. Below is what I have done following:

"Application Notes for Configuring Nexvortex SIP Trunk with Avaya Aura® Communication Manager 8.1, Avaya Aura® Session Manager 8.1 and Avaya Session Border Controller for Enterprise 8.1 – Issue 1.0"

Anyway, looking for some guidance on where to go from here or what I should modify.

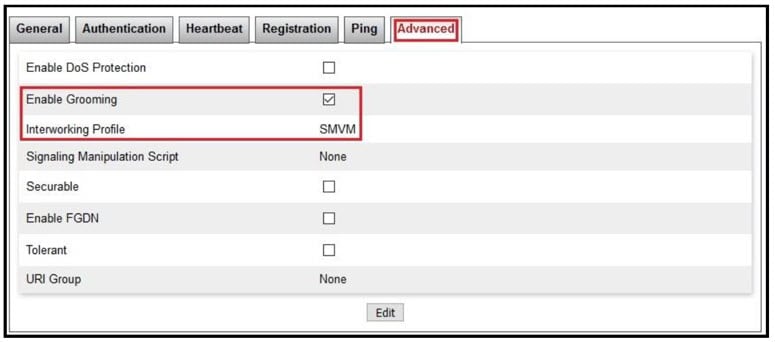

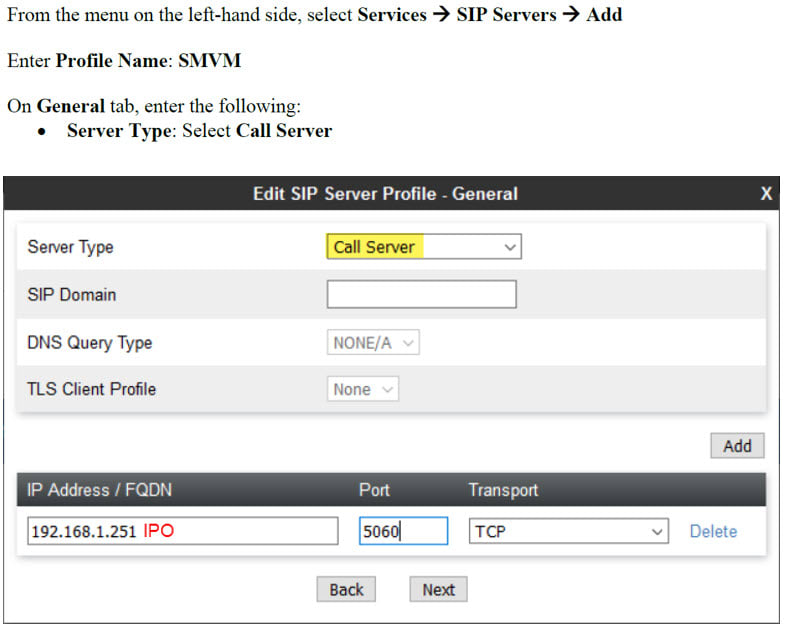

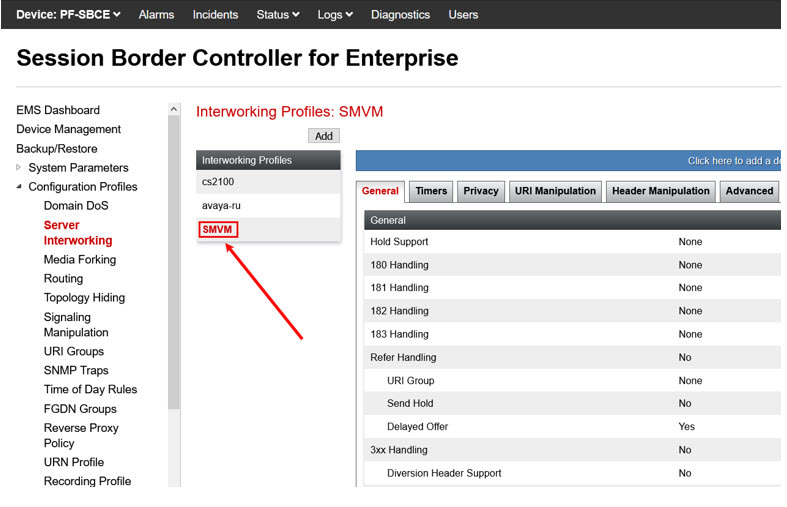

- "SMVM" is just a clone of "avaya-ru" - No modifications:

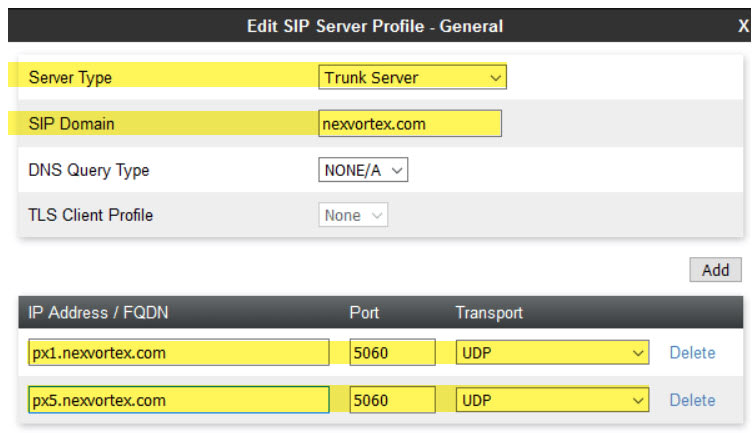

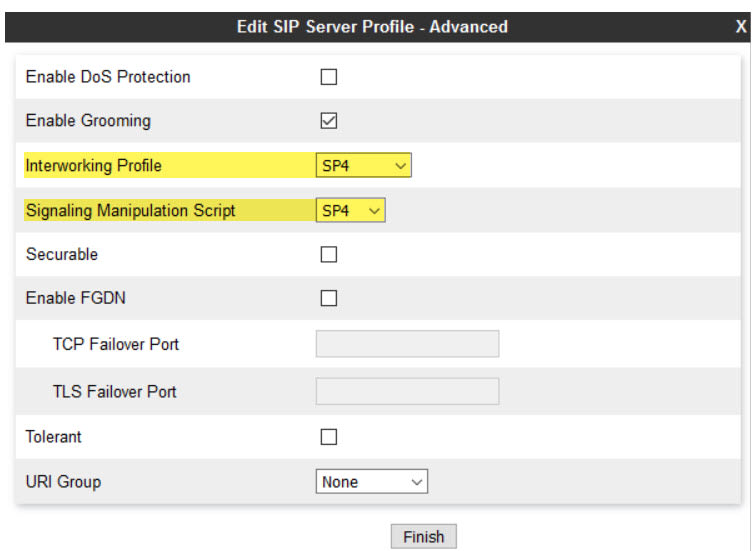

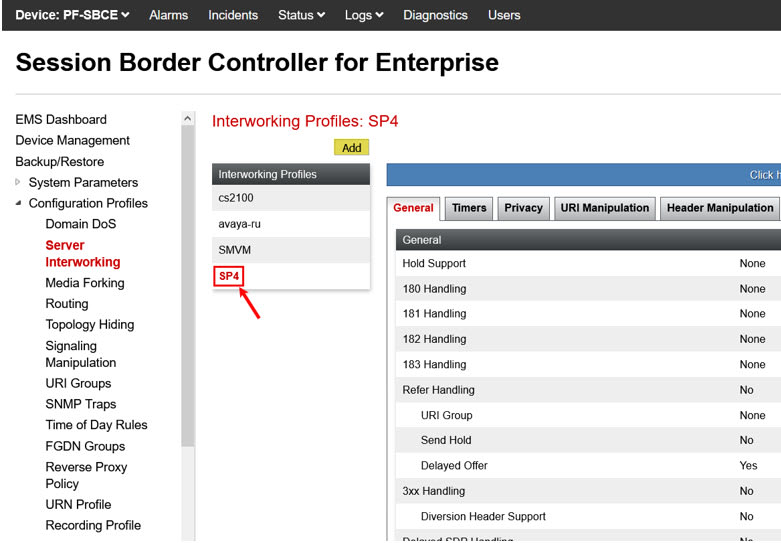

- "SP4" is all default settings:





































- Clone of Default, no changes made:

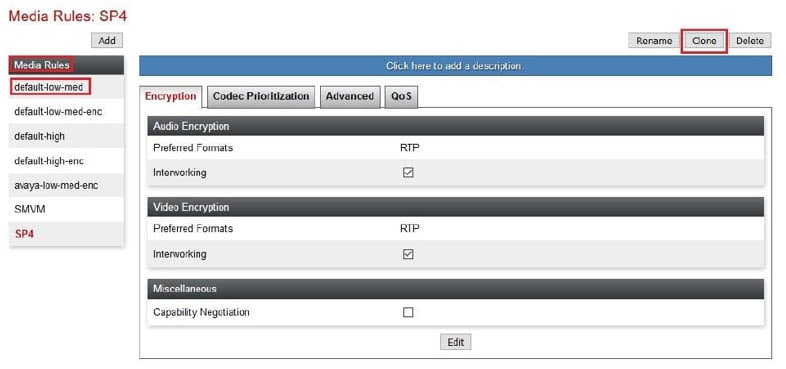

- Clone of "default-low-med" rule:


















































ACSS
