ASBCE Config Review for SIP Trunk 2

[dsm600rr]

Hello all,

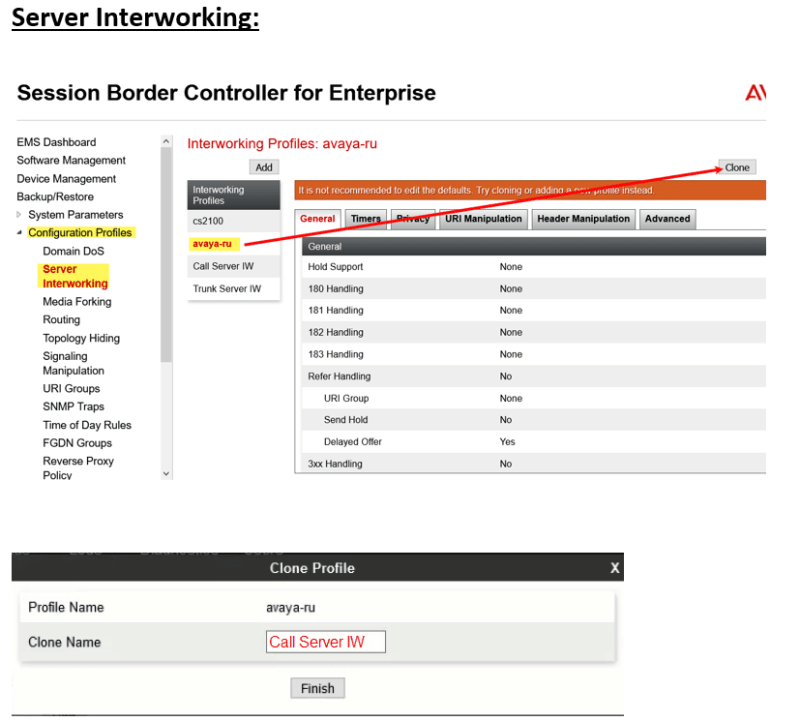

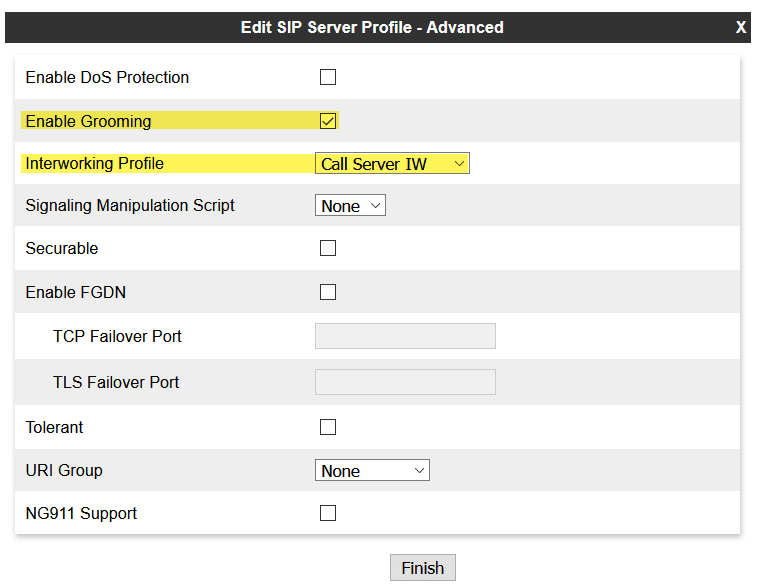

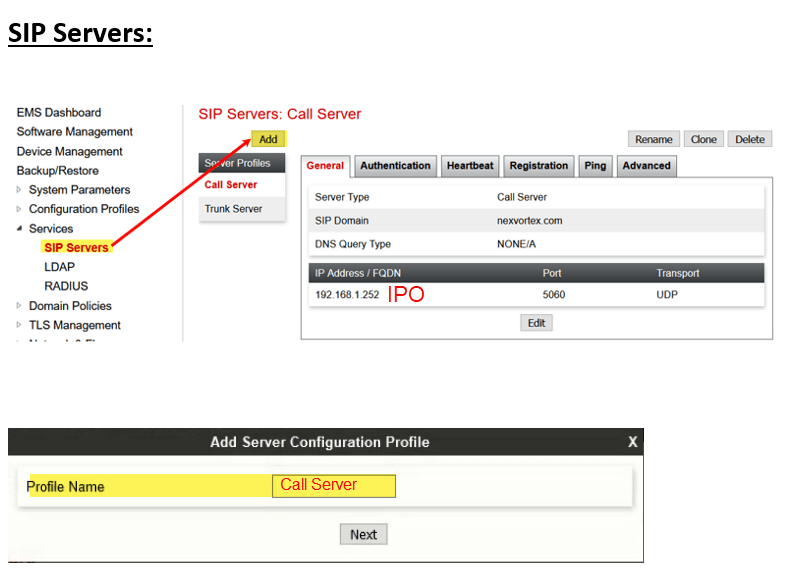

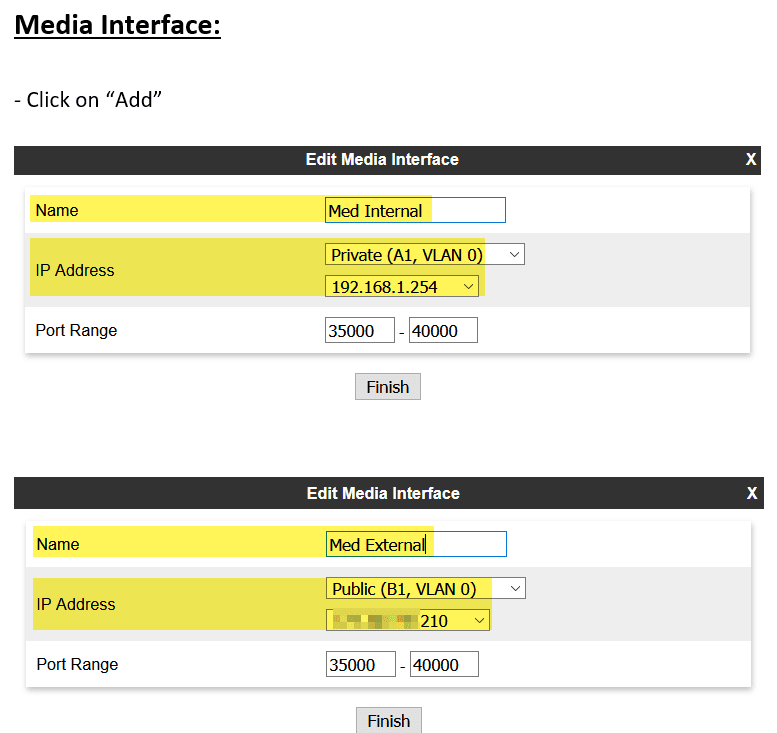

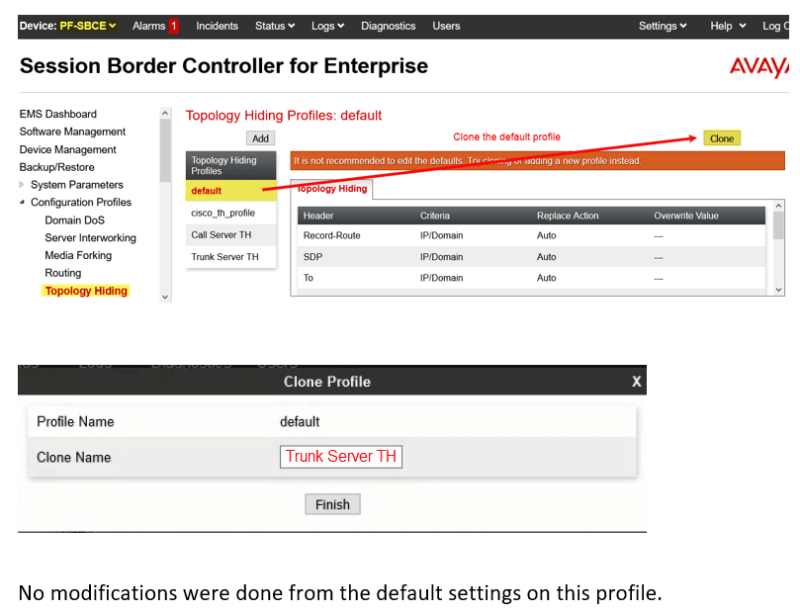

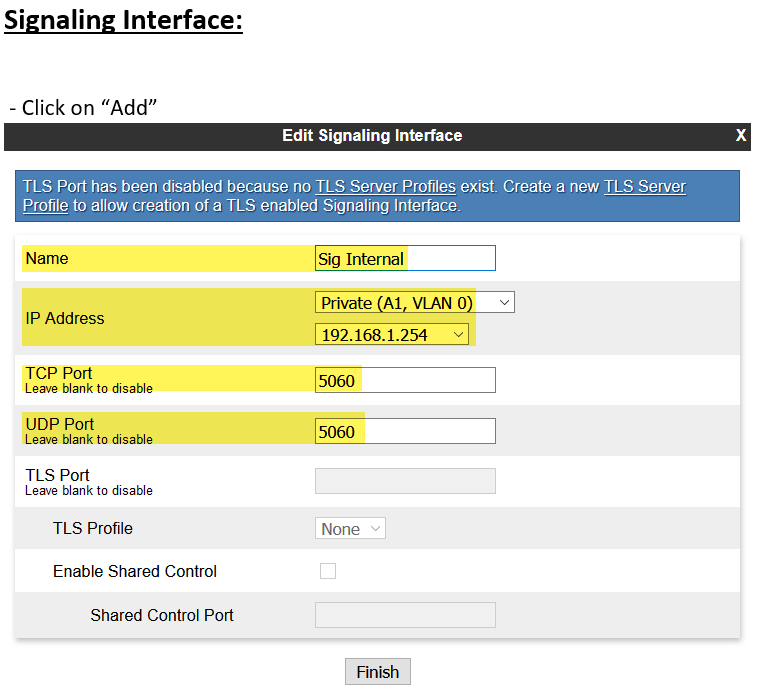

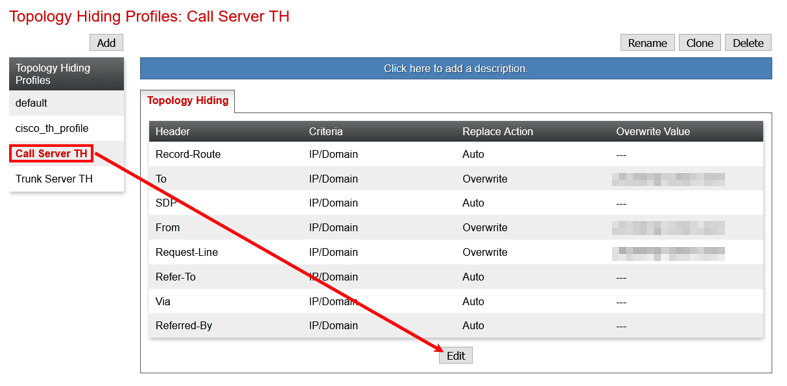

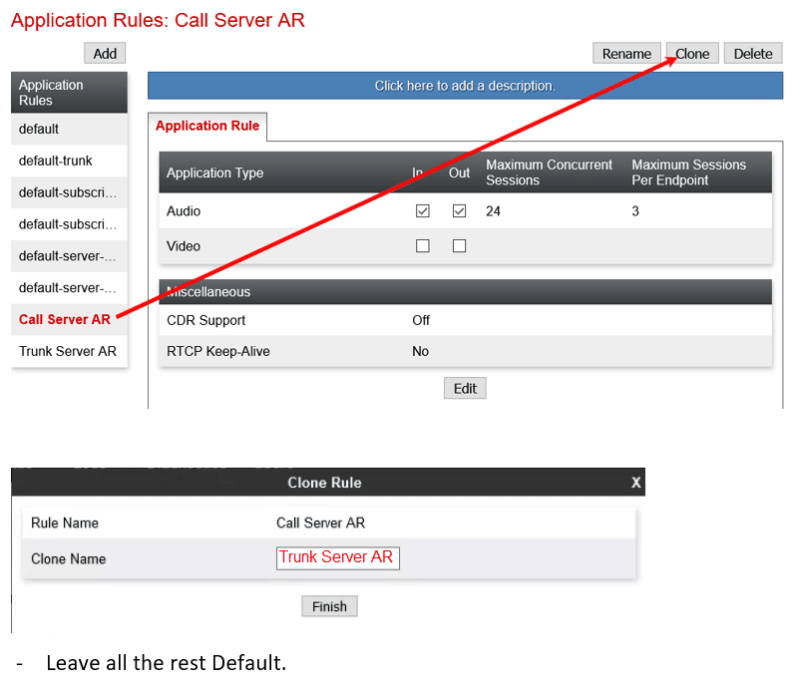

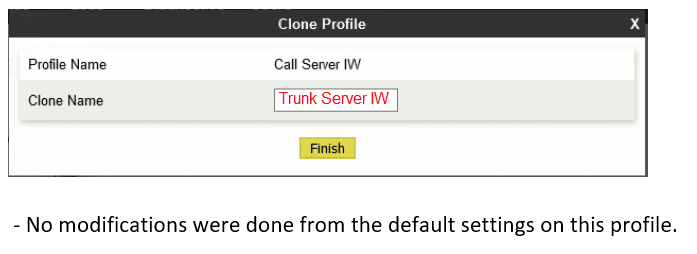

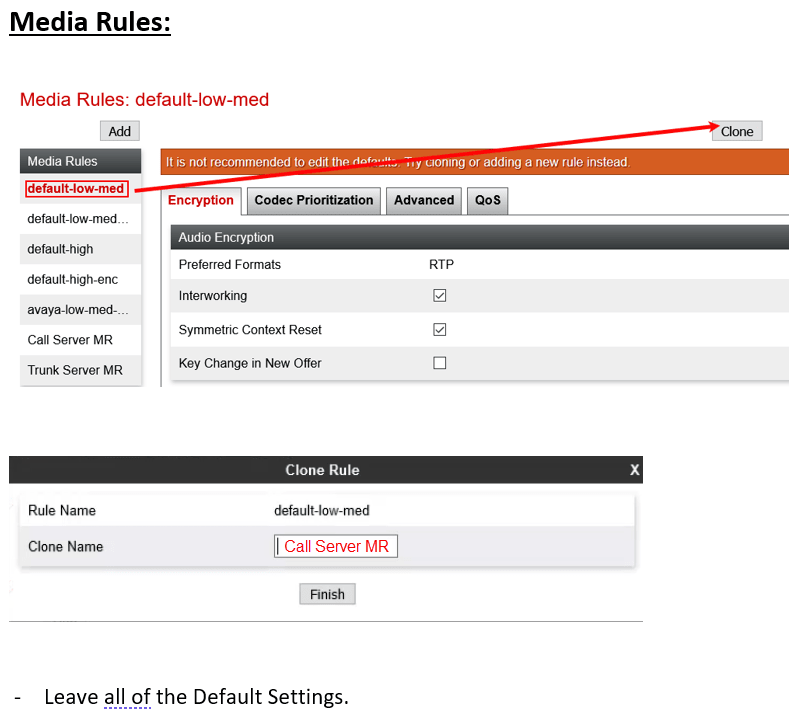

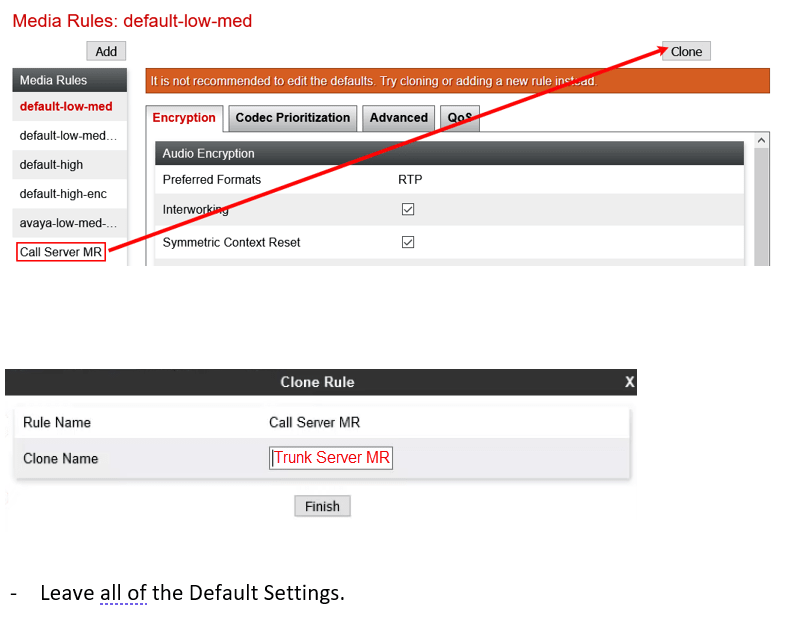

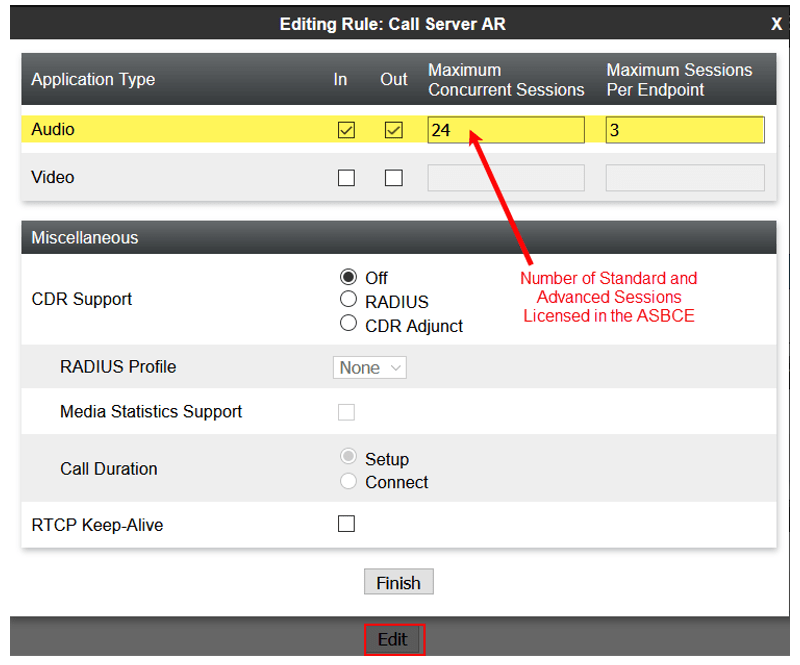

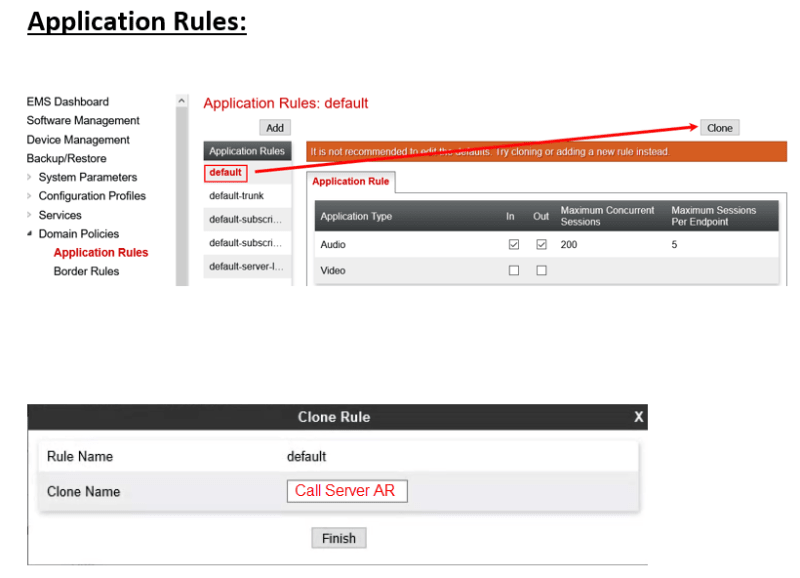

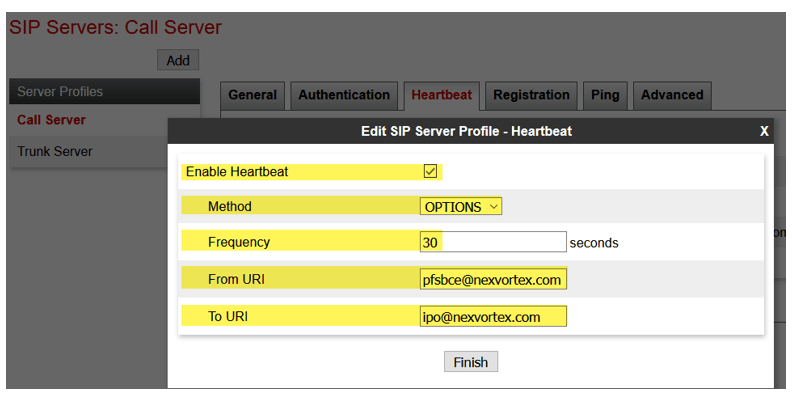

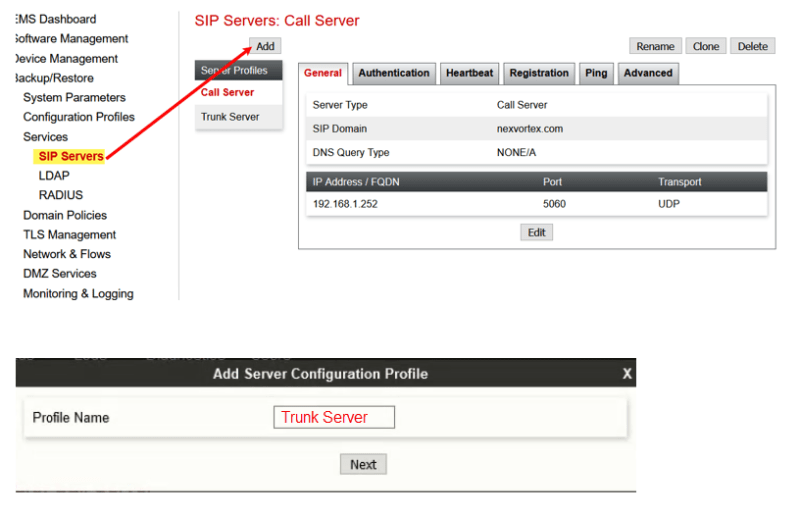

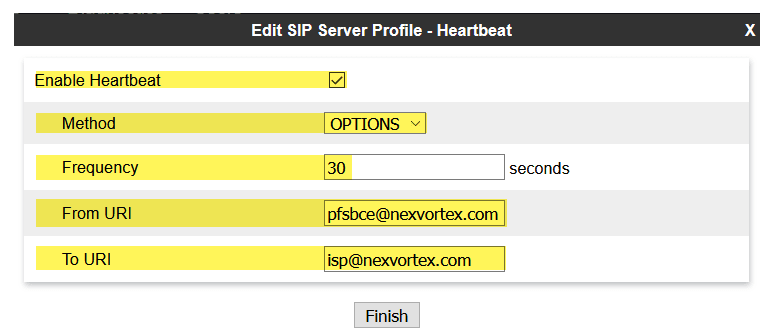

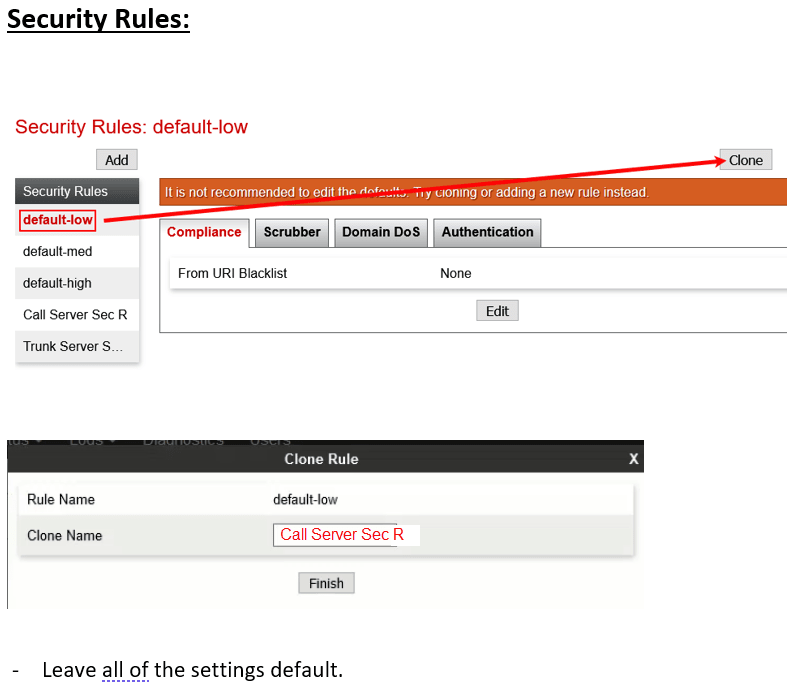

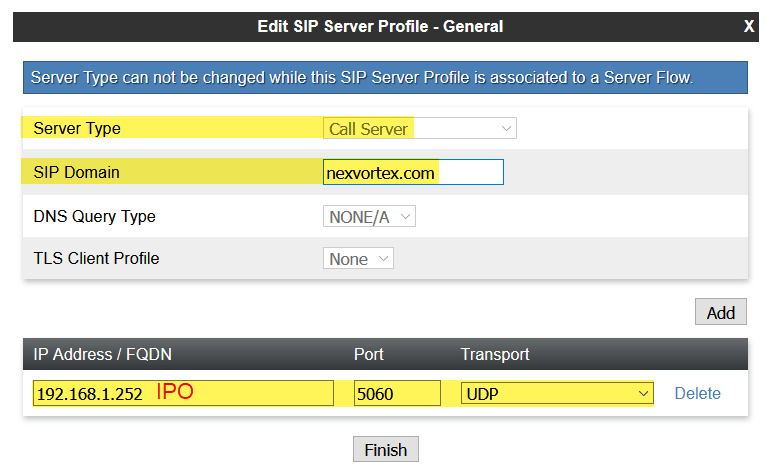

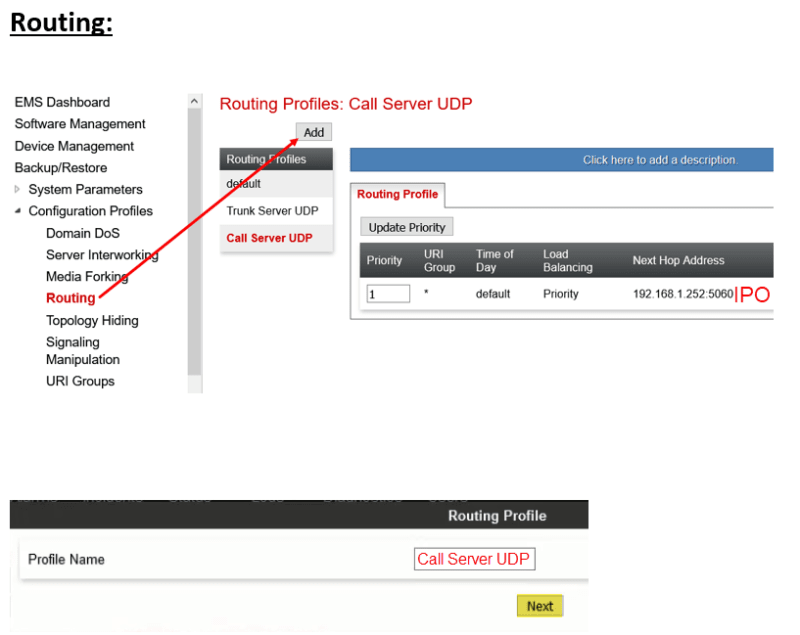

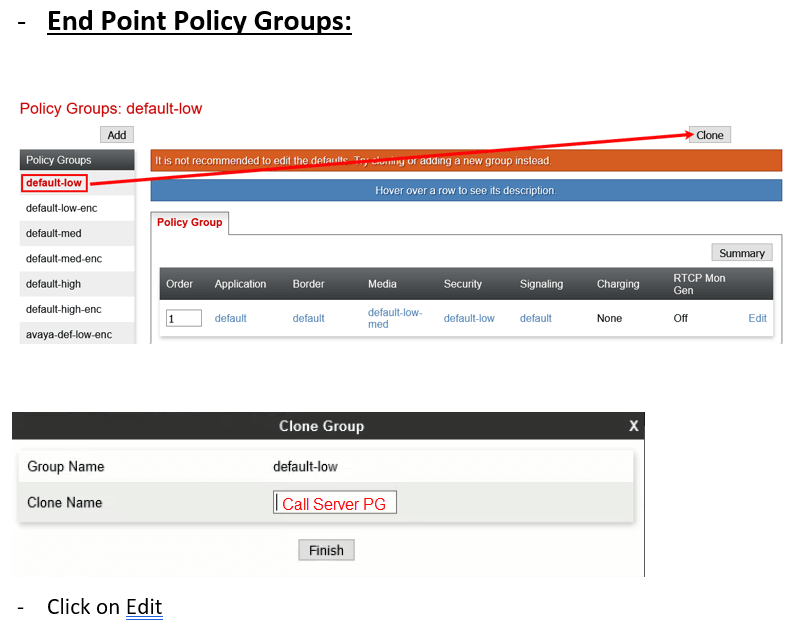

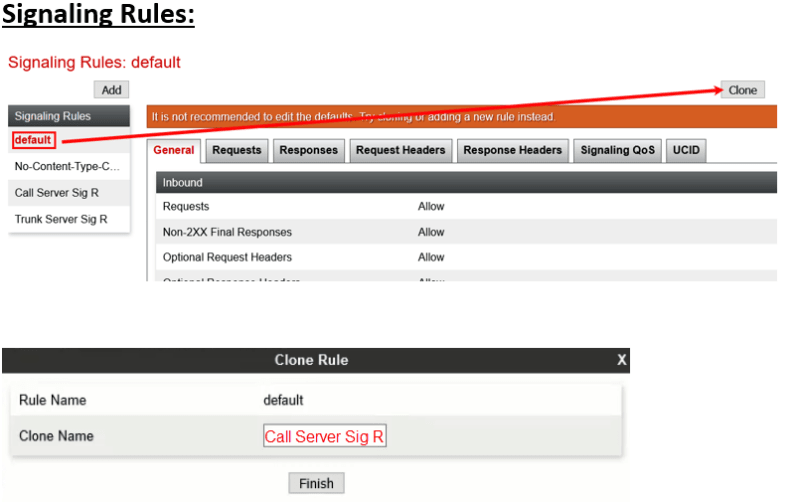

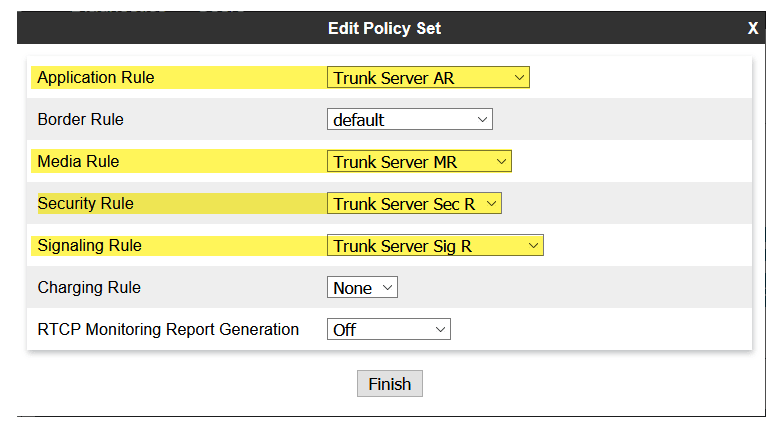

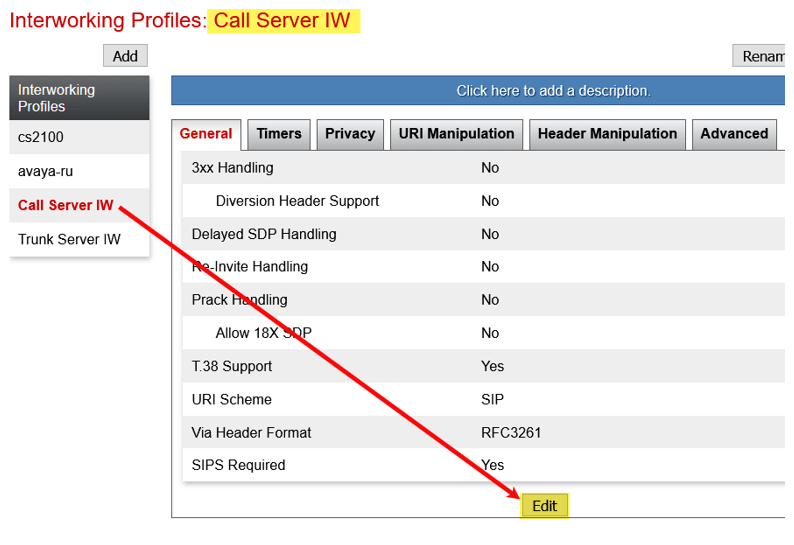

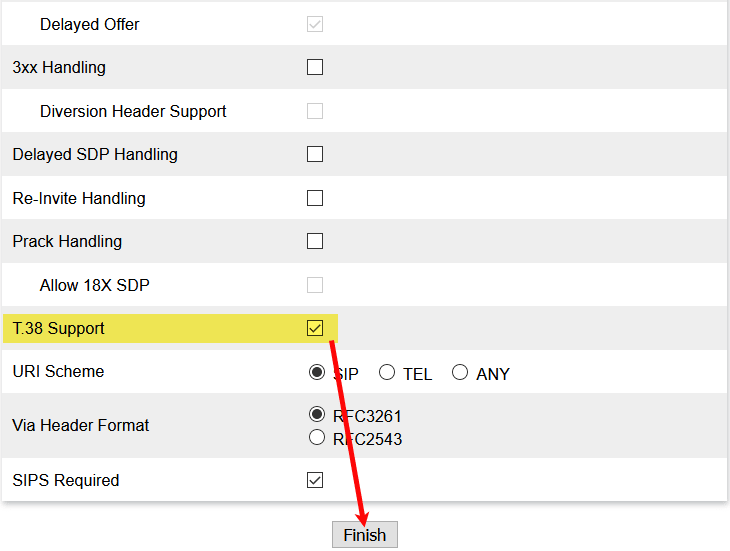

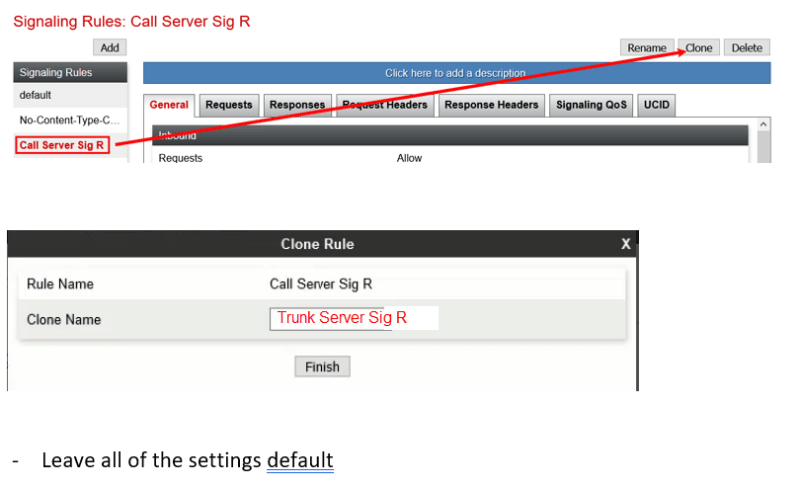

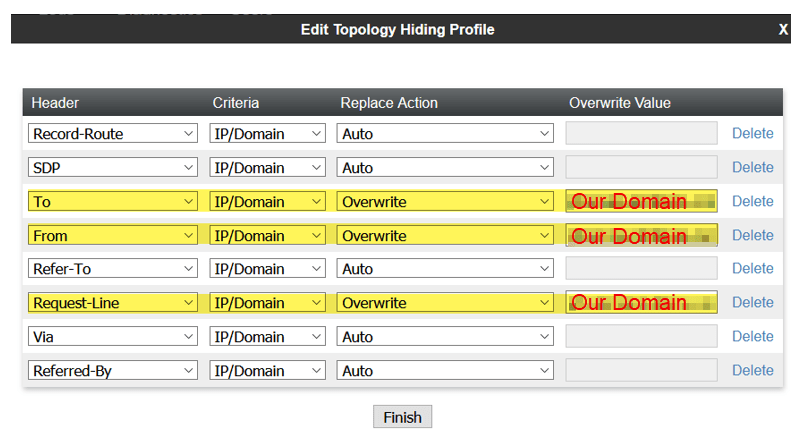

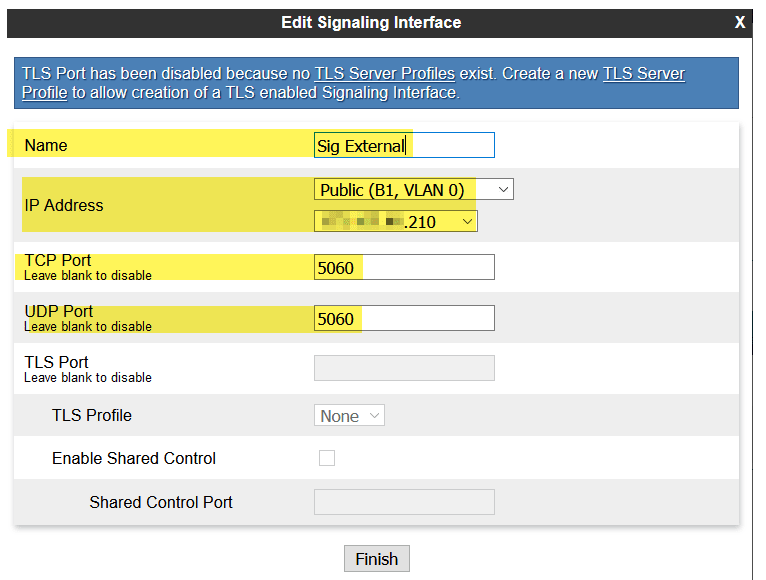

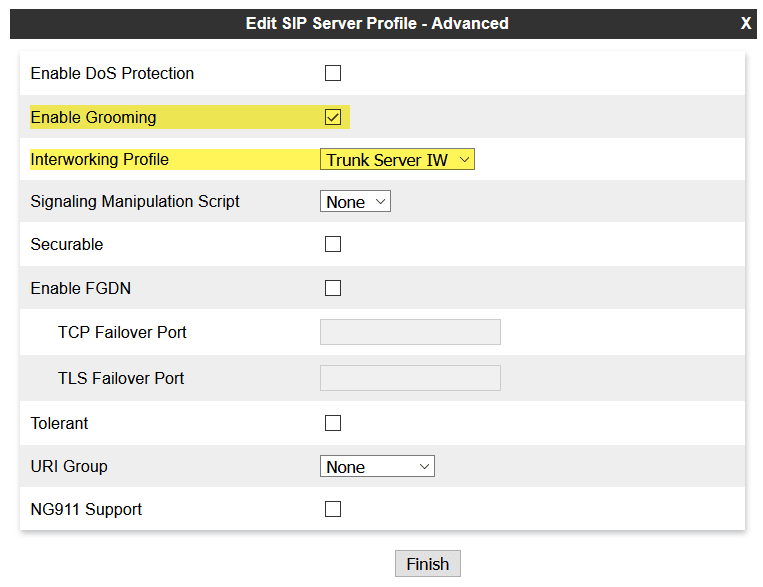

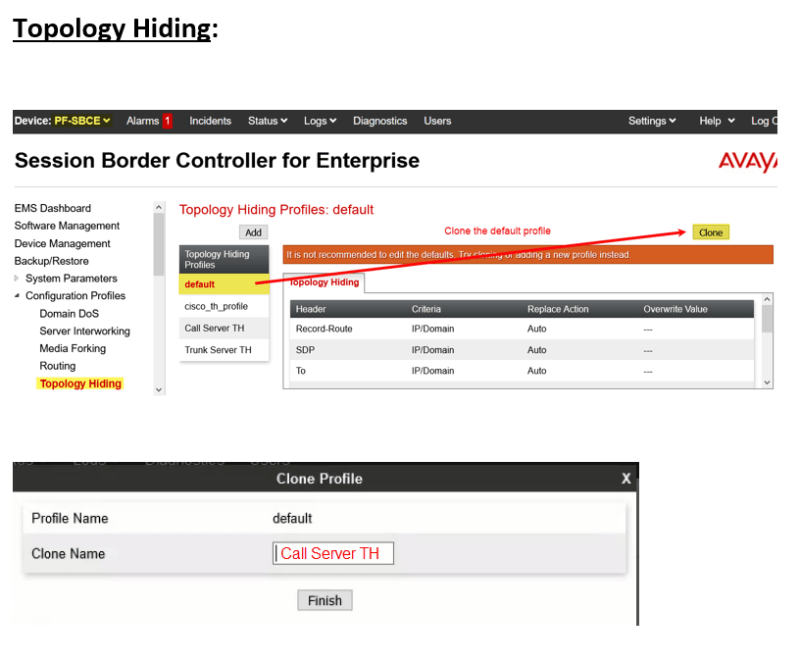

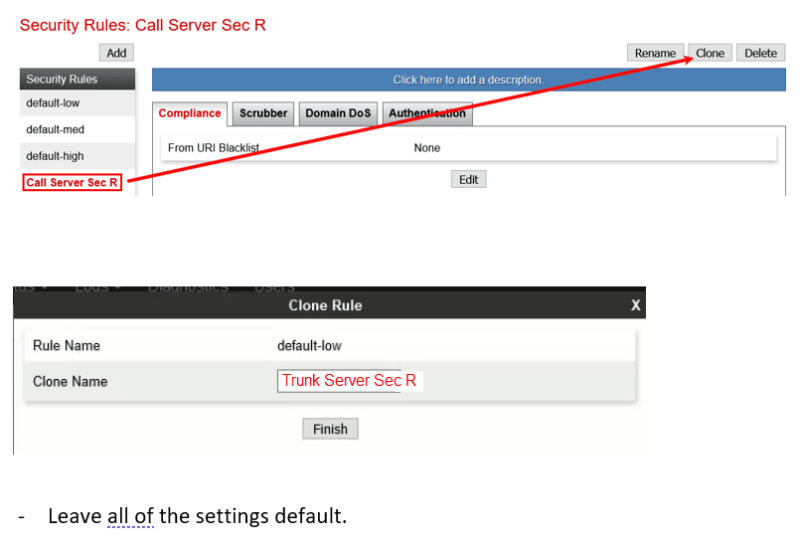

Asking the experts to review my ASBCE Programming for any suggestions or changes. This is my first time using an ASBCE so I am sure it could use some tweaking.

Currently, Inbound and Outbound Calls work - so there is that.

ACSS



[derfloh]

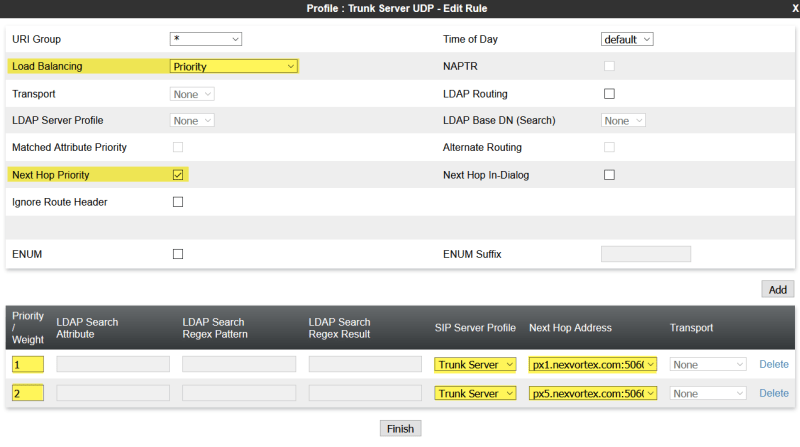

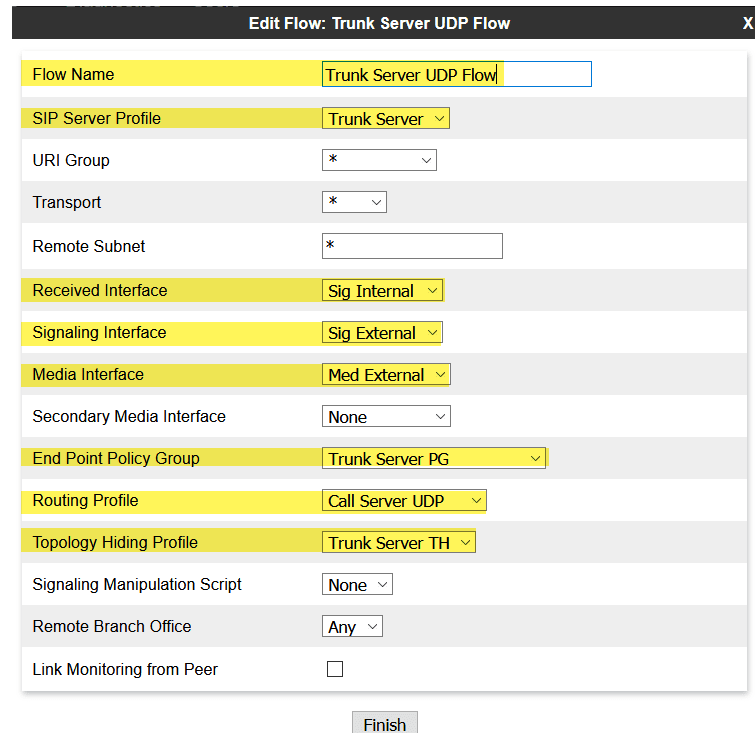

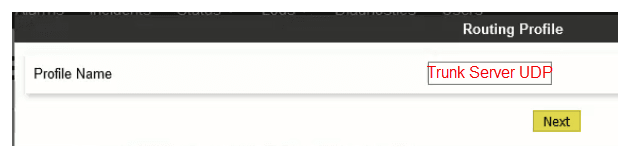

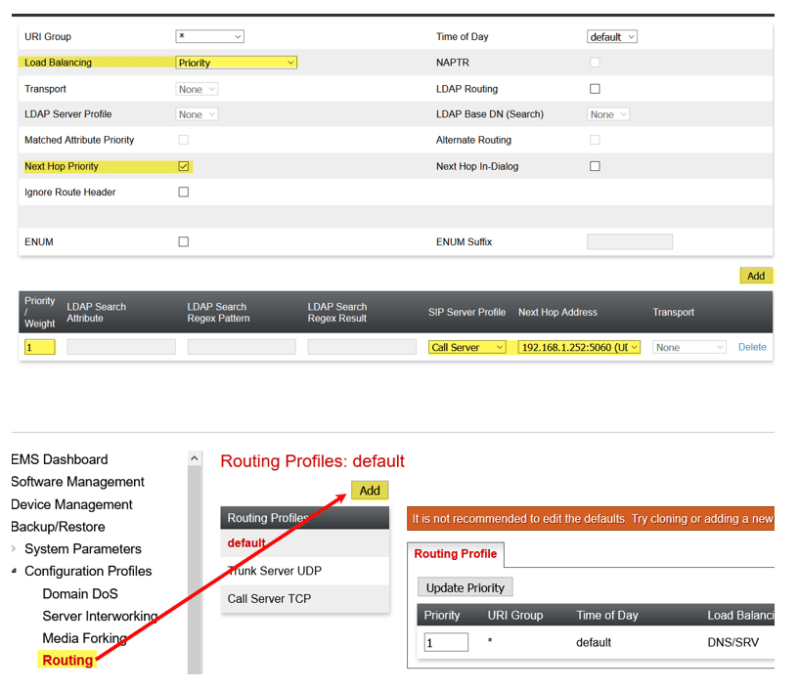

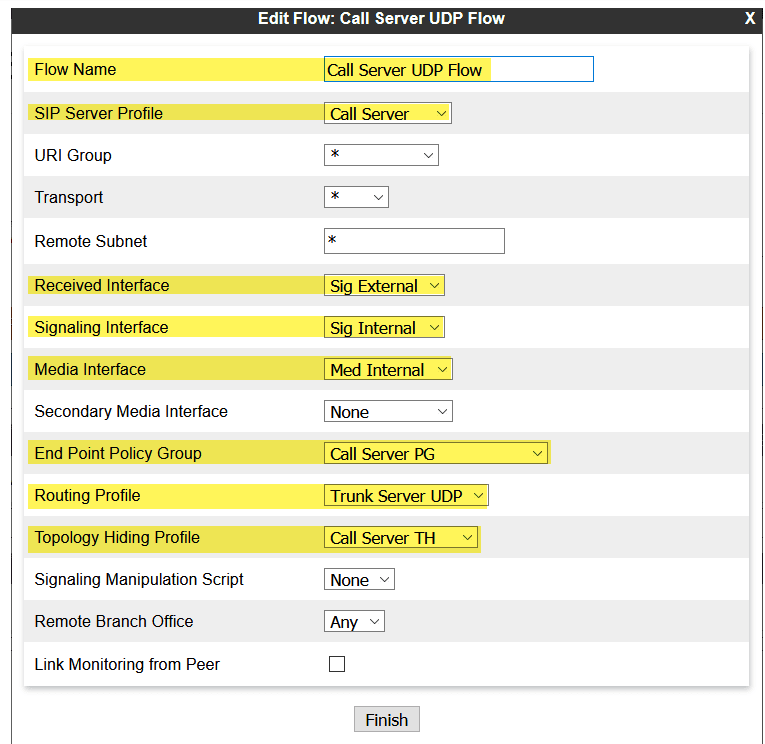

In your Routing profile Trunk Server UDP you should add the second trunk server with priority 2.

Everything else looks good for me.

IP Office remote service
IP Office certificate check
CLI based call blocking
SCN fallback over PSTN



[dsm600rr]

derfloh: Thank you for reviewing and the suggestion.

ACSS



[AACon]

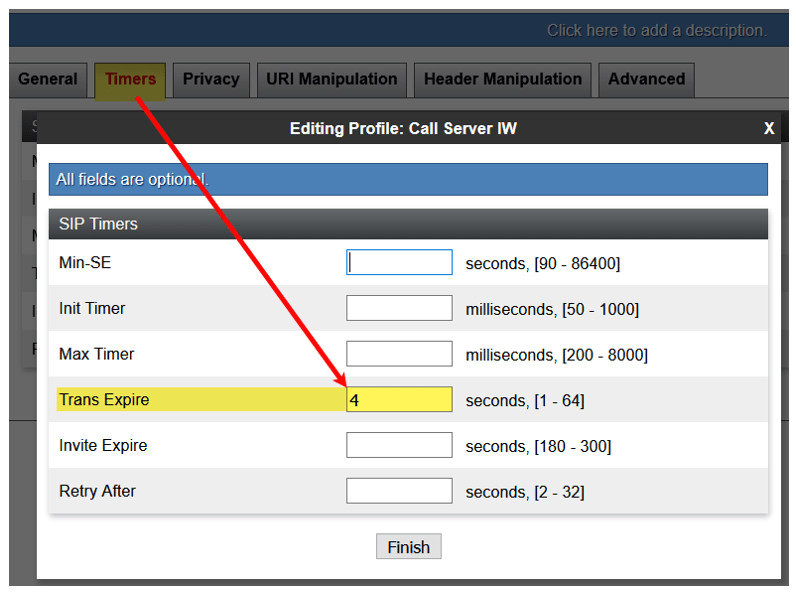

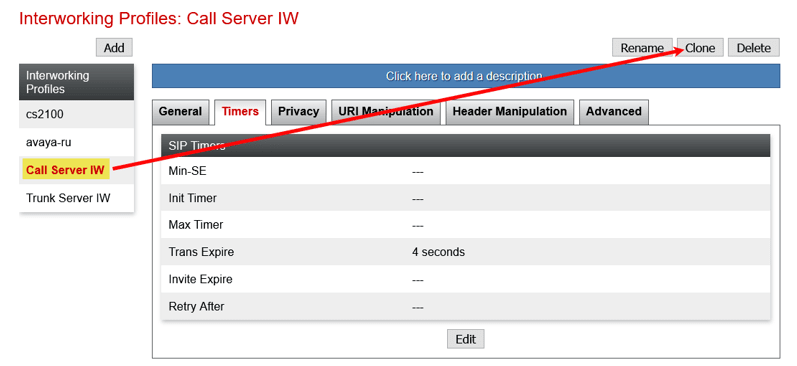

It all looks good from what I know. What I'm curious about is the trans expire? What is that used for? Pardon my ignorance.

-Austin
I used to be an ACE. Now I'm just an Arse.



[dsm600rr]

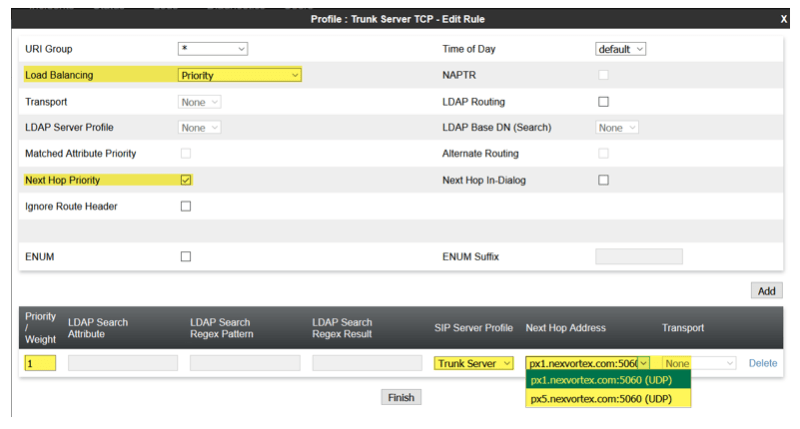

derfloh: Like this?

ACSS



[dsm600rr]

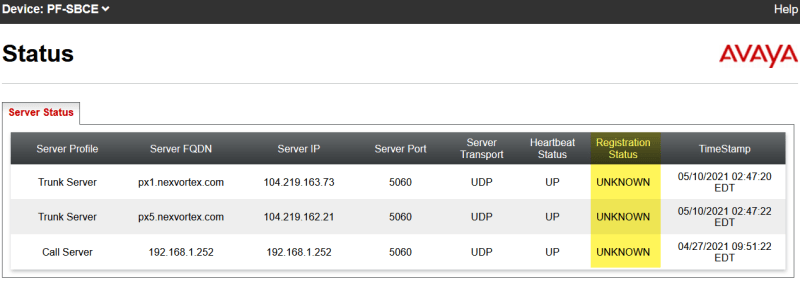

Any Idea why the SBC Registration Status is showing unknown?

ACSS



[derfloh]

That's because you probably don't have to register but are only recognized by IP and SIP domain.

IP Office remote service
IP Office certificate check
CLI based call blocking
SCN fallback over PSTN



[dsm600rr]

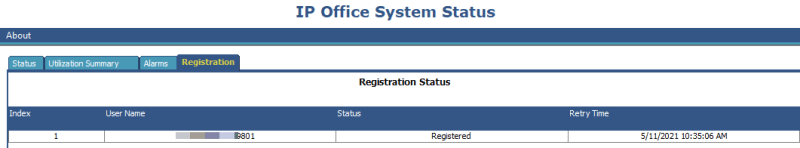

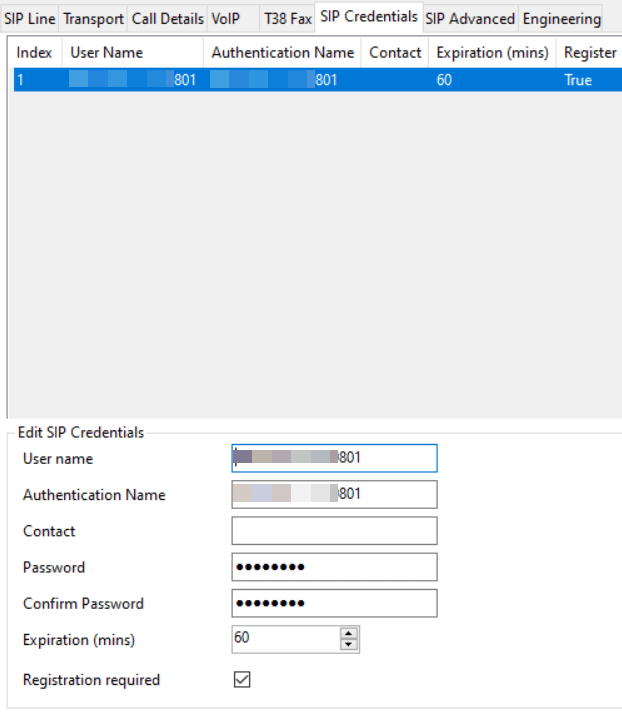

derfloh: I have my registration on the IPO:

ACSS



[dsm600rr]

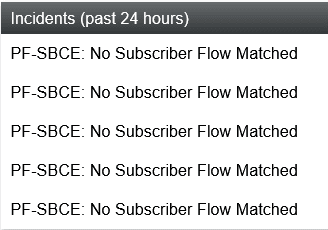

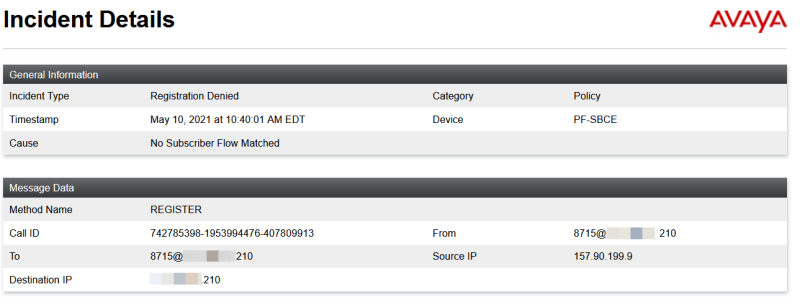

Any Idea what these errors are from?

ACSS



[derfloh]

Probably a registration trial of a potential hacker.

IP Office remote service
IP Office certificate check
CLI based call blocking
SCN fallback over PSTN



[dsm600rr]

derfloh: Anything more I can do to lock it down or is that just something that will happen?

ACSS



[JayNEC]

It's something that will just happen. Anything that's internet connected will constantly have people/bots probing it.
Have good passwords on your SIP stations, frequently I setup URI groups to only allow specific needed SIP extensions through as well.
