6940 line buttons different ringtones

[meneerB]

mivb 8, 6940 with preferably more line buttons.

goal: how to identify an emergency call on a 6940 without looking to the phone.
our security department has this phone for normal use.
once or twice a week, the emergency number is dialed from within the hospital.
because of all current equipment on the desks (too much), I would like to minimize the number of phones.
so preferably 2 phones (as a backup of each other) with multiple numbers.
And recognize important calls by tone

any suggestions would be apriciated.



[Valamagules]

You can only set two different ring tones on the 69XX phones, one for internal calls and the other for external calls received.

I would suggest setting up a loud ringer (SIP device), and set a multi call key on the 2 phones.
Use this setup for the emergency line. When someone calls the emergency number, it also rings the ringer hence alerting the security.


Clever men learns what Wise men shares!



[meneerB]

great tip, I'll do that.

for a second department in a large room, I directly ordered the Algo 8180. Just received it.
I was a bit stunned of the broad range of options inside, for a 'SIP ringer'.
I'll test it next week.



[Valamagules]

Yes we use Algo 8180 all the time, it can be configured as multicast to other algos as well as used as a pager & ringer.
Neat device indeed.

Clever men learns what Wise men shares!



[meneerB]

can you elaborate a bit more about the multicast part?

You mean that you use it as a PA System alternative?
just configure 1 Algo, and 'repeat' the voice / ringing signal(?) to the other Algo's?

Did you configure multicast on your switches?



[Billz66]

when we used algo as multicast thats what we did
add SIP extension for algo
setup multicasting on the switches so 1st algo can broadcast to additional

they have a multicast guide on their website

https://www.algosolutions.com/algo-provisioning-guide/

If I never did anything I'd never done before , I'd never do anything.....



[Valamagules]

Billz66 covers pretty much what is required.
One setting that is required to be enabled is the Multicast option on the Algo itself.



Clever men learns what Wise men shares!



[meneerB]

okay thanks for that Billz66 and Valamagules.

Today, I started to configure the Algo.
We used this Mitel config guide.

Registration is successful, but the phone won't ring if I dial 1094.

When I dial the Algo, the phone is redirected to the 'phone is not available' RAD text.
We even set all suggested SIP capability settings and COS in a new entry. But no luck.

I think I'll call Algosolutions, because I can't find usefull logging for this issue within the Algo.

any tips?



[Billz66]

is algo in same network as the pabx ?

what is pabx address

can you show screenshots of

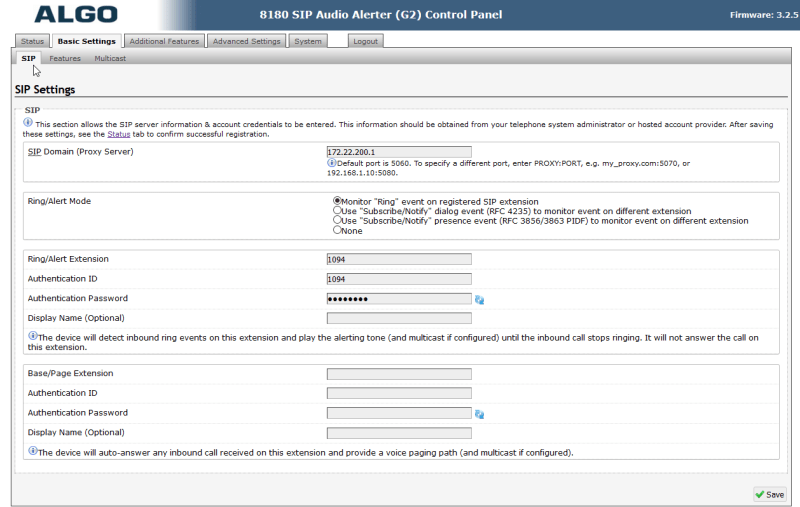

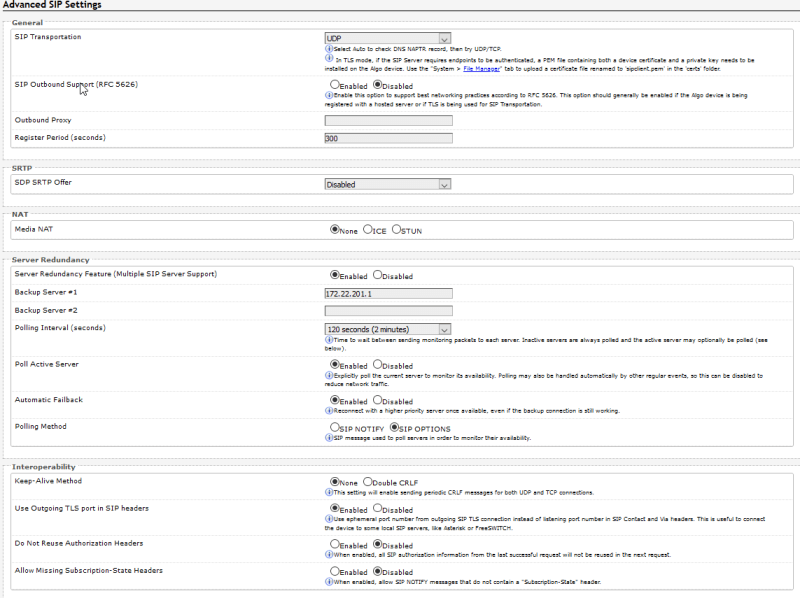

basic settings SIPadvanced/advanced sip tab


If I never did anything I'd never done before , I'd never do anything.....



[meneerB]

Billz66,

The Algo is not in the same subnet, but is in our LAN.

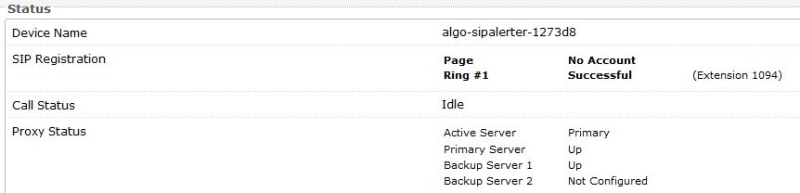

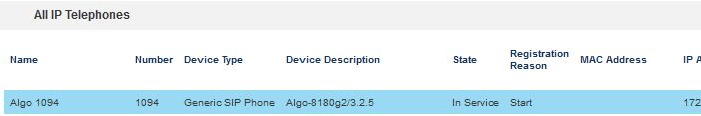

As you can see, it registered (if I change the password, Ring #1 instantly changes to 'Rejected by server')



[Valamagules]

Mosy possibly a port issue, check to see if you have port 5060 open between the two network segments.

Clever men learns what Wise men shares!



[meneerB]

maintenance command:

SIP REGISTRAR CONTACTS 1094
Registrar Entry(s)
--------------------
2705:0xd87c1 (0x28f91338) State[IN SERVICE:Completed] CEID[1:2] Accepting reg Agent:Algo-8180g2/3.2.5 Addr:sip:1094@172.22.200.1
Contact1: sip:1094@172.22.148.192:5060
Time Left:135 Expires:300 Priority:0 Port:5060 Transport:1


so, 5060 works?



[meneerB]

I just don't beleave it!
My password was 8 digits: 'Ring #1 Successful'
I changed it into 4: 'Ring #1 Successful', but now it works!
jeez...

thanks all!
